5
FUNCTIONS FOR RECEIVE

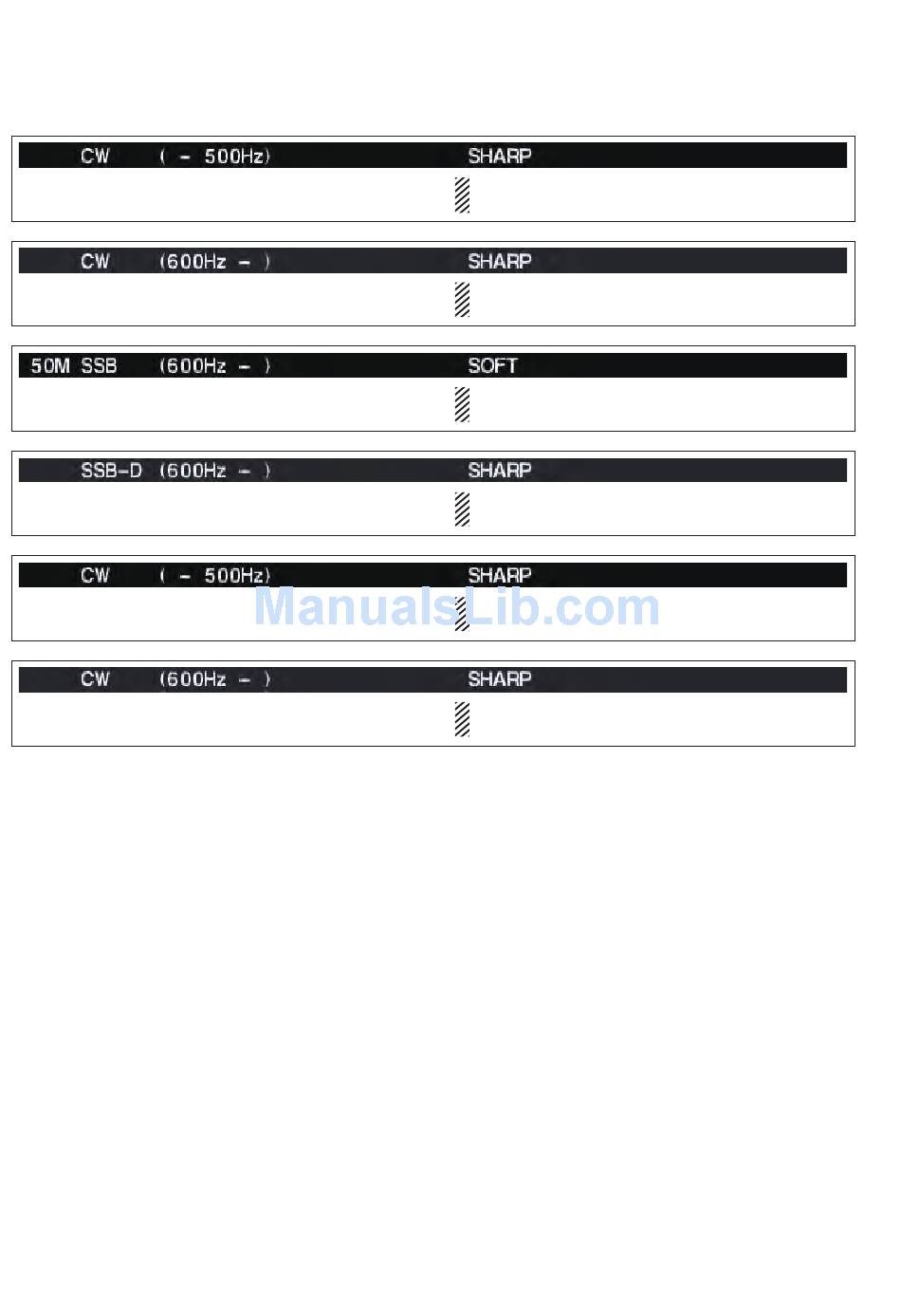

D Filter shape set mode (continued)
Select the filter shape for CW mode in HF bands.
Select the filter shape for CW mode in HF bands.
Select the filter shape for SSB mode in 50 MHz
band.
Select the filter shape for SSB data mode in 50 MHz
band.
Select the filter shape for CW mode in 50 MHz band.
Select the filter shape for CW mode in 50 MHz band.
The set filter shape is automatically used only
when the IF filter is set to 500 Hz or narrower.
The set filter shape is automatically used only
when the IF filter is set to 600 Hz or wider.
The set filter shape is automatically used only
when the IF filter is set to 600 Hz or wider.
The set filter shape is automatically used only
when the IF filter is set to 600 Hz or wider.
The set filter shape is automatically used only
when the IF filter is set to 500 Hz or narrower.
The set filter shape is automatically used only
when the IF filter is set to 600 Hz or wider.
5-16
