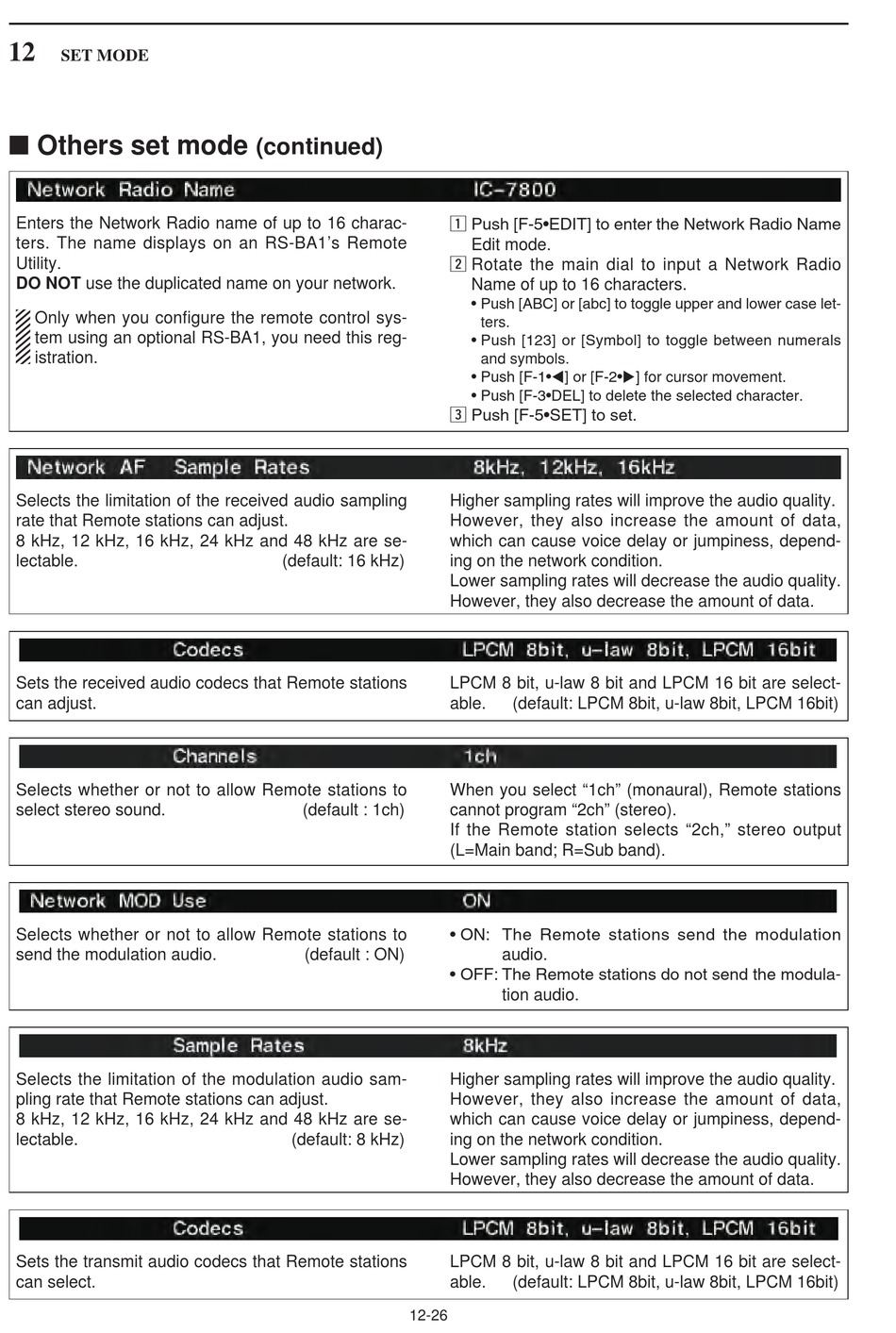

Icom IC-7800 Instruction Manual page 182

12
SET MODE
■ Others set mode
Enters the Network Radio name of up to 16 charac-
ters. The name displays on an RS-BA1's Remote
Utility.
DO NOT use the duplicated name on your network.
Only when you configure the remote control sys-
tem using an optional RS-BA1, you need this reg-
istration.
Selects the limitation of the received audio sampling
rate that Remote stations can adjust.
8 kHz, 12 kHz, 16 kHz, 24 kHz and 48 kHz are se-
lectable.
Sets the received audio codecs that Remote stations
can adjust.
Selects whether or not to allow Remote stations to
select stereo sound.
Selects whether or not to allow Remote stations to
send the modulation audio.
Selects the limitation of the modulation audio sam-
pling rate that Remote stations can adjust.
8 kHz, 12 kHz, 16 kHz, 24 kHz and 48 kHz are se-
lectable.
Sets the transmit audio codecs that Remote stations
can select.
(continued)
(default: 16 kHz)
(default : 1ch)
(default : ON)
(default: 8 kHz)
12-26
z Push [F-5•EDIT] to enter the Network Radio Name
Edit mode.
x Rotate the main dial to input a Network Radio
Name of up to 16 characters.
• Push [ABC] or [abc] to toggle upper and lower case let-
ters.
• Push [123] or [Symbol] to toggle between numerals
and symbols.
• Push [F-1•t] or [F-2•u] for cursor movement.
• Push [F-3•DEL] to delete the selected character.
c Push [F-5•SET] to set.
Higher sampling rates will improve the audio quality.
However, they also increase the amount of data,
which can cause voice delay or jumpiness, depend-
ing on the network condition.
Lower sampling rates will decrease the audio quality.
However, they also decrease the amount of data.
LPCM 8 bit, u-law 8 bit and LPCM 16 bit are select-
able. (default: LPCM 8bit, u-law 8bit, LPCM 16bit)
When you select "1ch" (monaural), Remote stations
cannot program "2ch" (stereo).
If the Remote station selects "2ch," stereo output
(L=Main band; R=Sub band).
• ON: The Remote stations send the modulation
audio.
• OFF: The Remote stations do not send the modula-
tion audio.
Higher sampling rates will improve the audio quality.
However, they also increase the amount of data,
which can cause voice delay or jumpiness, depend-
ing on the network condition.
Lower sampling rates will decrease the audio quality.
However, they also decrease the amount of data.
LPCM 8 bit, u-law 8 bit and LPCM 16 bit are select-
able. (default: LPCM 8bit, u-law 8bit, LPCM 16bit)
