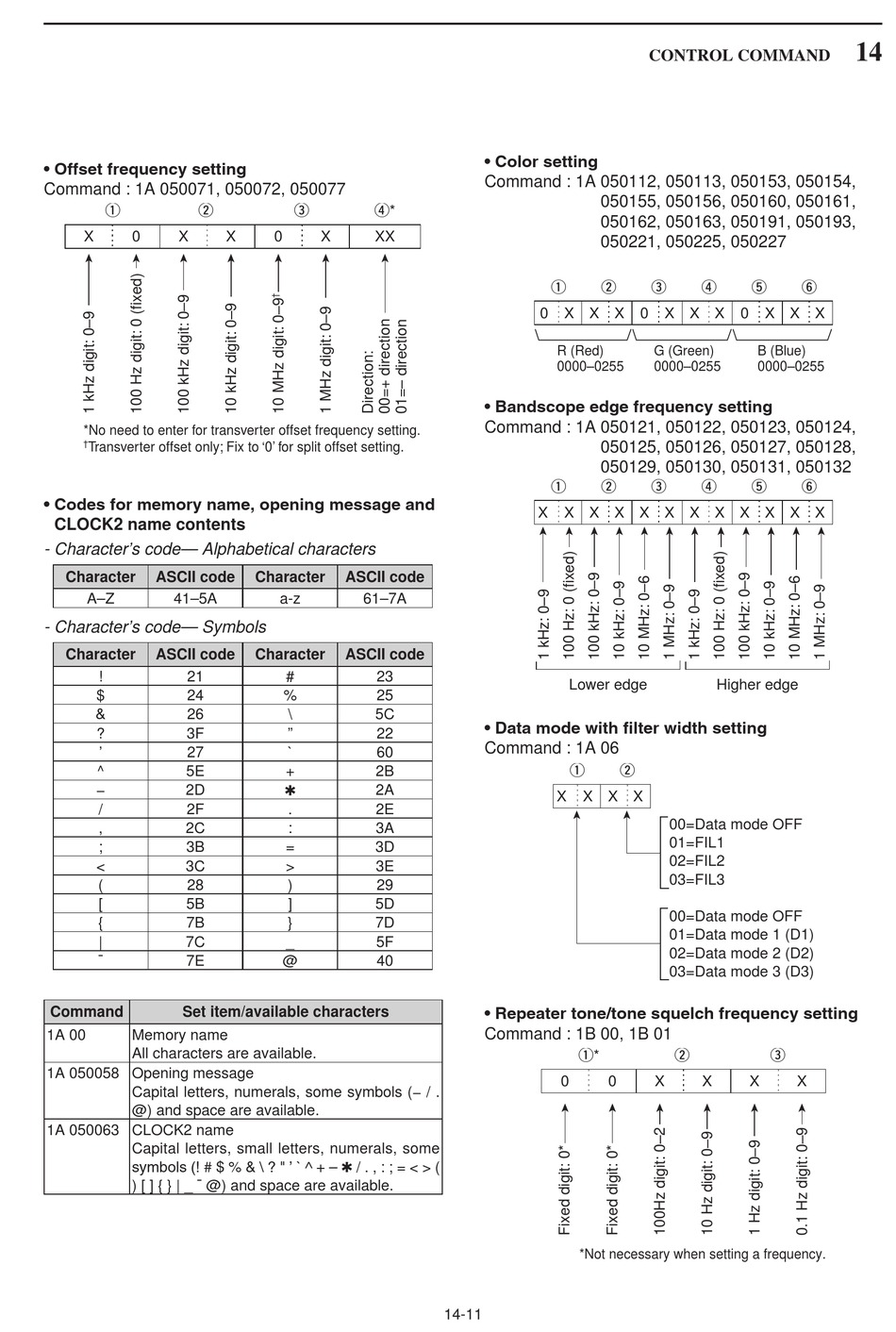

Icom IC-7800 Instruction Manual page 209

• Offset frequency setting
Command : 1A 050071, 050072, 050077
q w
X 0 X
*No need to enter for transverter offset frequency setting.
†
Transverter offset only; Fix to '0' for split offset setting.
• Codes for memory name, opening message and
CLOCK2 name contents
- Character's code— Alphabetical characters
Character ASCII code
A–Z 41–5A
- Character's code— Symbols
Character ASCII code
! 21
$ 24
&
26
? 3F
' 27
^ 5E
− 2D
/ 2F
, 2C
; 3B
< 3C
( 28
[ 5B
{ 7B
| 7C
¯ 7E
Command Set item/available characters
1A 00 Memory name
All characters are available.
1A 050058 Opening message
Capital letters, numerals, some symbols (− / .
@) and space are available.
1A 050063 CLOCK2 name
Capital letters, small letters, numerals, some
symbols (! # $ % & \ ? " ' ` ^ + – ✱ / . , : ; = < > (
) [ ] { } | _ ¯ @) and space are available.
e r*
X 0 X XX
Character ASCII code
a-z 61–7A
Character ASCII code
# 23
% 25
\ 5C
" 22
`
60
+ 2B
✱
2A
. 2E
: 3A
= 3D
> 3E
) 29
] 5D
} 7D
_ 5F
@ 40
• Color setting
Command : 1A 050112, 050113, 050153, 050154,
050155, 050156, 050160, 050161,
050162, 050163, 050191, 050193,
050221, 050225, 050227
q w
0 X X X
R (Red)
0000–0255
• Bandscope edge frequency setting
Command : 1A 050121, 050122, 050123, 050124,
050125, 050126, 050127, 050128,
050129, 050130, 050131, 050132
q w
X X X X X X X X X X X X
Lower edge
• Data mode with filter width setting
Command : 1A 06
q
X X X X
• Repeater tone/tone squelch frequency setting
Command : 1B 00, 1B 01
q*
0 0
*Not necessary when setting a frequency.
14-11
CONTROL COMMAND
e r t
0 X X X 0 X X X
G (Green) B (Blue)
0000–0255 0000–0255
e r t
Higher edge
w
00=Data mode OFF
01=FIL1
02=FIL2
03=FIL3
00=Data mode OFF
01=Data mode 1 (D1)
02=Data mode 2 (D2)
03=Data mode 3 (D3)
w e
X X X
14
y
y
X
