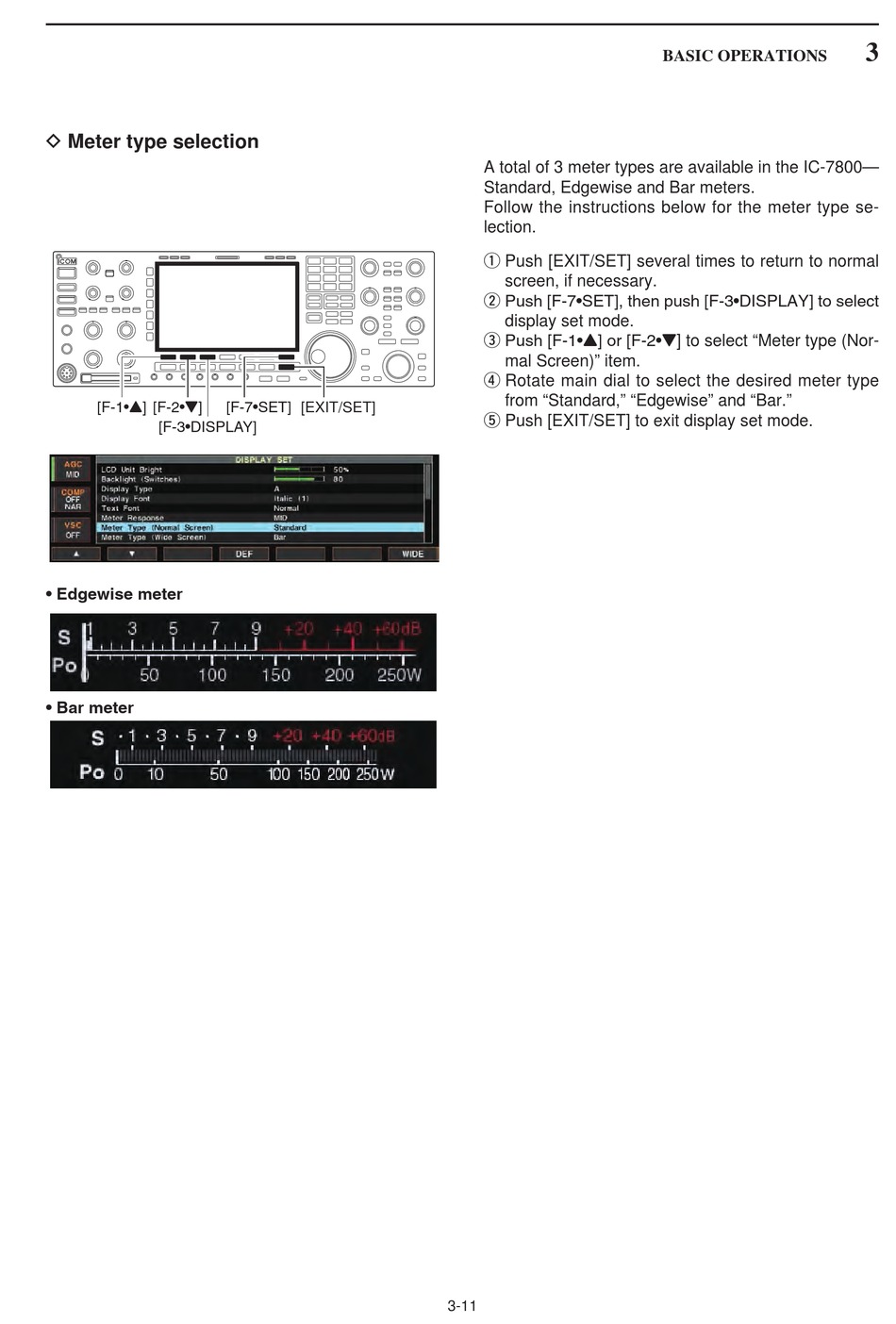

D Meter type selection

[F-1•Y] [F-2•Z]
[F-3•DISPLAY]
• Edgewise meter
• Bar meter
[F-7•SET]
[EXIT/SET]
A total of 3 meter types are available in the IC-7800—
Standard, Edgewise and Bar meters.
Follow the instructions below for the meter type se-
lection.
q Push [EXIT/SET] several times to return to normal
screen, if necessary.
w Push [F-7•SET], then push [F-3•DISPLAY] to select
display set mode.
e Push [F-1•Y] or [F-2•Z] to select "Meter type (Nor-
mal Screen)" item.
r Rotate main dial to select the desired meter type
from "Standard," "Edgewise" and "Bar."
t Push [EXIT/SET] to exit display set mode.
3-11
BASIC OPERATIONS
3
