PANEL DESCRIPTION

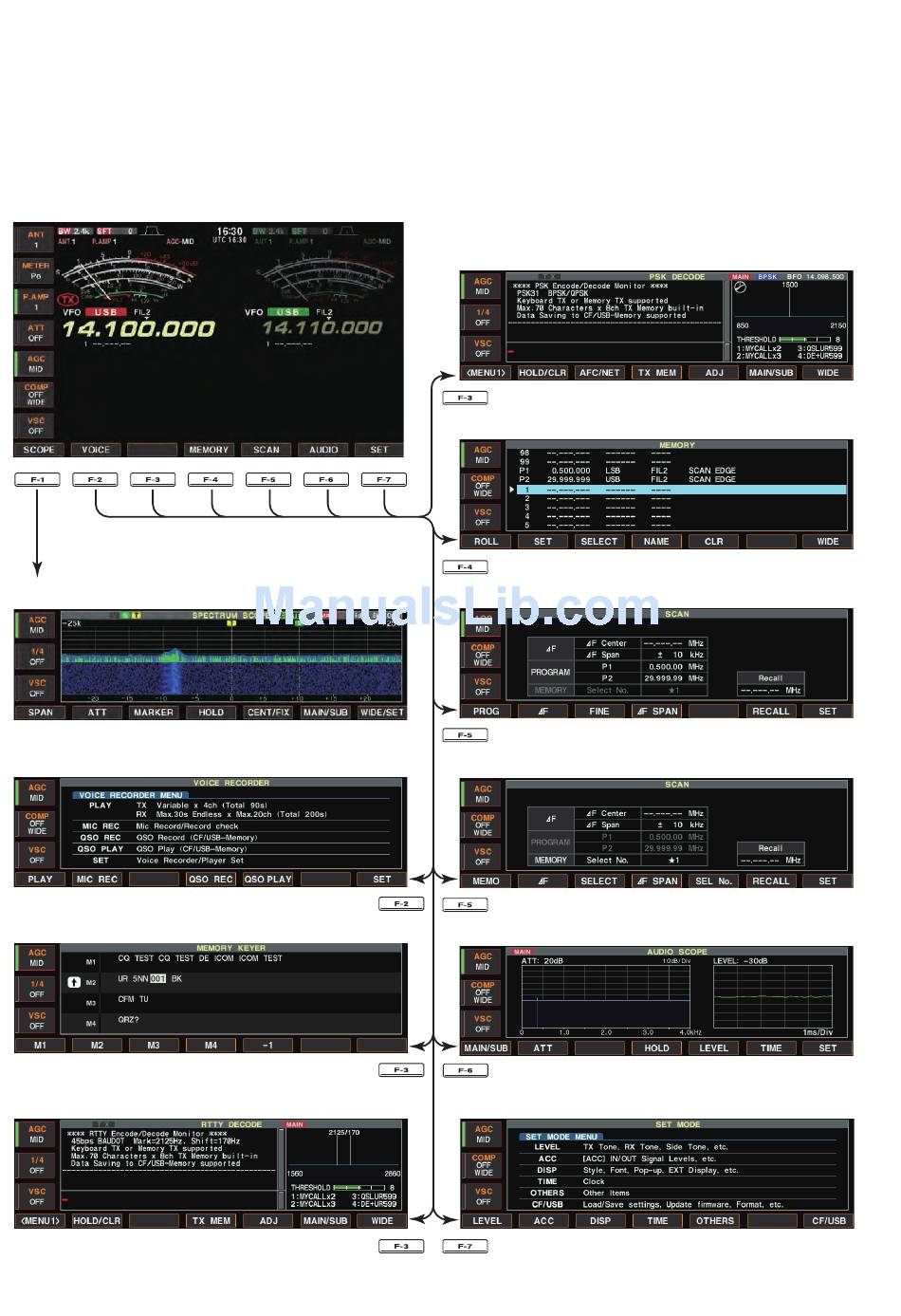

■ Screen menu arrangement
The following screens can be selected from the start
up screen. Choose the desired screen using the fol-
lowing chart.
• Spectrum scope screen (p. 5-2)
• Voice recorder screen (p. 7-2)
• Memory keyer screen (CW mode; p. 4-8)
• RTTY decoder screen (p. 4-13)
Pushing [EXIT/SET] several times returns to the start
up screen. See page 12-3 for set mode arrangement.
• PSK31 decoder screen (p. 4-21)
• Memory channel screen (p. 8-3)
• Scan screen (VFO mode; p. 9-4)
• Scan screen (Memory mode; p. 9-6)
• Audio scope (p. 5-21)
• Set mode menu screen (p. 12-2)
1-16
