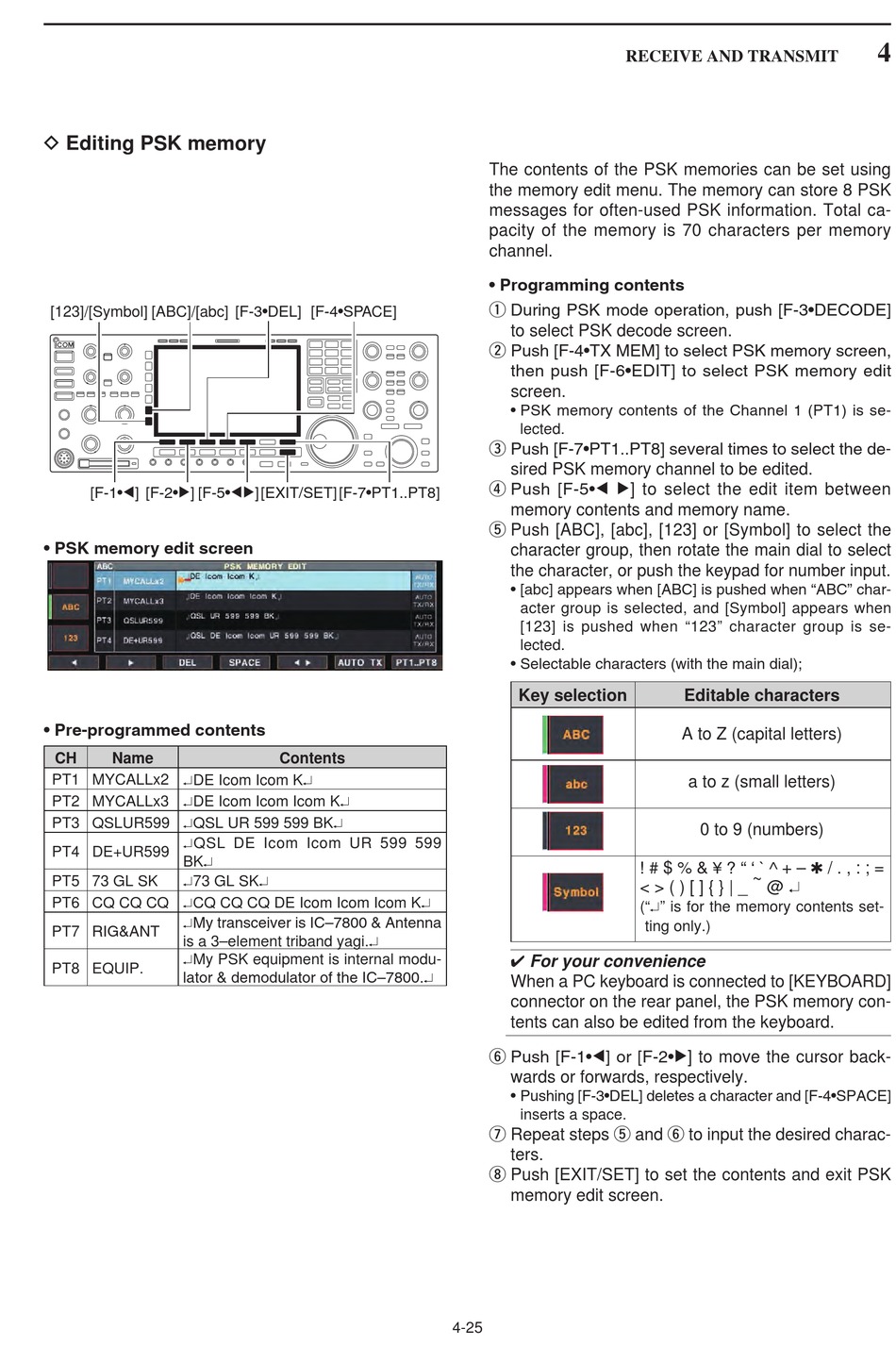

D Editing PSK memory

[123]/[Symbol] [ABC]/[abc]
[F-1•Ω] [F-2•≈] [F-5•Ω≈]
• PSK memory edit screen
• Pre-programmed contents
CH Name
PT1 MYCALLx2 ↵DE Icom Icom K↵
PT2 MYCALLx3 ↵DE Icom Icom Icom K↵
PT3 QSLUR599 ↵QSL UR 599 599 BK↵
↵QSL DE Icom Icom UR 599 599
PT4 DE+UR599
BK↵
↵73 GL SK↵
PT5 73 GL SK
PT6 CQ CQ CQ ↵CQ CQ CQ DE Icom Icom Icom K↵
↵My transceiver is IC–7800 & Antenna
PT7 RIG&ANT
is a 3–element triband yagi.↵
↵My PSK equipment is internal modu-
PT8 EQUIP.
lator & demodulator of the IC–7800.↵
[F-3•DEL] [F-4•SPACE]
[EXIT/SET] [F-7•PT1..PT8]
Contents
The contents of the PSK memories can be set using
the memory edit menu. The memory can store 8 PSK
messages for often-used PSK information. Total ca-
pacity of the memory is 70 characters per memory
channel.
• Programming contents
q During PSK mode operation, push [F-3•DECODE]
to select PSK decode screen.
w Push [F-4•TX MEM] to select PSK memory screen,
then push [F-6•EDIT] to select PSK memory edit
screen.
• PSK memory contents of the Channel 1 (PT1) is se-
lected.
e Push [F-7•PT1..PT8] several times to select the de-
sired PSK memory channel to be edited.
r Push [F-5•Ω ≈] to select the edit item between
memory contents and memory name.
t Push [ABC], [abc], [123] or [Symbol] to select the
character group, then rotate the main dial to select
the character, or push the keypad for number input.
• [abc] appears when [ABC] is pushed when "ABC" char-
acter group is selected, and [Symbol] appears when
[123] is pushed when "123" character group is se-
lected.
• Selectable characters (with the main dial);
Key selection
✔ For your convenience
When a PC keyboard is connected to [KEYBOARD]
connector on the rear panel, the PSK memory con-
tents can also be edited from the keyboard.
y Push [F-1•Ω] or [F-2•≈] to move the cursor back-
wards or forwards, respectively.
• Pushing [F-3•DEL] deletes a character and [F-4•SPACE]
inserts a space.
u Repeat steps t and y to input the desired charac-
ters.
i Push [EXIT/SET] to set the contents and exit PSK
memory edit screen.
4-25
RECEIVE AND TRANSMIT
Editable characters
A to Z (capital letters)
a to z (small letters)
0 to 9 (numbers)
! # $ % & ¥ ? " ' ` ^ + – ✱ / . , : ; =
~
@ ↵
< > ( ) [ ] { } | _
( "↵" is for the memory contents set-
ting only.)
