D Scope set mode (continued)

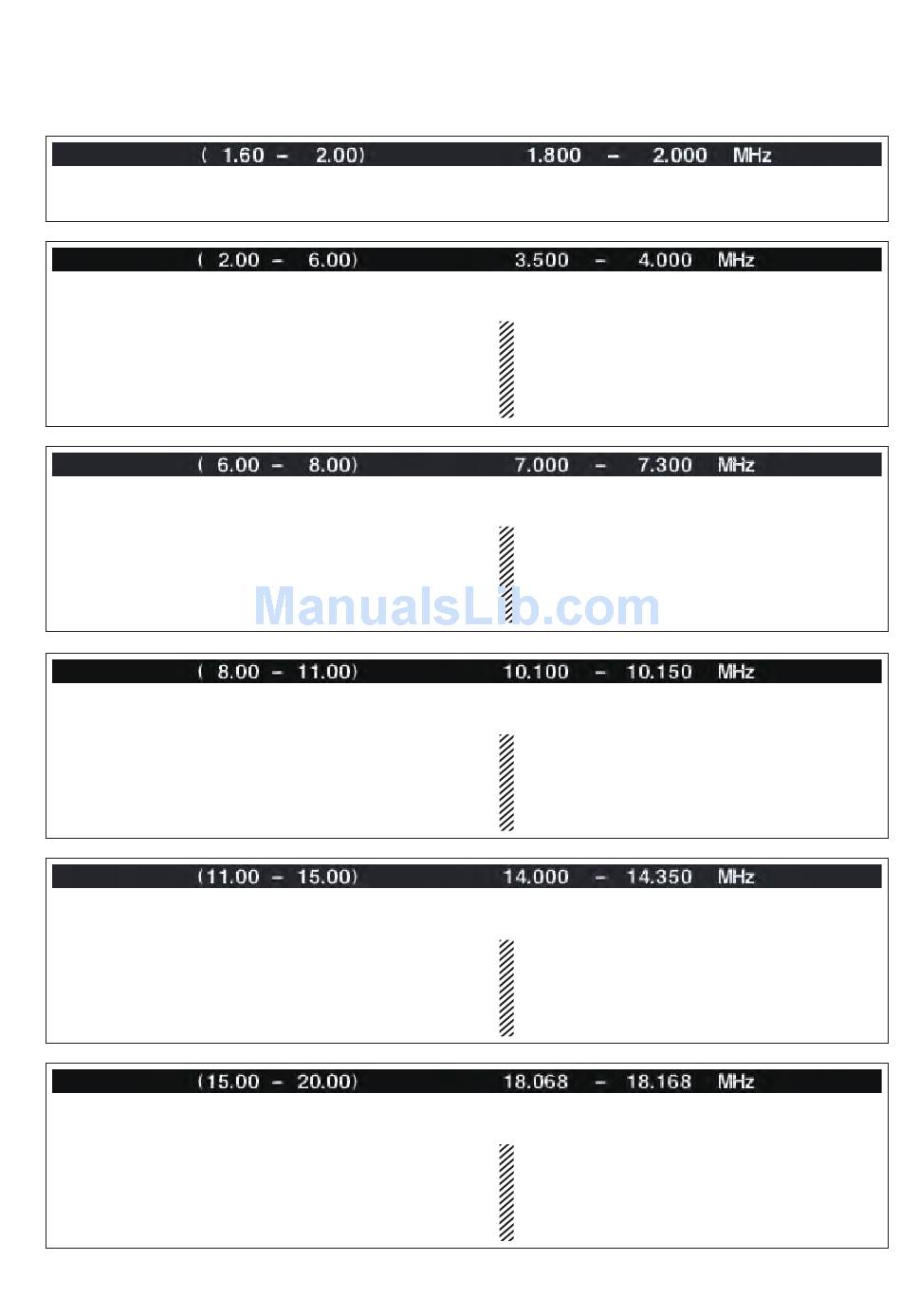

Set the scope edge frequencies for fixed mode scope
when the 1.6 to 2 MHz band is selected.
Set the scope edge frequencies for fixed mode scope
when the 2 to 6 MHz band is selected.
Set the scope edge frequencies for fixed mode scope
when the 6 to 8 MHz band is selected.
Set the scope edge frequencies for fixed mode scope
when the 8 to 11 MHz band is selected.
Set the scope edge frequencies for fixed mode scope
when the 11 to 15 MHz band is selected.
Set the scope edge frequencies for fixed mode scope
when the 15 to 20 MHz band is selected.
FUNCTIONS FOR RECEIVE
• Set the frequencies between 1.600 to 2.000 MHz
range in 1 kHz steps.
• Set the frequencies between 2.000 to 6.000 MHz
range in 1 kHz steps.
Up to 500 kHz band width can be specified, so ei-
ther edge frequency will be set to the difference
between higher and lower frequencies become 5
to 500 kHz automatically while setting another
edge frequency.
• Set the frequencies between 6.000 to 8.000 MHz
range in 1 kHz steps.
Up to 500 kHz band width can be specified, so ei-
ther edge frequency will be set to the difference
between higher and lower frequencies become 5
to 500 kHz automatically while setting another
edge frequency.
• Set the frequencies between 8.000 to 11.000 MHz
range in 1 kHz steps.
Up to 500 kHz band width can be specified, so ei-
ther edge frequency will be set to the difference
between higher and lower frequencies become 5
to 500 kHz automatically while setting another
edge frequency.
• Set the frequencies between 11.000 to 15.000 MHz
range in 1 kHz steps.
Up to 500 kHz band width can be specified, so ei-
ther edge frequency will be set to the difference
between higher and lower frequencies become 5
to 500 kHz automatically while setting another
edge frequency.
• Set the frequencies between 15.000 to 20.000 MHz
range in 1 kHz steps.
Up to 500 kHz band width can be specified, so ei-
ther edge frequency will be set to the difference
between higher and lower frequencies become 5
to 500 kHz automatically while setting another
edge frequency.
5-7
