Icom IC-7800 Instruction Manual page 166

12
SET MODE

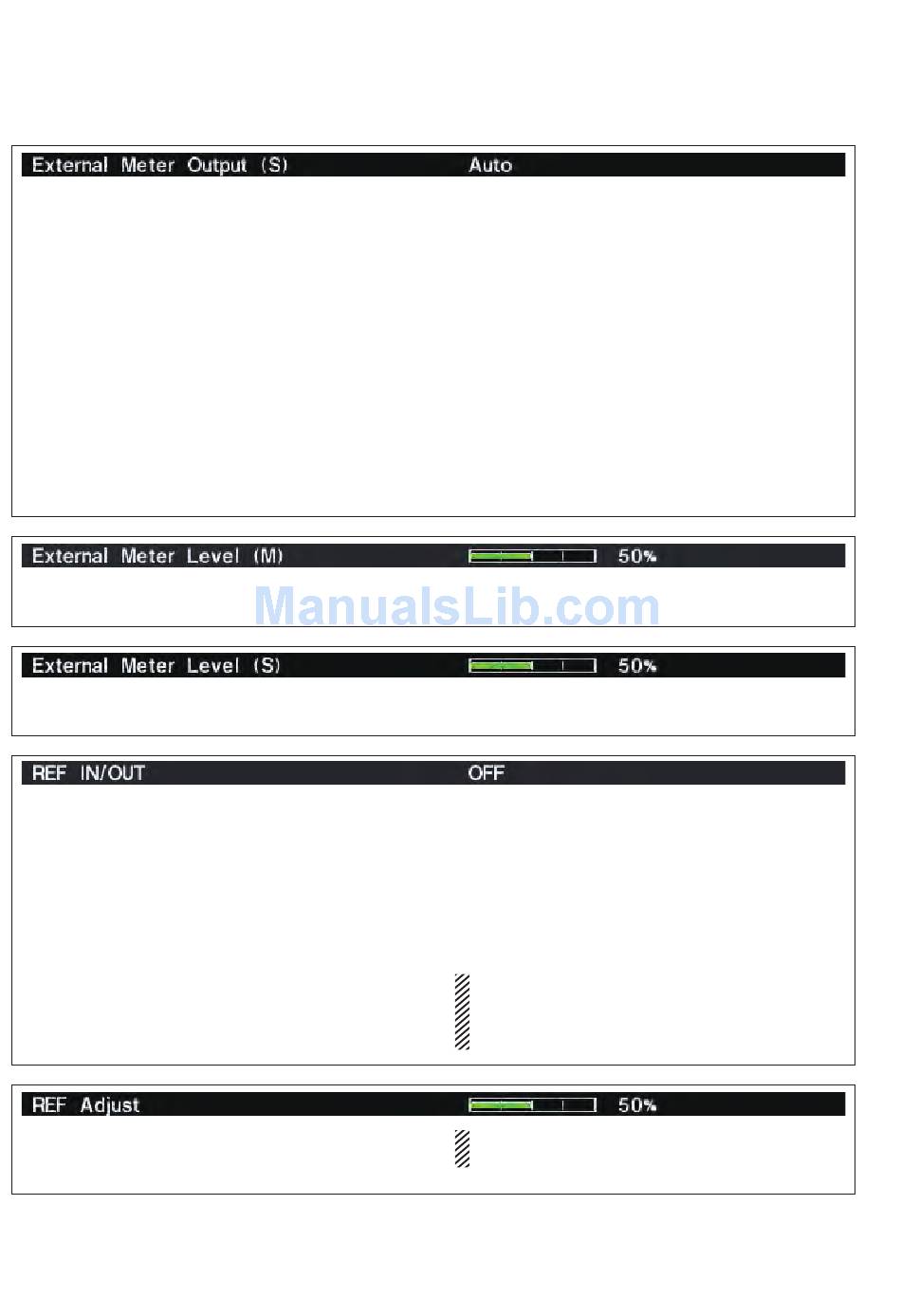

■ ACC set mode
Selects the desired item for an external meter indica-
tion (sub readout).
Sets the output level for an external meter indication
(main readout) with in 0 to 100% range in 1% steps.
Sets the output level for an external meter indication
(sub readout) with in 0 to 100% range in 1% steps.
Selects the transceiver's reference signal condition
from IN, OFF and OUT.
Adjusts the internal reference signal frequency within
0 to 100% range in 1% steps during frequency cali-
bration.
(continued)
• Auto : Outputs the receiving signal strength
level during receive, and outputs the se-
lected level (selected with [METER]), dur-
ing transmit. (default)
• S(MAIN) : Outputs the receiving signal strength level
during receive.
• Po : Outputs the transmitting power level dur-
ing transmit.
• SWR : Outputs the VSWR level during transmit.
• ALC : Outputs the ALC level during transmit.
• COMP : Outputs the compression level during
transmit.
• V
d : Outputs the drain terminal voltage of the
final amplifier MOS-FETs.
• I
: Outputs the drain current of the final am-
d
plifier MOS-FETs.
• Approximately 2.5 V at 50% (default) setting for full-scale
indication. (4.7 kΩ impedance)
• Approximately 2.5 V at 50% (default) setting for full-scale
indication. (4.7 kΩ impedance)
• IN : Use an external reference signal for the IC-
7800. Turn the transceiver power OFF then
ON to make the setting effective.
• OFF : Not input/output the reference signal.
(default)
• OUT : Outputs the IC-7800 reference signal to ex-
ternally connected equipment(s) for their
reference.
NOTE: If the applied reference signal is off-fre-
quency, or no signal is applied with "IN" selection,
the IC-7800 will not work properly. Select "OFF" or
"OUT" then reboot the IC-7800 in such case.
NOTE: The default setting is different for each
transceiver.
12-10
