3
BASIC OPERATIONS

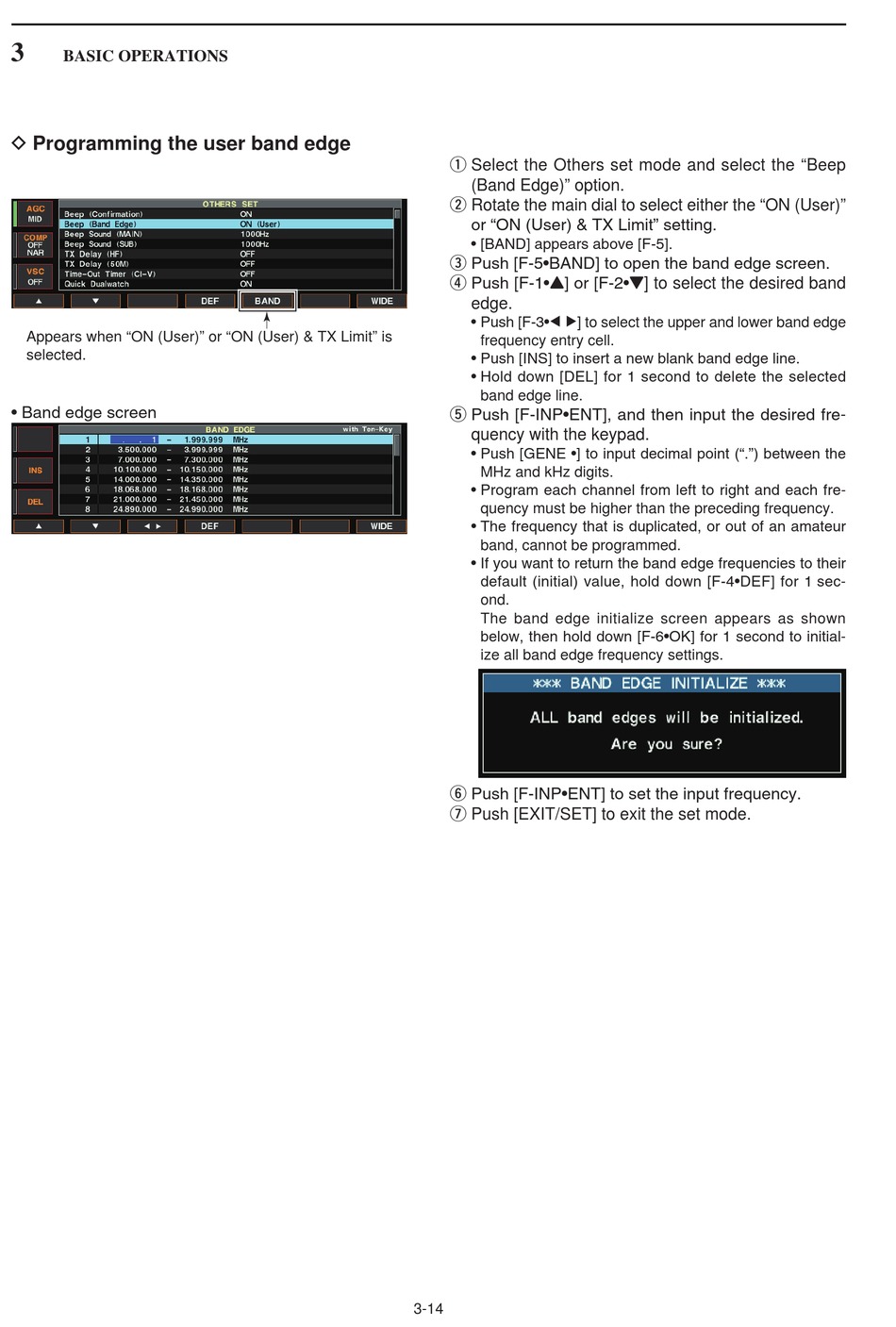

D Programming the user band edge

Appears when "ON (User)" or "ON (User) & TX Limit" is
selected.
• Band edge screen
q Select the Others set mode and select the "Beep
(Band Edge)" option.
w Rotate the main dial to select either the "ON (User)"
or "ON (User) & TX Limit" setting.
• [BAND] appears above [F-5].
e Push [F-5•BAND] to open the band edge screen.
r Push [F-1•Y] or [F-2•Z] to select the desired band
edge.
• Push [F-3•Ω ≈] to select the upper and lower band edge
frequency entry cell.
• Push [INS] to insert a new blank band edge line.
• Hold down [DEL] for 1 second to delete the selected
band edge line.
t Push [F-INP•ENT], and then input the desired fre-
quency with the keypad.
• Push [GENE •] to input decimal point (".") between the
MHz and kHz digits.
• Program each channel from left to right and each fre-
quency must be higher than the preceding frequency.
• The frequency that is duplicated, or out of an amateur
band, cannot be programmed.
• If you want to return the band edge frequencies to their
default (initial) value, hold down [F-4•DEF] for 1 sec-
ond.
The band edge initialize screen appears as shown
below, then hold down [F-6•OK] for 1 second to initial-
ize all band edge frequency settings.
y Push [F-INP•ENT] to set the input frequency.
u Push [EXIT/SET] to exit the set mode.
3-14
