4
RECEIVE AND TRANSMIT

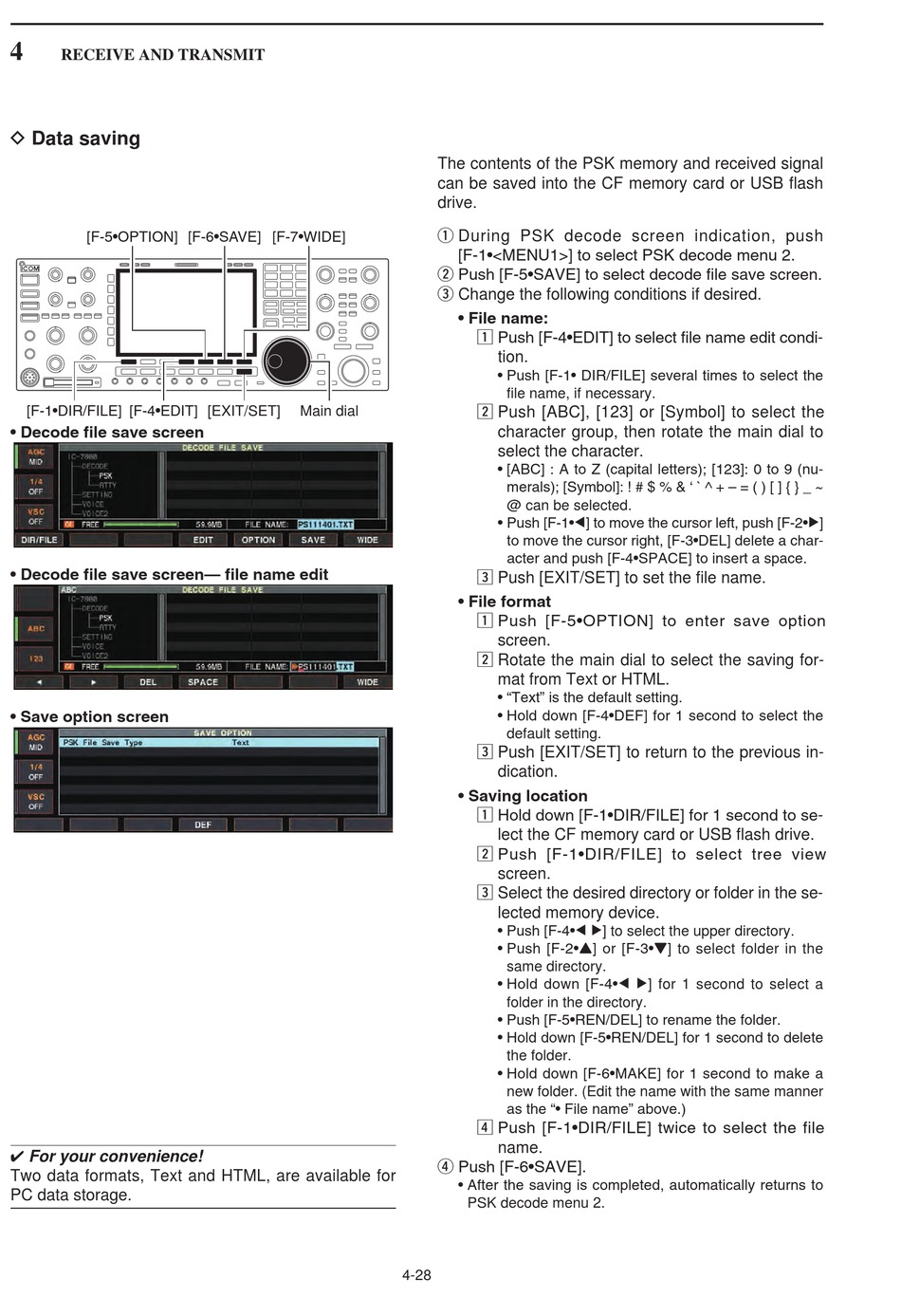

D Data saving

[F-5•OPTION] [F-6•SAVE] [F-7•WIDE]
[F-1•DIR/FILE] [F-4•EDIT]
• Decode file save screen
• Decode file save screen— file name edit
• Save option screen
✔ For your convenience!
Two data formats, Text and HTML, are available for
PC data storage.
[EXIT/SET] Main dial
The contents of the PSK memory and received signal
can be saved into the CF memory card or USB flash
drive.
q During PSK decode screen indication, push
[F-1•<MENU1>] to select PSK decode menu 2.
w Push [F-5•SAVE] to select decode file save screen.
e Change the following conditions if desired.
• File name:
z Push [F-4•EDIT] to select file name edit condi-
tion.
• Push [F-1• DIR/FILE] several times to select the
file name, if necessary.
x Push [ABC], [123] or [Symbol] to select the
character group, then rotate the main dial to
select the character.
• [ABC] : A to Z (capital letters); [123]: 0 to 9 (nu-
merals); [Symbol]: ! # $ % & ' ` ^ + – = ( ) [ ] { } _ ~
@ can be selected.
• Push [F-1•Ω] to move the cursor left, push [F-2•≈]
to move the cursor right, [F-3•DEL] delete a char-
acter and push [F-4•SPACE] to insert a space.
c Push [EXIT/SET] to set the file name.
• File format
z Push [F-5•OPTION] to enter save option
screen.
x Rotate the main dial to select the saving for-
mat from Text or HTML.
• "Text" is the default setting.
• Hold down [F-4•DEF] for 1 second to select the
default setting.
c Push [EXIT/SET] to return to the previous in-
dication.
• Saving location
z Hold down [F-1•DIR/FILE] for 1 second to se-
lect the CF memory card or USB flash drive.
x Push [F-1•DIR/FILE] to select tree view
screen.
c Select the desired directory or folder in the se-
lected memory device.
• Push [F-4•Ω ≈] to select the upper directory.
• Push [F-2•Y] or [F-3•Z] to select folder in the
same directory.
• Hold down [F-4•Ω ≈] for 1 second to select a
folder in the directory.
• Push [F-5•REN/DEL] to rename the folder.
• Hold down [F-5•REN/DEL] for 1 second to delete
the folder.
• Hold down [F-6•MAKE] for 1 second to make a
new folder. (Edit the name with the same manner
as the "• File name" above.)
v Push [F-1•DIR/FILE] twice to select the file
name.
r Push [F-6•SAVE].
• After the saving is completed, automatically returns to
PSK decode menu 2.
4-28
