12
SET MODE

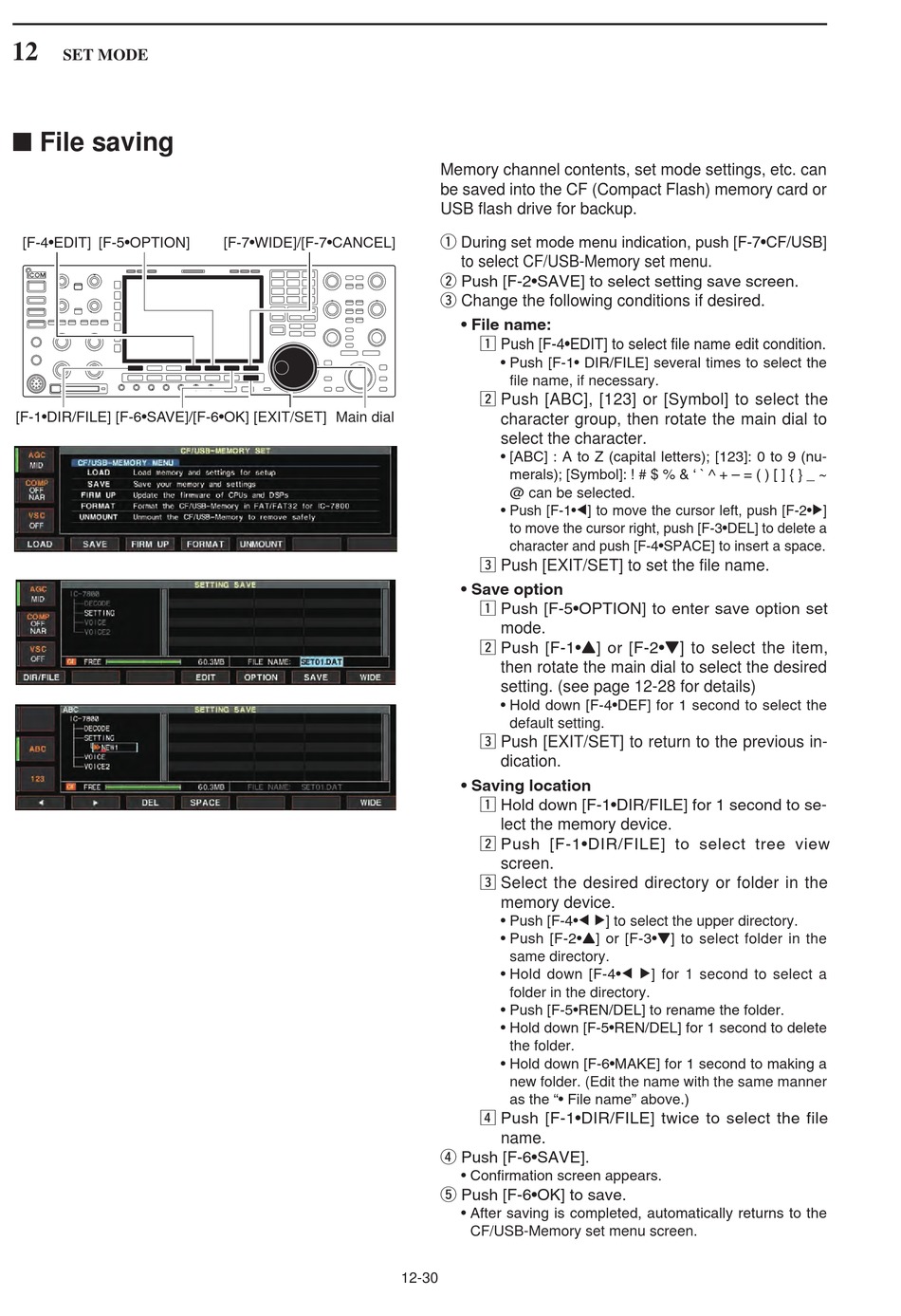

■ File saving

[F-4•EDIT] [F-5•OPTION]
[F-1•DIR/FILE] [F-6•SAVE]/[F-6•OK]
[F-7•WIDE]/[F-7•CANCEL]
[EXIT/SET] Main dial
Memory channel contents, set mode settings, etc. can
be saved into the CF (Compact Flash) memory card or
USB flash drive for backup.
q During set mode menu indication, push [F-7•CF/USB]
to select CF/USB-Memory set menu.
w Push [F-2•SAVE] to select setting save screen.
e Change the following conditions if desired.
• File name:
z Push [F-4•EDIT] to select file name edit condition.
• Push [F-1• DIR/FILE] several times to select the
file name, if necessary.
x Push [ABC], [123] or [Symbol] to select the
character group, then rotate the main dial to
select the character.
• [ABC] : A to Z (capital letters); [123]: 0 to 9 (nu-
merals); [Symbol]: ! # $ % & ' ` ^ + – = ( ) [ ] { } _ ~
@ can be selected.
• Push [F-1•Ω] to move the cursor left, push [F-2•≈]
to move the cursor right, push [F-3•DEL] to delete a
character and push [F-4•SPACE] to insert a space.
c Push [EXIT/SET] to set the file name.
• Save option
z Push [F-5•OPTION] to enter save option set
mode.
x Push [F-1•Y] or [F-2•Z] to select the item,
then rotate the main dial to select the desired
setting. (see page 12-28 for details)
• Hold down [F-4•DEF] for 1 second to select the
default setting.
c Push [EXIT/SET] to return to the previous in-
dication.
• Saving location
z Hold down [F-1•DIR/FILE] for 1 second to se-
lect the memory device.
x Push [F-1•DIR/FILE] to select tree view
screen.
c Select the desired directory or folder in the
memory device.
• Push [F-4•Ω ≈] to select the upper directory.
• Push [F-2•Y] or [F-3•Z] to select folder in the
same directory.
• Hold down [F-4•Ω ≈] for 1 second to select a
folder in the directory.
• Push [F-5•REN/DEL] to rename the folder.
• Hold down [F-5•REN/DEL] for 1 second to delete
the folder.
• Hold down [F-6•MAKE] for 1 second to making a
new folder. (Edit the name with the same manner
as the "• File name" above.)
v Push [F-1•DIR/FILE] twice to select the file
name.
r Push [F-6•SAVE].
• Confirmation screen appears.
t Push [F-6•OK] to save.
• After saving is completed, automatically returns to the
CF/USB-Memory set menu screen.
12-30
