RealPresence Collaboration Server (RMX) 4000 Hardware Guide
•
For more information about specific card connections, see:
•
•
•

First-time Power-up

1
For more information about modifying the lan.cfg file on the USB key and using the USB key, see
the RealPresence Collaboration Server 1500/2000/4000 Getting Started Guide, "Procedure 1: First-
time Power-up" on page 2-15.
2
3
1-20
Optional. If RTM ISDN is installed, for each installed RTM ISDN:
— Connect the E1/T1 cables to their PRI Ports.
— Connect the LAN cable to LAN 1.
LAN Connections to RTM LAN
Signaling
Network
Management
Network
Off/On
switch

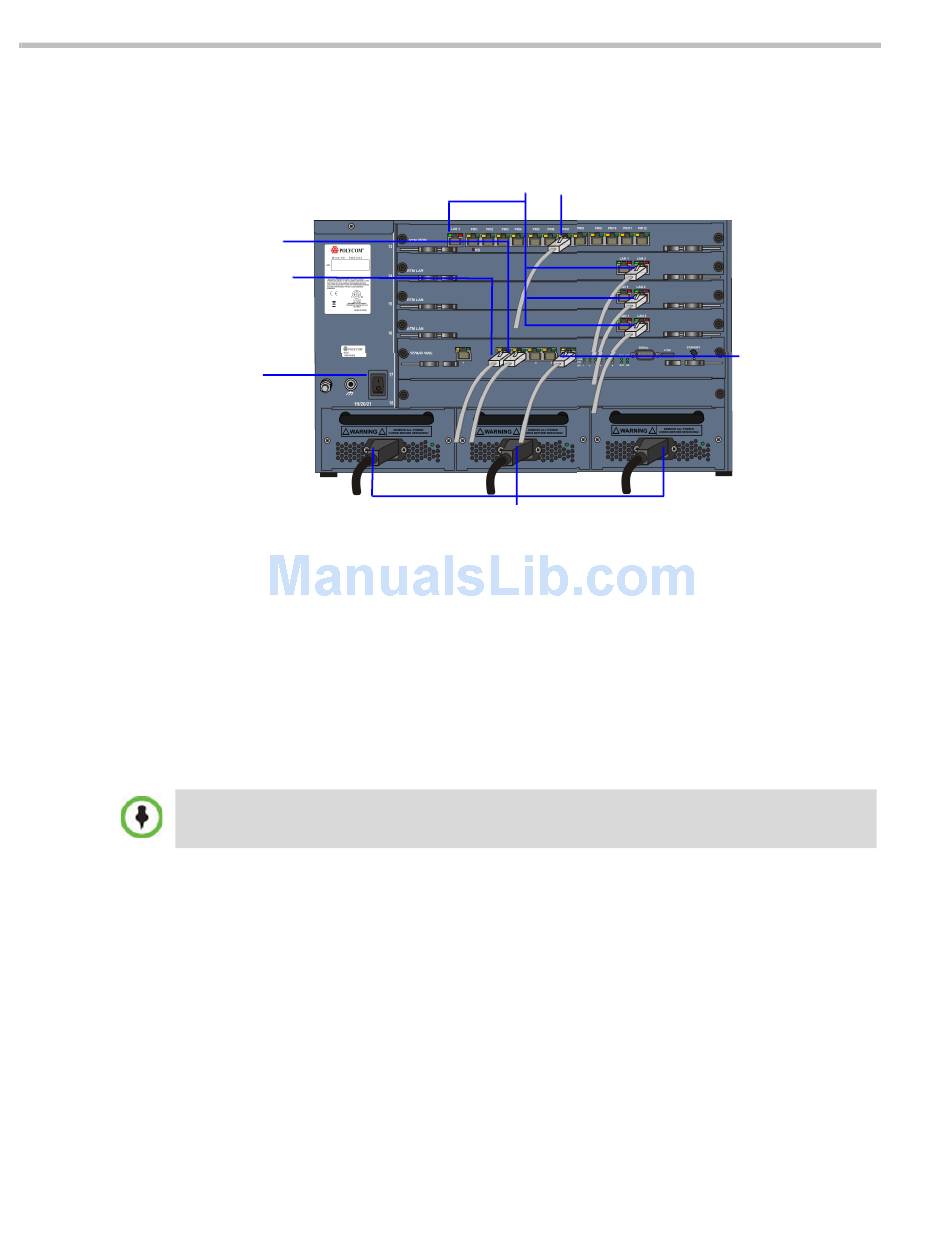

Figure 1-11 RMX 4000 Rear Panel View with AC Power and Communication Cables
"RTM-IP 4000" on page
"RTM ISDN" on page 1-33
"RTM LAN" on page 1-32
For first entry installation, you must insert the USB key containing the modified IP
addresses in USB port on the RMX's back panel.
AC System - Turn ON the power by pressing on the power switch located on the rear
panel of the RMX 4000.
DC System - Turn ON the Main that supplies power to the RMX and then turn ON the
circuit breaker on the each of DC power rail modules.
The parameters in the lan.cfg file are uploaded from the USB key to the RMX's memory
and applied during the power-up sequence.
System power-up sequence may take up to five minutes.
During the First-time Power-up the red ERR LED on the RMX's front panel remains ON
until both the Management and IP Network Services have been defined.
When the RMX's configuration is completed (including the Management and IP Network
Services), and if there are no System Errors, the green RDY LED on the CNTL module (on
the RMX's front panel) turns ON.
Remove the USB key.
E1/T1 Connection to RTM ISDN
Power Cables
1-31
Shelf
Management
