Polycom RealPresence Collaboration Server (RMX) 4000 Hardware Guide

Replacing the RTM-IP 4000

RTM-IP 4000 connections require Ferrite cables when connecting to MPMx cards.
The RTM-IP 4000 card on the rear of the RMX 4000 provides connectivity to all the MCU
modules. Use the following procedure to replace the RTM-IP 4000 card:
1
2
3
4
5
6
7
8
9
10 Tighten the captive screws on the rear panel of the RMX 4000 that secure the
11 Reconnect the cables.
12 Turn ON the RMX 4000.
2-12
Ensure that the power switch/circuit switch on the RMX 4000 is turned OFF (O).
Remove the cables connected to the card.
Unscrew the captive screws on the rear panel of the RMX 4000 that secure the
RTM-IP 4000 card.
Use the metal ejector levers to pull the RTM-IP 4000 card out of its slot in the backplane.

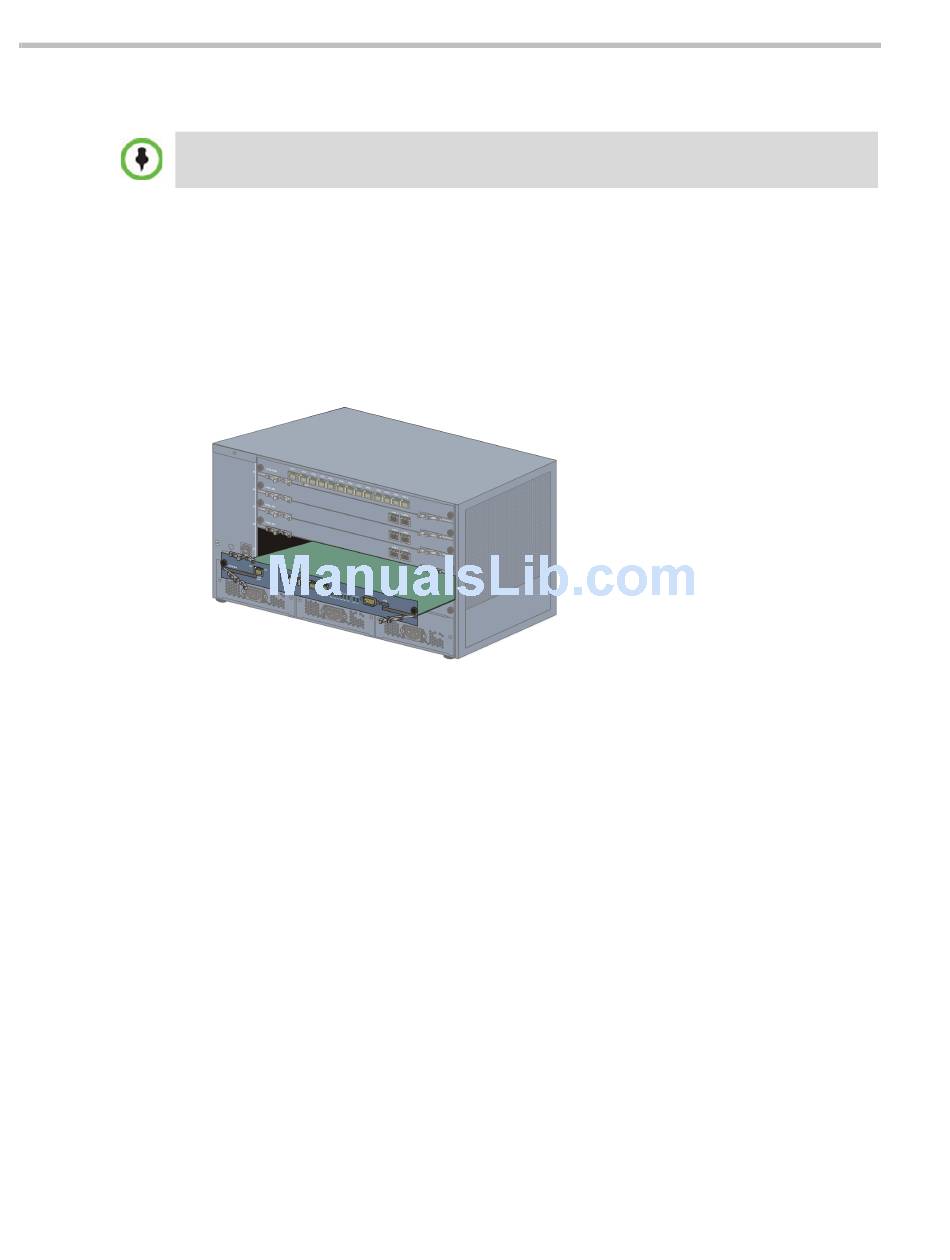

Carefully slide the RTM-IP 4000 card out through the rear panel.
On the card to be installed, move the ejector levers to their fully open position.
Slide in the replacement RTM-IP 4000 card.
Push the RTM-IP 4000 card firmly into the backplane, making sure it is properly seated
in its slots.
Ensure that the metal ejector levers are fully retracted into their housings.
RTM-IP 4000 card.
