RTM-IP 4000

A single RTM-IP 4000 card provides system management based on the ATCA standard and
connects to the backplane. Through the shelf manager, it controls and monitors the system
fans and regulates the AC power supplies. This card contains an Ethernet Switch that
manages the network of the system, routes data between the cards and components of the
system and provides connectivity to external IP networks.
On the RMX 4000 when upgrading from MPM/MPM+ to MPMx on the RTM-IP 4000 all connections
require Ferrite cables.
The RTM-IP 4000 card connections include:
•
•
•
LAN 1- Modem
Connection &
Figure
•
•
The following items appear on the RMX 4000 rear panel:
Table 1-10
Item
LAN 1
LAN 2 (CNTL 4000/
CPU 1)
LAN 3 (CNTL 4000/
CPU 1)
LAN 4-5 (CNTL 4000/
CPU 2)
LAN 6
Polycom, Inc.
6 LAN ports
1 Serial port (Future Use)
1 USB port
LAN 2-
Management
LEDs Network & LEDs
LAN 3 -
Signalling
network

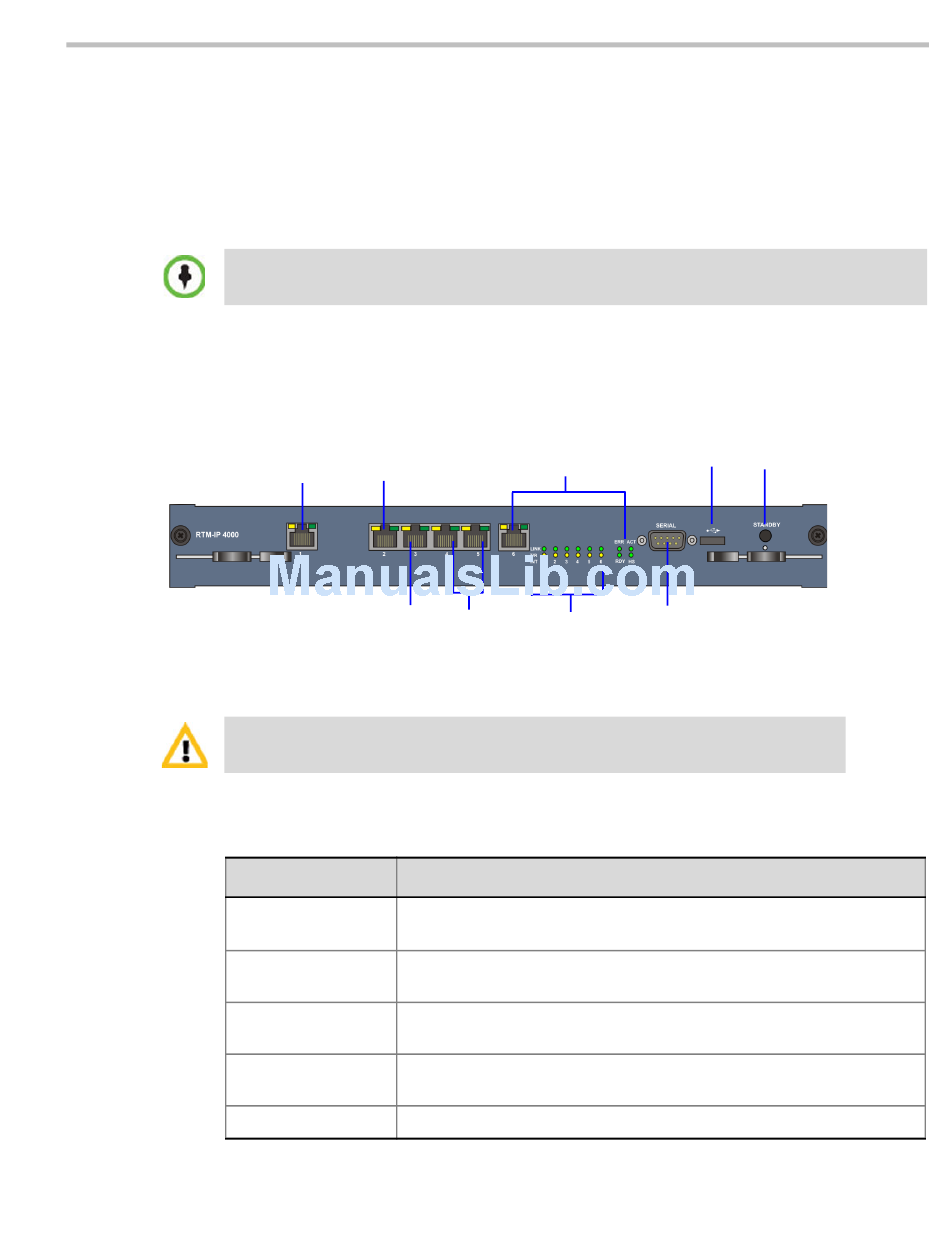

1-16RMX 4000 RTM-IP 4000 Rear Panel Layout
LAN 4, LAN 5 and the Serial ports are only for debugging and not for customer use.
Do not remove the protective plastic caps from LAN 1, LAN 4 and LAN 5 ports.
RMX 4000 Rear Panel - RTM-IP 4000 Component Description
Description
Modem connection.
Note: LAN 1 is covered with a plastic cap that should not be removed.
Management network/Web Client connection.
Signalling network, for Gatekeeper, Proxy or endpoint connections.
Empty.
Shelf Manager connection.
LAN 6- 10/100Mb ShMG (Shelf
Manager) & LEDs
LAN 4, 5 - Internal LAN
Empty connection
LEDs
Chapter 1-Hardware Description
USB Standby button
Port & LED
Serial Port
1-25
