Polycom RealPresence Collaboration Server (RMX) 4000 Hardware Guide

Replacing the Fabric Switch Module (FSM 4000)

1
2
3
4
5
6
7
8
9
10 Turn ON the RMX 4000.
2-14
Ensure that the power switch/circuit switch on the RMX 4000 is turned OFF (O).
Loosen the captive screws that fasten the module to the MCU.

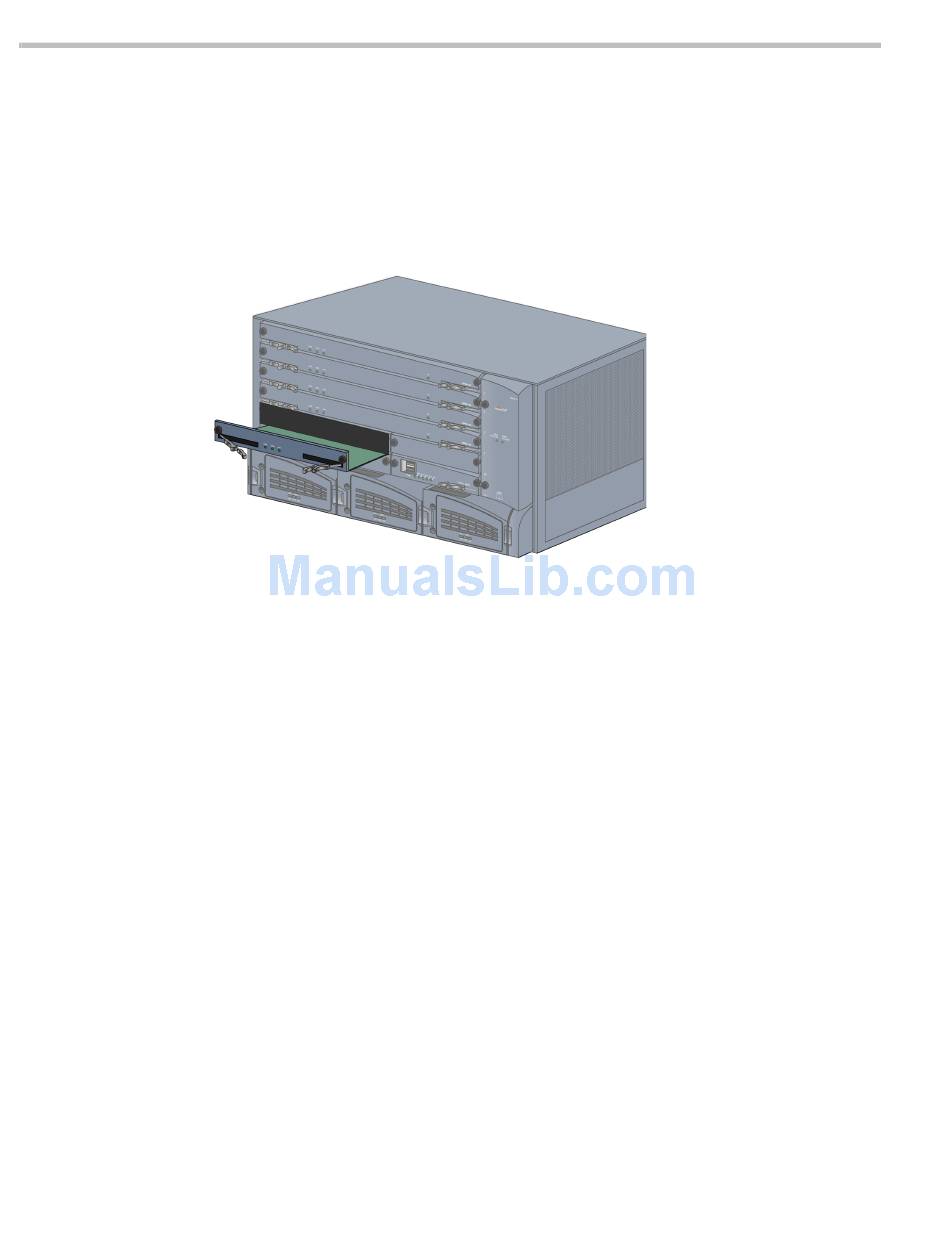

Remove the Fabric Switch Module (FSM 4000). Use the metal ejector levers to pull the
Fabric Switch Module (FSM 4000) out of its slot in the backplane.
Carefully slide the Fabric Switch Module (FSM 4000) out through the front panel.
On the card to be installed, move the ejector levers to their fully open position.
Slide in the replacement Fabric Switch Module (FSM 4000).
Push the Fabric Switch Module (FSM 4000) firmly into the backplane, making sure it is
properly seated in its slots.
Ensure that the metal ejector levers are fully retracted into their housings.
Tighten the captive screws on the rear panel of the RMX 4000 that secure the Fabric
Switch Module (FSM 4000).
