When the unit is installed on a rack, the rack must be properly grounded to the central office ground.
The rack must be grounded with two-hole compression-type connectors using copper conductors
(tinned or untinned). Wire, bus bar or braided strap connectors are acceptable.
Reverse Mounting the RealPresence Collaboration Server (RMX) 4000
in a Rack
It is possible to reverse mount the RMX 4000 in a rack using 19" or 23" brackets.
To reverse mount the RMX 4000 on a 19" rack:
1
2
3
Rack mounting screws must be supplied by the rack's manufacturer.
1-16
The airflow of the RMX 4000 is from right to left. Be sure that the areas on the left and
right side of the system are clear for proper ventilation.

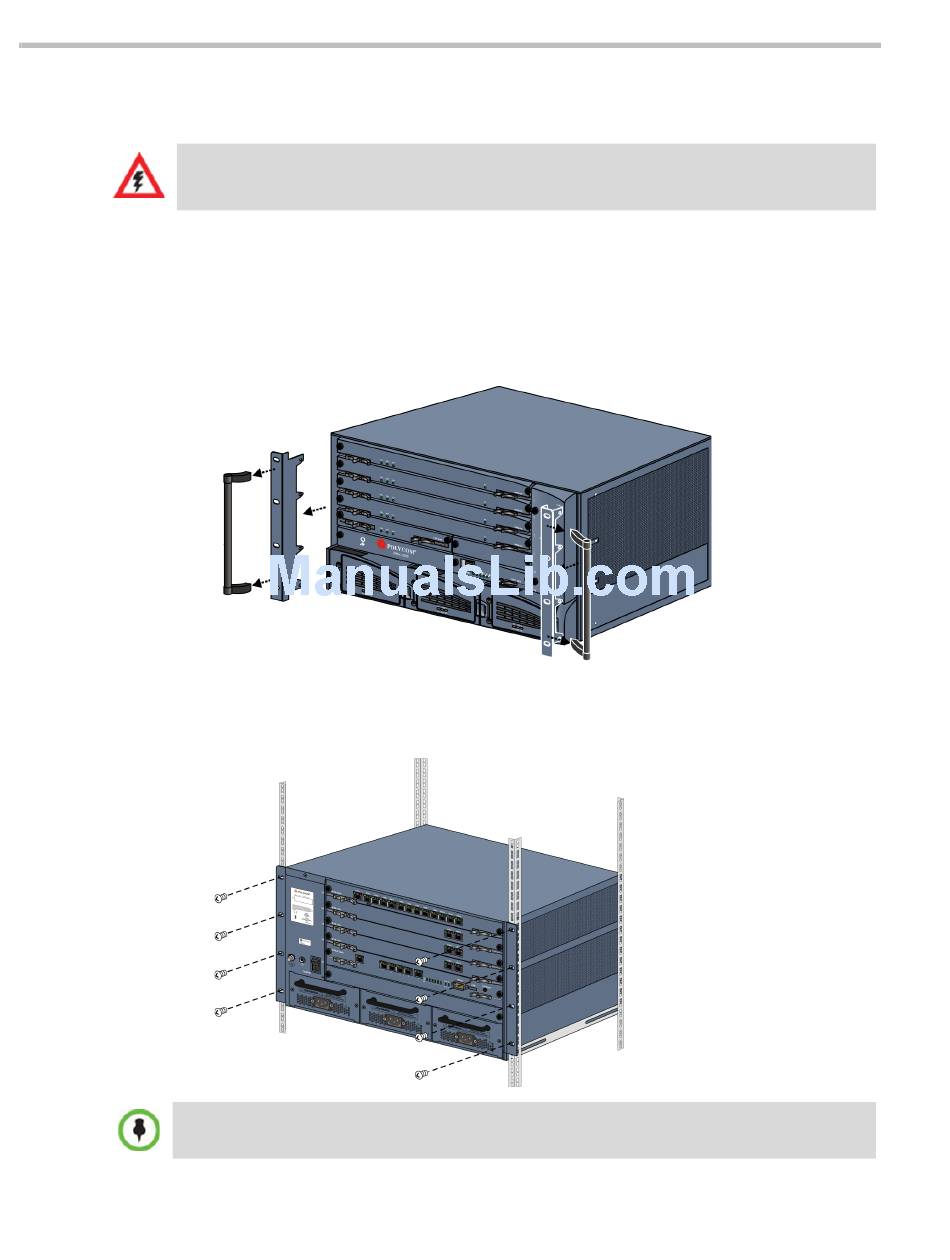

Remove the handles and brackets from the front of the RMX.
Attach the brackets to the rear of the RMX.
Place the RMX in a rack and tighten the 8 screws securing the RMX to the rack.
