Optional 19" Rack Assembly

1
2
3
Rack mounting screws must be supplied by the rack's manufacturer.
1-14
When the RMX is to be rack mounted chassis runners must be installed on the rack as
shown in Figure 1-7. Two chassis runners are included in the Rack Installation Accessories
kit and are attached facing inward from the outside of the 19"/23"rack mount.

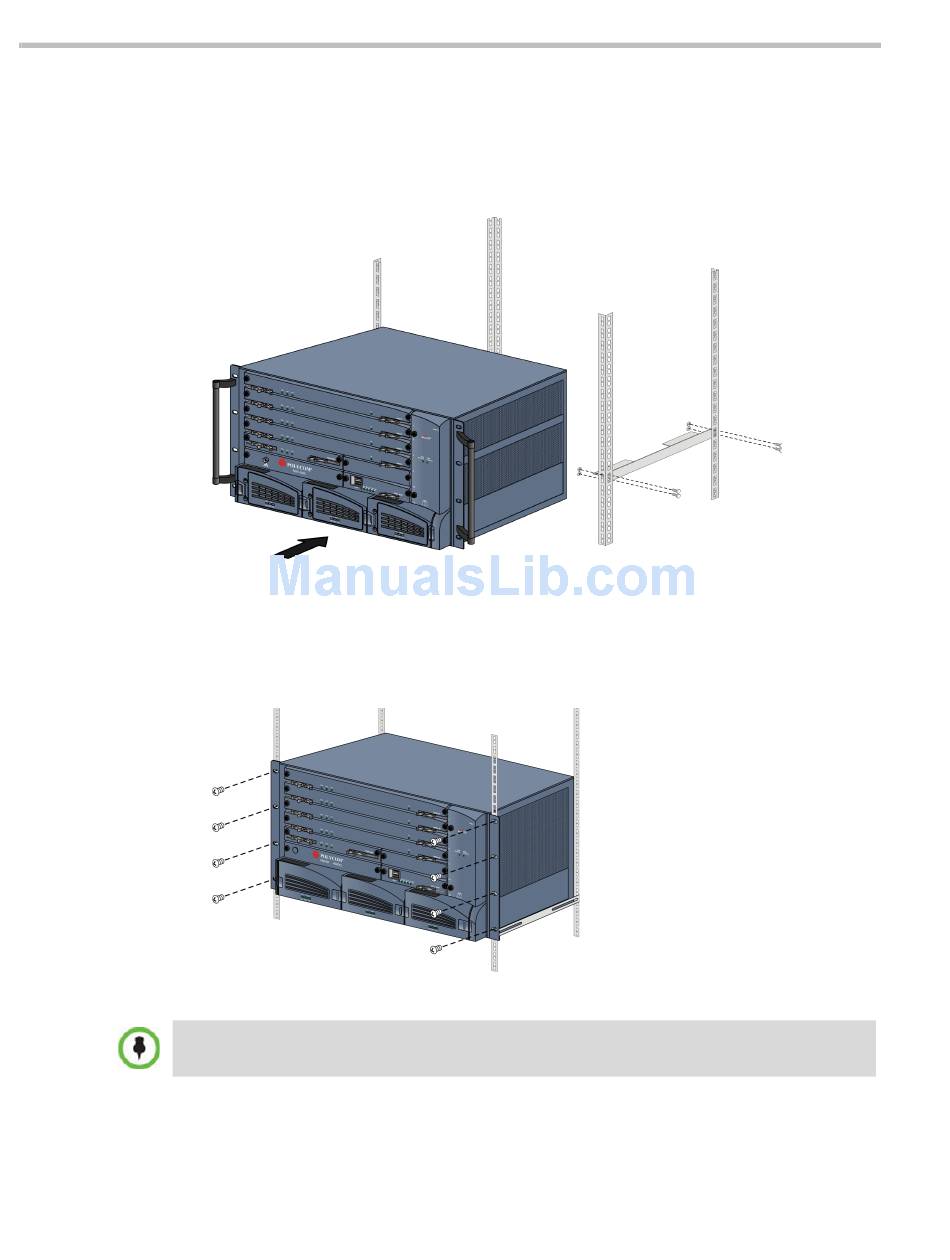

Figure 1-7 Installing chassis runners and RMX in a rack
Mount the RMX on top of the rack brackets using the blades or placing it on a rack
mount shelf with runners.
Fasten the RMX to the rack with 8 screws into the holes provided on the RMX's front as
shown in Figure 1-8.
Figure 1-8 RMX 4000 Rack Mount
