3
Warning!
The Fan drawer can be replaced when the RMX unit is ON, however a replacement drawer must be
inserted immediately. The temperature increase is detected by the system, and when critical, a
system shutdown is initiated.
4
5
6

Inserting an Air Filter (Optional) in the Fan Drawer

In the fan drawer, an Air Filter can be added as an option. You must order this part through
your next level of support.
1
Warning!
The air filter cannot be replaced when the RMX 4000 unit is ON.
2
3
4
Polycom, Inc.
Carefully slide the Fan drawer out through the front panel.
Slide in the replacement Fan drawer.
Push the Fan drawer firmly into the Backplane, making sure it is properly seated in its
slot.
Tighten the captive screws on the front panel of the Fan drawer to the chassis.
Ensure that the power switch/circuit switch on the RMX 4000 is turned OFF (O).
Unscrew the captive screws on the front panel of the Fan drawer secured to the Fan
chassis.

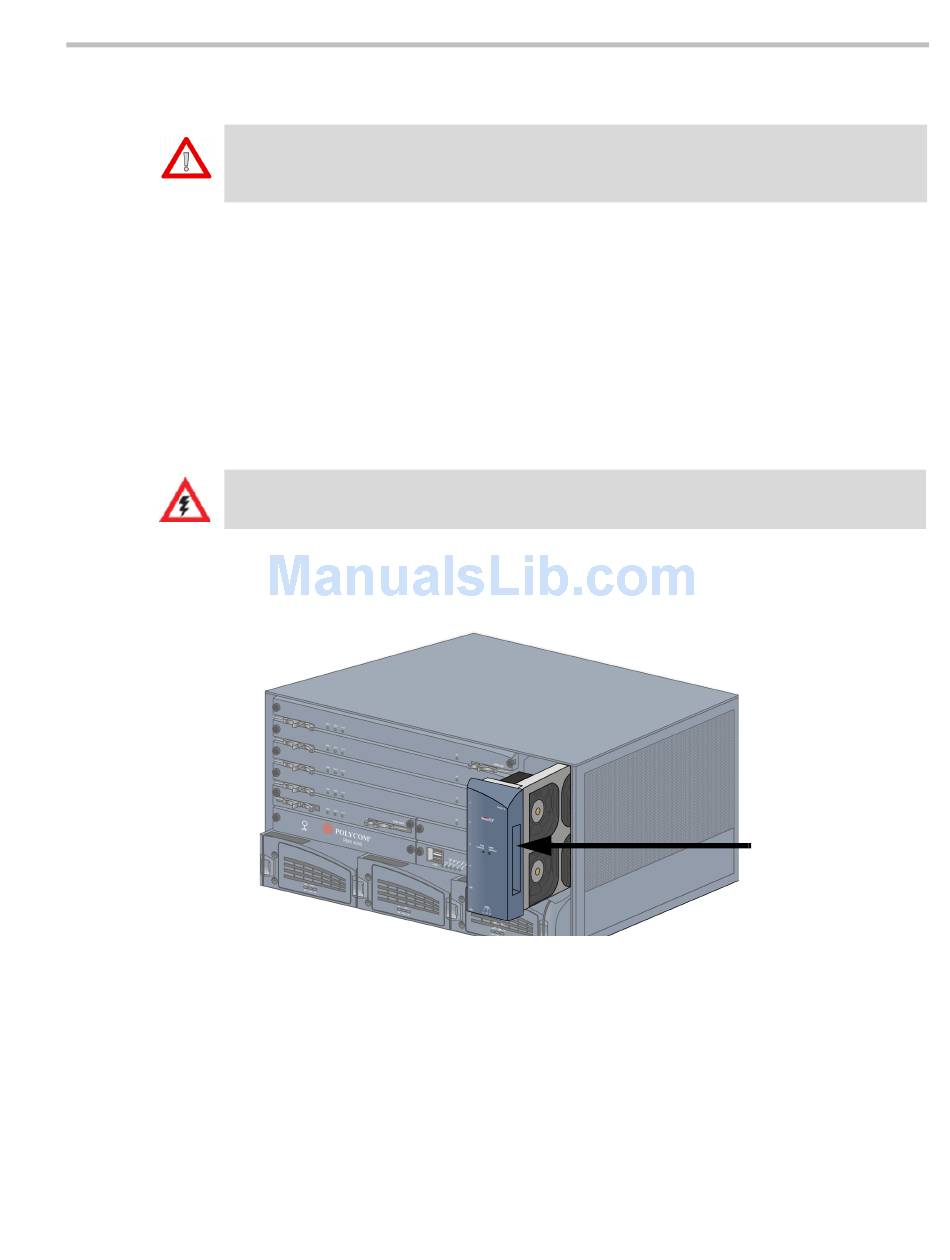

Use the finger grip, pull the Fan drawer out of its slot in the Backplane.
Carefully slide the Fan drawer out through the front panel.
Chapter 2-Component Replacement
Finger
grip
2-7
