3.0Signal Definitions; Figure 3-1. Signal Groups - AMD Geode SC3200 Data Book

Signal Definitions
This section defines the signals and describes the external
interface of the SC3200. Figure 2-1 shows the signals
organized by their functional groups. Where signals are
multiplexed, the default signal name is listed first and is
System
Interface
Memory
Interface
ACCESS.bus
Interface
Parallel Port/
TFT Interface
Video Port
Interface
Note: Straps are not the default signal, shown with system signals for reader convenience. However, also listed in figure with the
appropriate functional group.
AMD Geode™ SC3200 Processor Data Book
separated by a plus sign (+). A slash (/) in a signal name
means that the function is always enabled and available
(i.e., cycle multiplexed).
POR#
X32I
X32O
X27I
X27O
PCIRST#
BOOT16+ROMCS#
LPC_ROM+PCICLK1
TFT_PRSNT+SDATA_OUT
Straps
FPCI_MON+PCICLK0
DID0+GNT0#, DID1+GNT1#
MD[63:0]
MA[12:0]
BA[1:0]
CS[1:0]#
AMD Geode™
RASA#
SC3200
CASA#
Processor
WEA#
DQM[7:0]
CKEA
SDCLK[3:0]
SDCLK_IN
SDCLK_OUT
AB1C+GPIO20+DOCCS#
AB1D+GPIO1+IOCS1#
GPIO12+AB2C
GPIO13+AB2D
ACK#+TFTDE
AFD#/DSTRB#+TFTD2
BUSY/WAIT#+TFTD3
ERR#+TFTD4
INIT#+TFTD5
PD7+TFTD13
PD6+TFTD1
PD[5:0]+TFTD[11:6]
PE+TFTD14
SLCT+TFTD15
SLIN#/ASTRB#+TFTD16
STB#/WRITE#+TFTD17
VPD[7:0]
VPCKIN

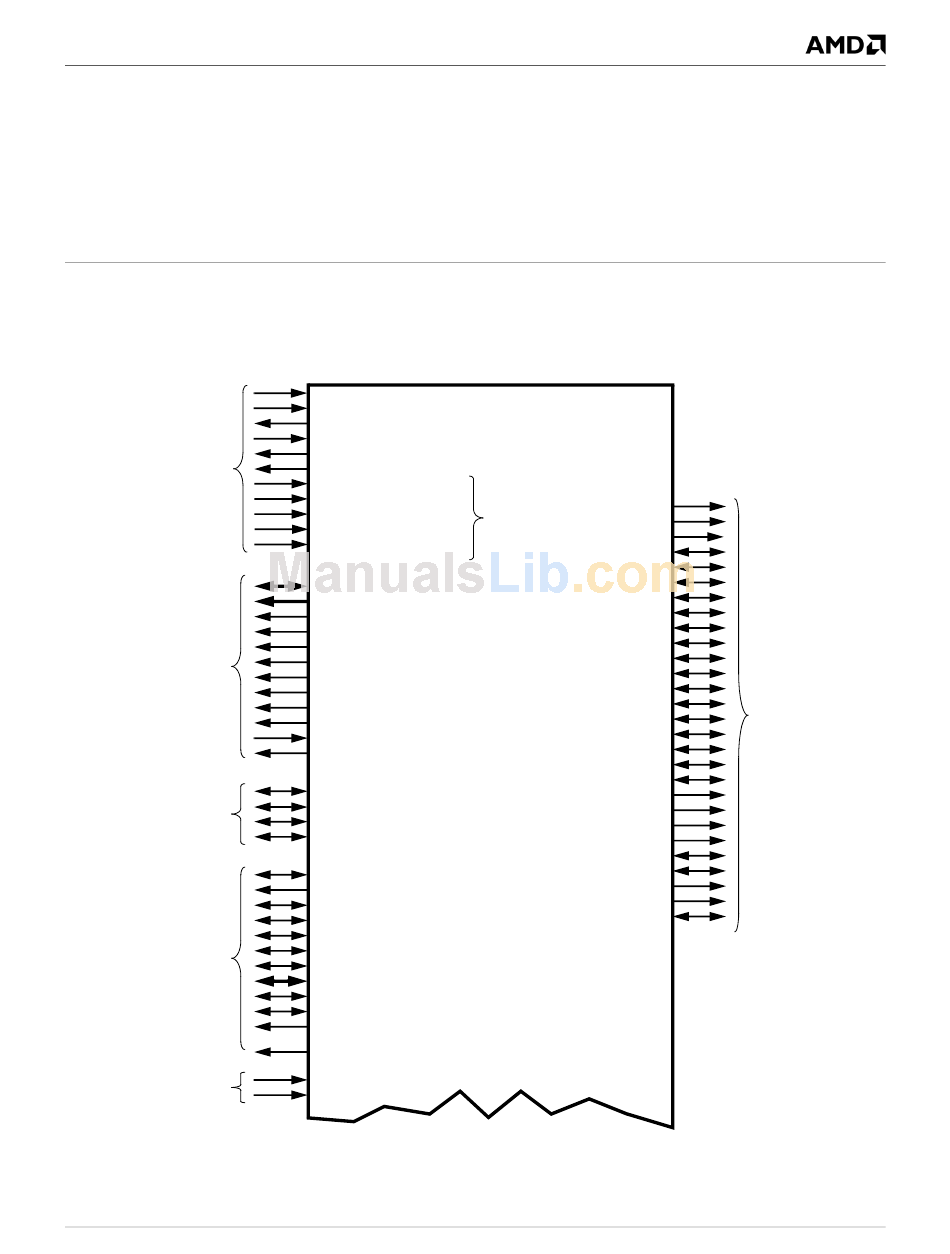

Figure 3-1. Signal Groups

32581C

3.0Signal Definitions

IDE_ADDR2+TFTD4
IDE_ADDR1+TFTD2
IDE_ADDR0+TFTD3
IDE_DATA15+TFTD7
IDE_DATA14+TFTD17
IDE_DATA13+TFTD15
IDE_DATA12+TFTD13
IDE_DATA11+GPIO41
IDE_DATA10
IDE_DATA9
IDE_DATA8+GPIO40
IDE_DATA7+INTD#
IDE_DATA6+IRQ9
IDE_DATA5+CLK27M
IDE_DATA4+FP_VDD_ON
IDE_DATA3+TFTD12
IDE_DATA2+TFTD14
IDE_DATA1+TFTD16
IDE_DATA0+TFTD6
IDE_IOR0#+TFTD10
IDE_IOW0#+TFTD9
IDE_CS0#+TFTD5
IDE_CS1#+TFTDE
IDE_IORDY0+TFTD11
IDE_DREQ0+TFTD8
IDE_DACK0#+TFTD0
IDE_RST#+TFTDCK
IRQ14+TFTD1
3
IDE/TFT
Interface
25
