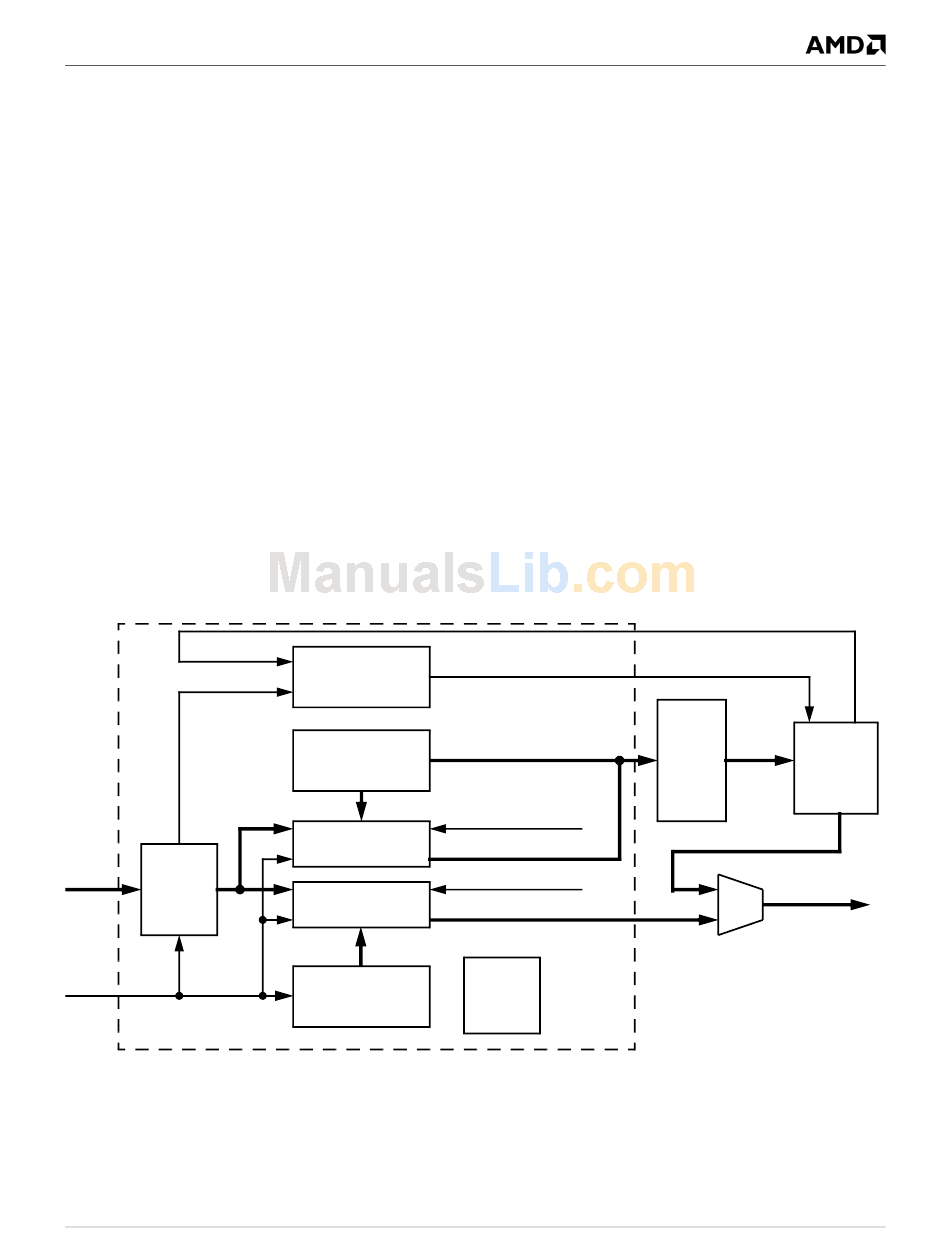

Figure 7-4. Vip Block Diagram - AMD Geode SC3200 Data Book

Video Processor Module
7.2.1 Video Input Port (VIP)
The VIP block is designed to interface the SC3200 with
external video processors (e.g., Philips PNX1300 or Sigma
Designs EM8400) or external TV decoders (e.g., Philips
SAA7114). It inputs CCIR-656 Video and raw VBI data
sourced by those devices, decodes the data, and delivers
the data directly to the Video Formatter (Direct Video
mode) or to the GX1 module's video frame buffer (Capture
Video/VBI modes). Figure 7-4 shows a diagram of the VIP
block.
From the VIP block's perspective, Direct Video mode is
always on. There are no registers that enable/disable
Direct Video mode. The data source selected at the video
mux (F4BAR0+Memory Offset 400h[1:0]) determines if the
data from the VIP interface is moved directly or must be
captured.
Two FIFOs in the VIP block support the efficient movement
of Video and VBI data. For Capture Video/VBI modes, a
128-byte FIFO buffers both Video and raw VBI data pro-
cessed by the CCIR-656 decoder. For Direct Video mode,
there is a 2048-byte FIFO that buffer the CCIR-656
decoder's video data. The FIFOs are also used to provide
clock domain changes. The VIP interface clock (nominally
27 MHz) is the input clock domain for both FIFOs. For the
Capture Video/VBI FIFO, the data is clocked out using the
FPCI clock (33 or 66 MHz). For the Direct Video FIFO, the
