Chapter 1: SP601 Evaluation Board
References
Technical information on the Silicon Labs CP2103GM and the VCP drivers can be found on
their website at https://www.silabs.com/Pages/default.aspx.
In addition, see some of the Xilinx UART IP specifications at:
•
•
•

7. IIC Bus

The SP601 IIC bus hosts four items:
•
•
•
•
The SP601 IIC bus topology is shown in
X-Ref Target - Figure 1-13
The IIC Bus on the SP601 provides access to a 2-pin header, the onboard 8-Kb EEPROM,
and the VITA 57.1 FMC interface. The user must ensure there are no IIC address conflicts
with the onboard EEPROM address when attaching additional IIC devices via FMC or the
IIC 2-pin header. Note that FMC Mezzanine cards are designed with 2-Kb IIC EEPROMs
and will not conflict with the Carrier Card (SP601) 8-Kb EEPROM address range. This is
because 2-Kb EEPROMs reside below the 8-Kb EEPROM space. See the VITA 57.1
specification along with any IIC 2-Kbit EEPROM data sheet for more details.
26
http://www.xilinx.com/support/documentation/ip_documentation/opb_uartlite.pdf
http://www.xilinx.com/support/documentation/ip_documentation/xps_uartlite.pdf
http://www.xilinx.com/support/documentation/ip_documentation/xps_uart16550.pdf
FPGA U1 IIC interface
2-pin IIC external access header
8-Kb NV Memory
VITA 57.1 FMC Connector J1
U1
IIC_SDA_MAIN
FPGA IIC
INTERFACE
IIC_SCL_MAIN

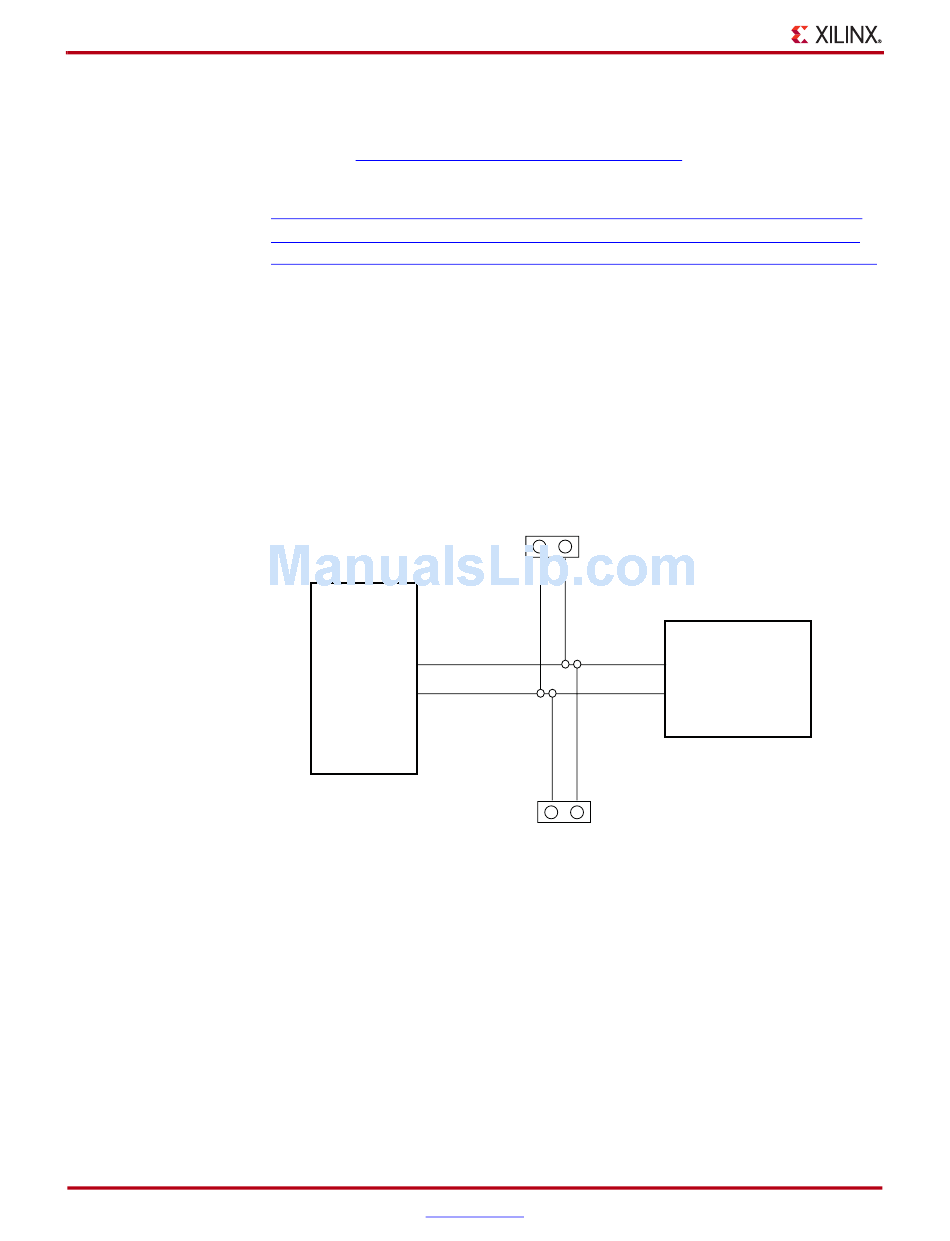

Figure 1-13: IIC Bus Topology
www.xilinx.com
Figure 1-13.
VITA 57.1 FMC-LPC
GA0=1
FMC-LPC
GA1=0
J1
C30 C31
M24 C08-WDW6TP
2 1
J16
IIC EXTERNAL
ACCESS
CONNECTOR
SP601 Hardware User Guide
UG518 (v1.1) August 19, 2009
U7
ST MICRO
Address range
54-56
0b1010100-
0b1010110
UG518_13_070809
