SP701 Evaluation Kit

Quick Start Guide

The Xilinx® Spartan®-7 SP701 Evaluation Kit contains all the necessary hardware, tools, and IP to evaluate and

develop your Spartan-7 FPGA design. This guide provides instructions for running the SP701 built-in self-test (BIST)

and installing the Xilinx tools.

SP701 Evaluation Kit

X-Ref Target - Figure 1-1

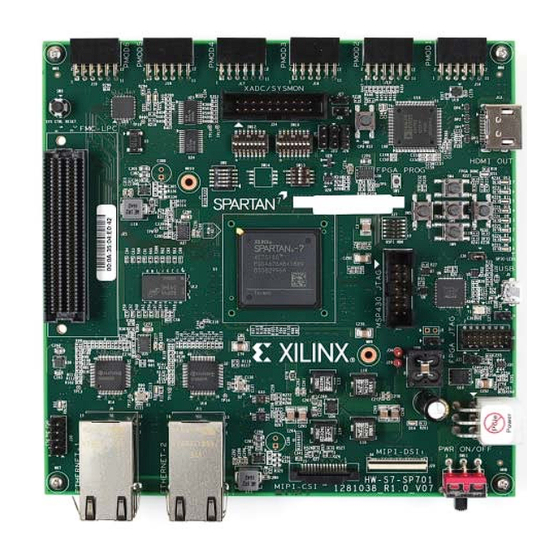

SP701 Evaluation Board

Ethernet Cable

Micro USB Cable

Power Cords and

Adapters

For more information, visit www.xilinx.com/SP701.

Send Feedback

Table of Contents

Need help?

Do you have a question about the Spartan-7 SP701 and is the answer not in the manual?

Page 1: Quick Start Guide
SP701 Evaluation Kit Quick Start Guide The Xilinx® Spartan®-7 SP701 Evaluation Kit contains all the necessary hardware, tools, and IP to evaluate and develop your Spartan-7 FPGA design. This guide provides instructions for running the SP701 built-in self-test (BIST) and installing the Xilinx tools.
Page 2 Connect the 6-pin power supply plug to J30, and power up the board using the SW11 switch. Power on LED D14 for 12 V lets you know power is switched on and present. When DONE LED DS1 glows blue, the Spartan-7 FPGA is configured successfully. X-Ref Target - Figure 1-3 www.xilinx.com Send Feedback...
Page 3 A passing test is indicated when GPIO LED 1 is ON. X-Ref Target - Figure 1-4 To run the built-in self-test again, press SW1 (PROG). X-Ref Target - Figure 1-5 For information on testing FMC board interfaces, visit www.xilinx.com/SP701. www.xilinx.com Send Feedback...
Page 4 © Copyright 2019 Xilinx, Inc. Xilinx, the Xilinx logo, Artix, ISE, Kintex, Spartan, Virtex, Vivado, Zynq, and other designated brands included herein are trademarks of Xilinx in the United States and other countries. All other trademarks are the property of their respective owners.
