3-18 Configuring the Hub

Using the STP Cascade Connector

By default, all ports on an STP media module are physically configured as M
ports. If you want to configure the module for a B/A or S/M connection, you
must use one or two STP cascade connectors to allow the new configuration.
(The STP cascade connector gets its name from its use in connecting a series of
rack-mounted hubs in which the connecting cascade cables "flow" from one hub
down to the next.)

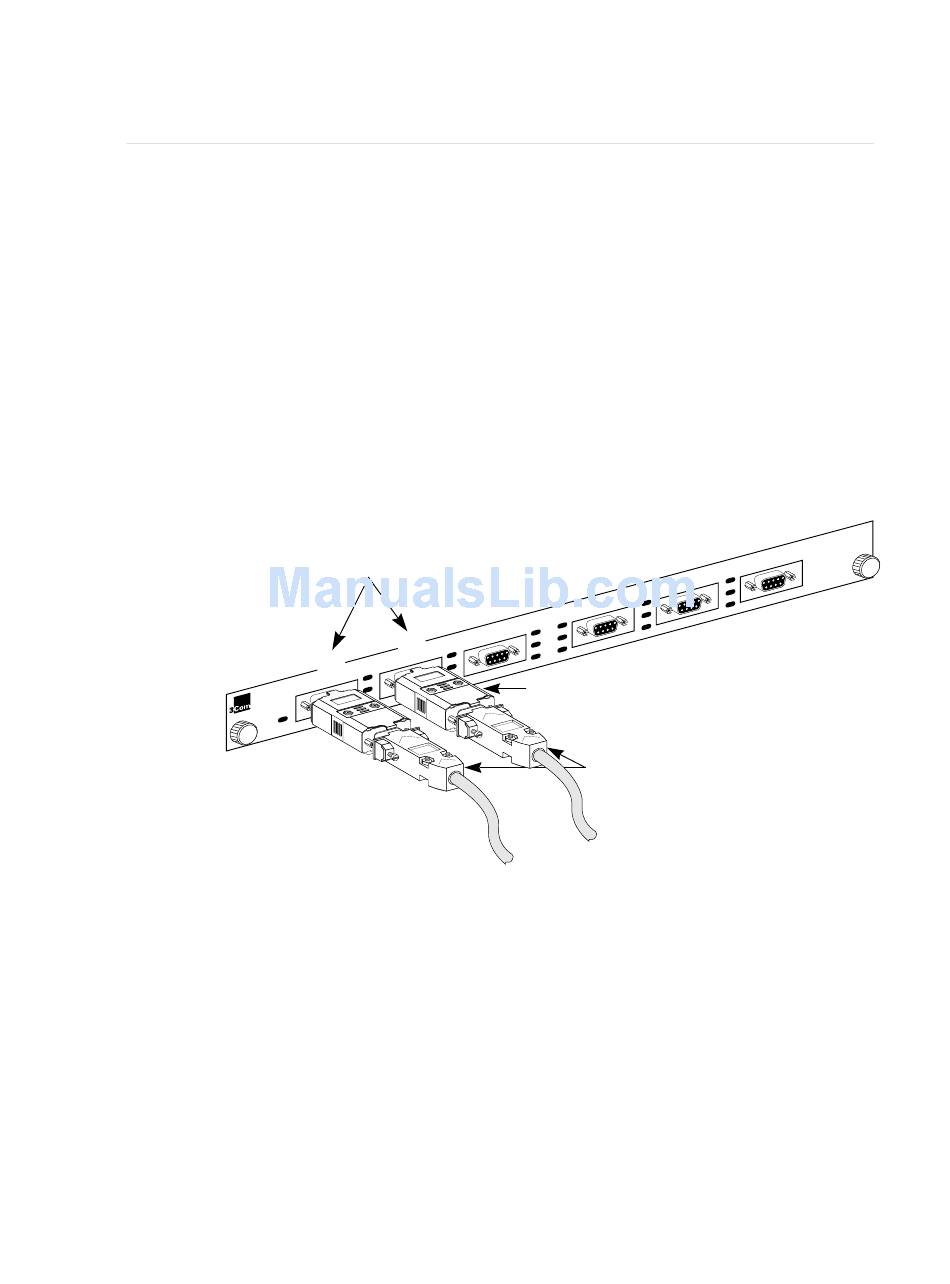

Figure 3-7 shows two STP cascade connectors installed on an STP module to
allow dual attachment configuration.
Slot 1
Figure 3-7. Using Two STP Cascade Connectors to Allow a Dual Attachment
Configuration
Port
types
A
B
C T
D E T E
N A L
= S IG A T E
R T S T
G R N
= P O O R
K E R R
G R N
= L IN
Y E L
®
P W R
Cascade connectors
DAS connections
B
A
C A R D
P O R T
S T P
