STP Media Port Module

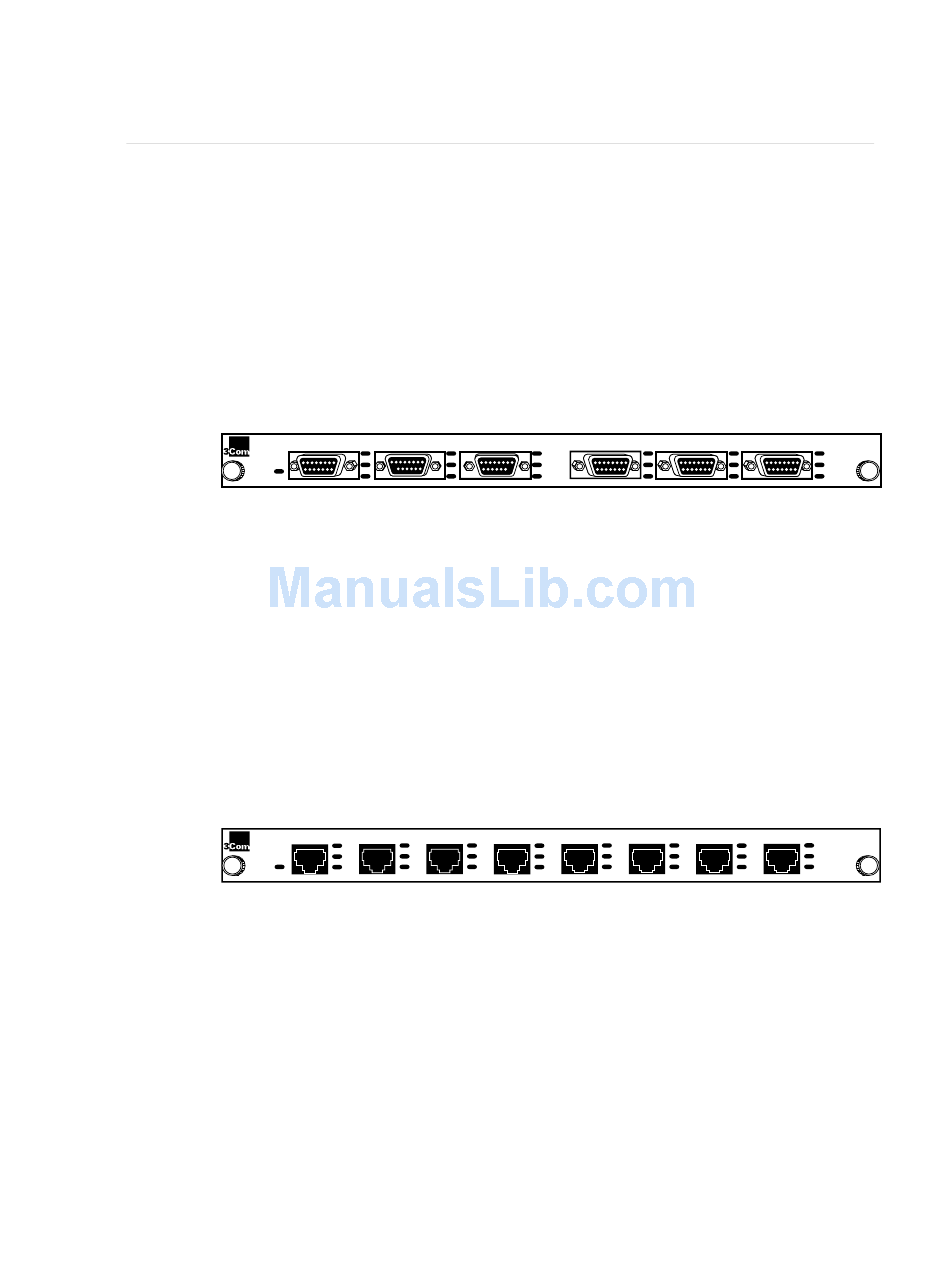

Figure 1-8 shows the front panel of the six-port STP media port module. All of
its ports are configured as M ports by default. You can specify any port
configuration for the attachment ports, but you must use a special connector
called the STP cascade connector to configure the leftmost attachment port as S.
To configure the attachment ports as B and A requires two cascade connectors.
Refer to Chapter 2 for additional information on the STP cascade connector.
Figure 1-8. STP Media Port Module, Front Panel
If you install an STP module in each of the three hub slots, 18 STP ports are
available.

UTP Media Port Module

Figure 1-9 shows the front panel of the UTP media port module, which provides
eight ports configured as M ports by default. You can specify any port
configuration (B/A, S/M, or M/M) for the attachment ports. No adapter or
special connector is needed for the UTP module. If you install three UTP
modules in the hub, 24 UTP ports are available.
Figure 1-9. UTP Media Port Module, Front Panel
GRN = SIGNAL DETECT
GRN = PORT STATE
YEL = LINK ERROR
®
PWR
GRN = SIGNAL DETECT
GRN = PORT STATE
YEL = LINK ERROR
®
PWR
STP PORT MODULE
UTP PORT MODULE
