Centering originals
Printing Originals Centered on Rolls (Mac OS 9)
This topic describes how to center originals before printing on rolls based on the following example.
•
Document: Any type
•
Page size: A4 (210.0×297.0 mm)/Letter (8.3 × 11.7 in)
•
Paper: Roll
•
Paper type: Plain Paper
•
Roll paper width: A3/A4 roll (297.0 mm [11.7 in])
1.
Select the printer in Chooser.
2.

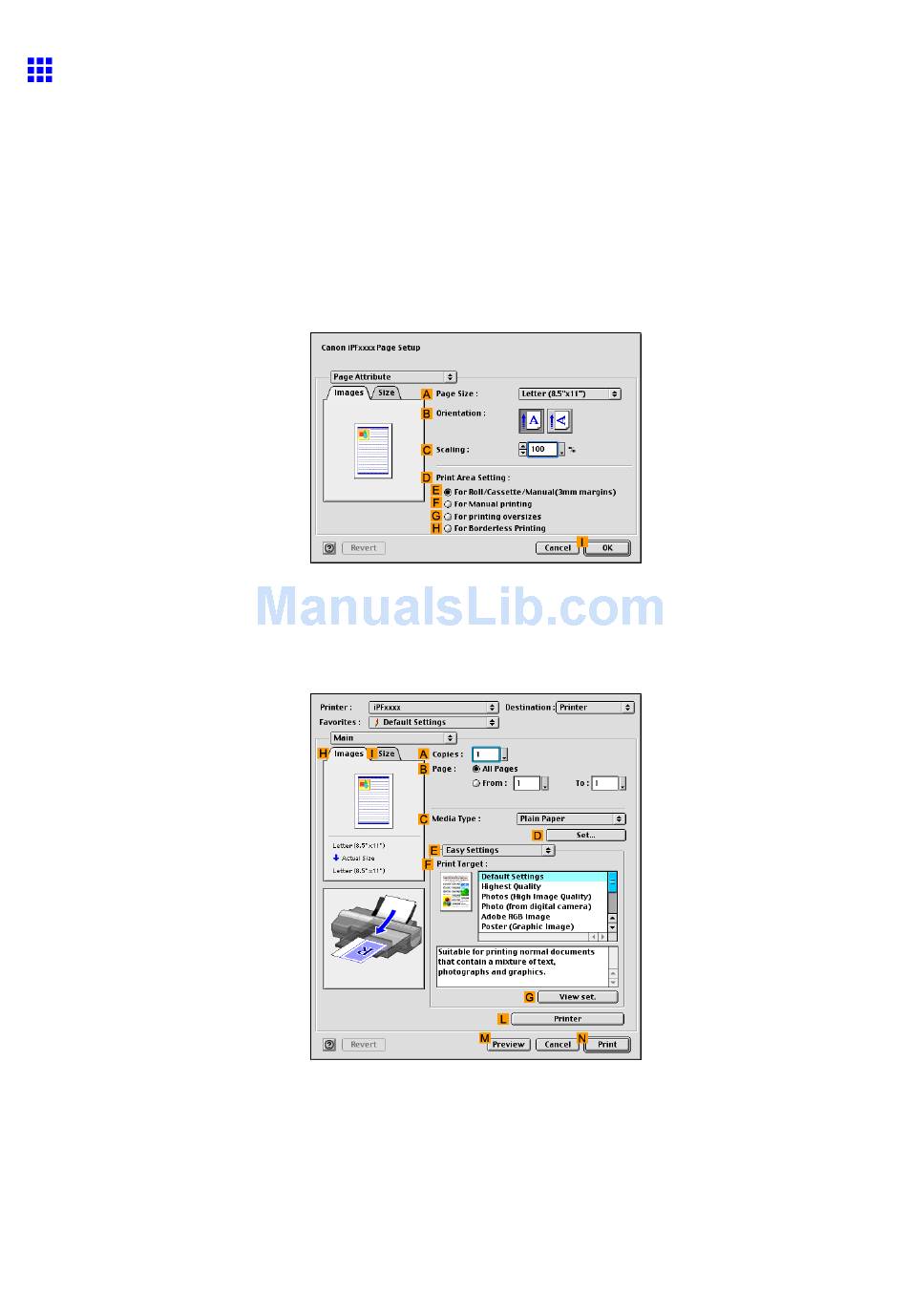

Choose Page Setup from the application menu to display the Page Attribute dialog box.
3.
A
In Page Size, click the size of the original. In this case, click ISO A4.
4.
I
Click OK to close the dialog box.
5.
Choose Print in the application menu.
6.
Make sure the Main pane is displayed.
7.
C
In the Media Type list, select the type of paper that is loaded. In this case, click Plain Paper.
8.
Select the print target in the
412 Enhanced Printing Options
F
Print Target list.
