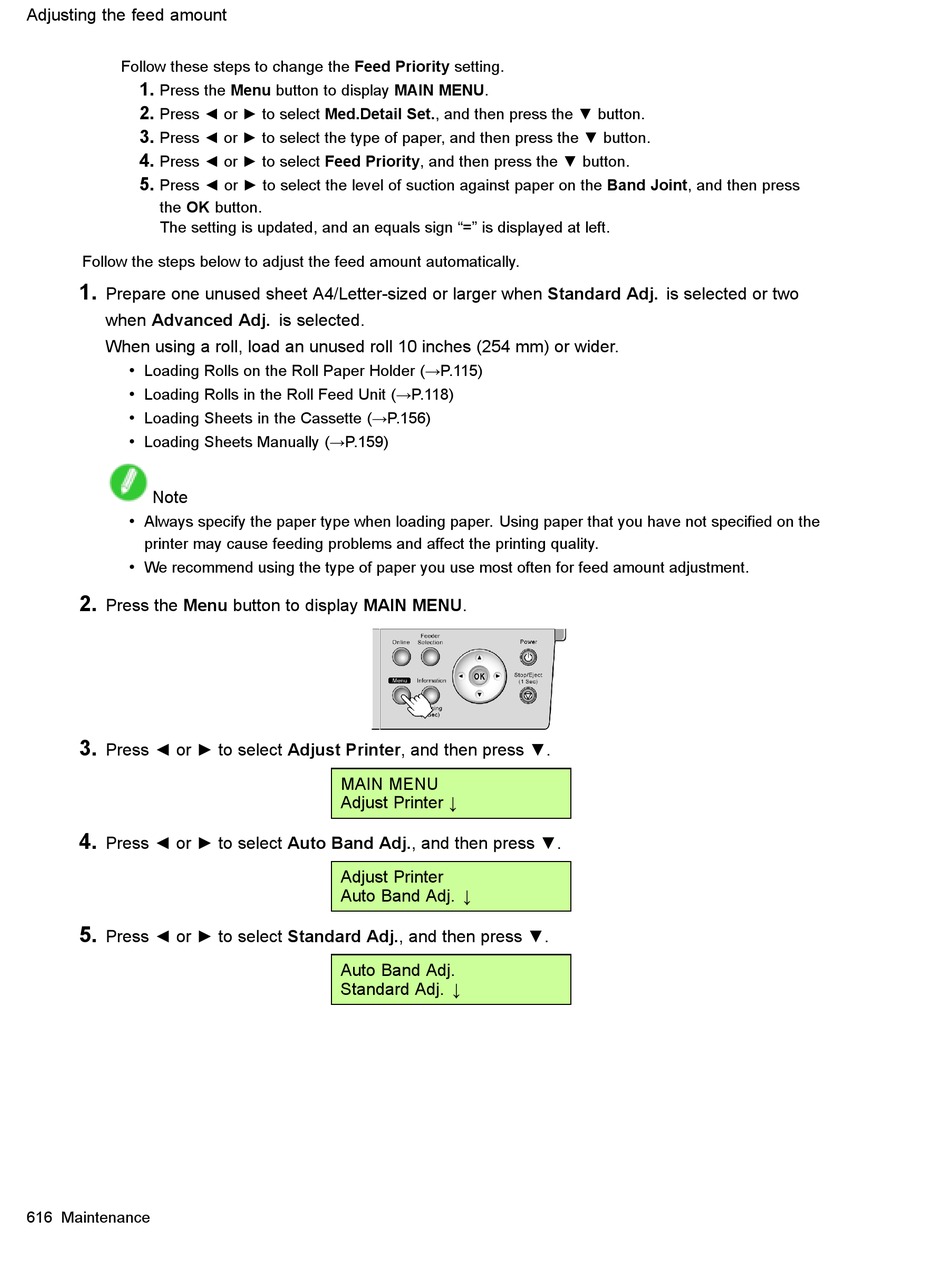

Adjusting the feed amount
Follow these steps to change the Feed Priority setting.
1.
Press the Menu button to display MAIN MENU.
2.
Press ◄ or ► to select Med.Detail Set., and then press the ▼ button.
3.
Press ◄ or ► to select the type of paper, and then press the ▼ button.
4.
Press ◄ or ► to select Feed Priority, and then press the ▼ button.
5.
Press ◄ or ► to select the level of suction against paper on the Band Joint, and then press
the OK button.
The setting is updated, and an equals sign "=" is displayed at left.
Follow the steps below to adjust the feed amount automatically.
1.
Prepare one unused sheet A4/Letter-sized or larger when Standard Adj. is selected or two
when Advanced Adj. is selected.
When using a roll, load an unused roll 10 inches (254 mm) or wider.
•
Loading Rolls on the Roll Paper Holder (→P.115)
•
Loading Rolls in the Roll Feed Unit (→P.118)
•
Loading Sheets in the Cassette (→P.156)
•
Loading Sheets Manually (→P.159)
Note
•
Always specify the paper type when loading paper. Using paper that you have not specied on the
printer may cause feeding problems and affect the printing quality.
•
We recommend using the type of paper you use most often for feed amount adjustment.
2.
Press the Menu button to display MAIN MENU.
3.
Press ◄ or ► to select Adjust Printer, and then press ▼.
4.
Press ◄ or ► to select Auto Band Adj., and then press ▼.
5.
Press ◄ or ► to select Standard Adj., and then press ▼.
616 Maintenance
MAIN MENU
Adjust Printer ↓
Adjust Printer
Auto Band Adj. ↓
Auto Band Adj.
Standard Adj. ↓
