5.
Press ◄ or ► to select Yes, and then press the OK button.
The setting is updated, and an equals sign "=" is displayed at left.
A test pattern is printed for printhead adjustment.
6.
After Adj.Setting is displayed, press ▼.
7.
Press ▼.
8.

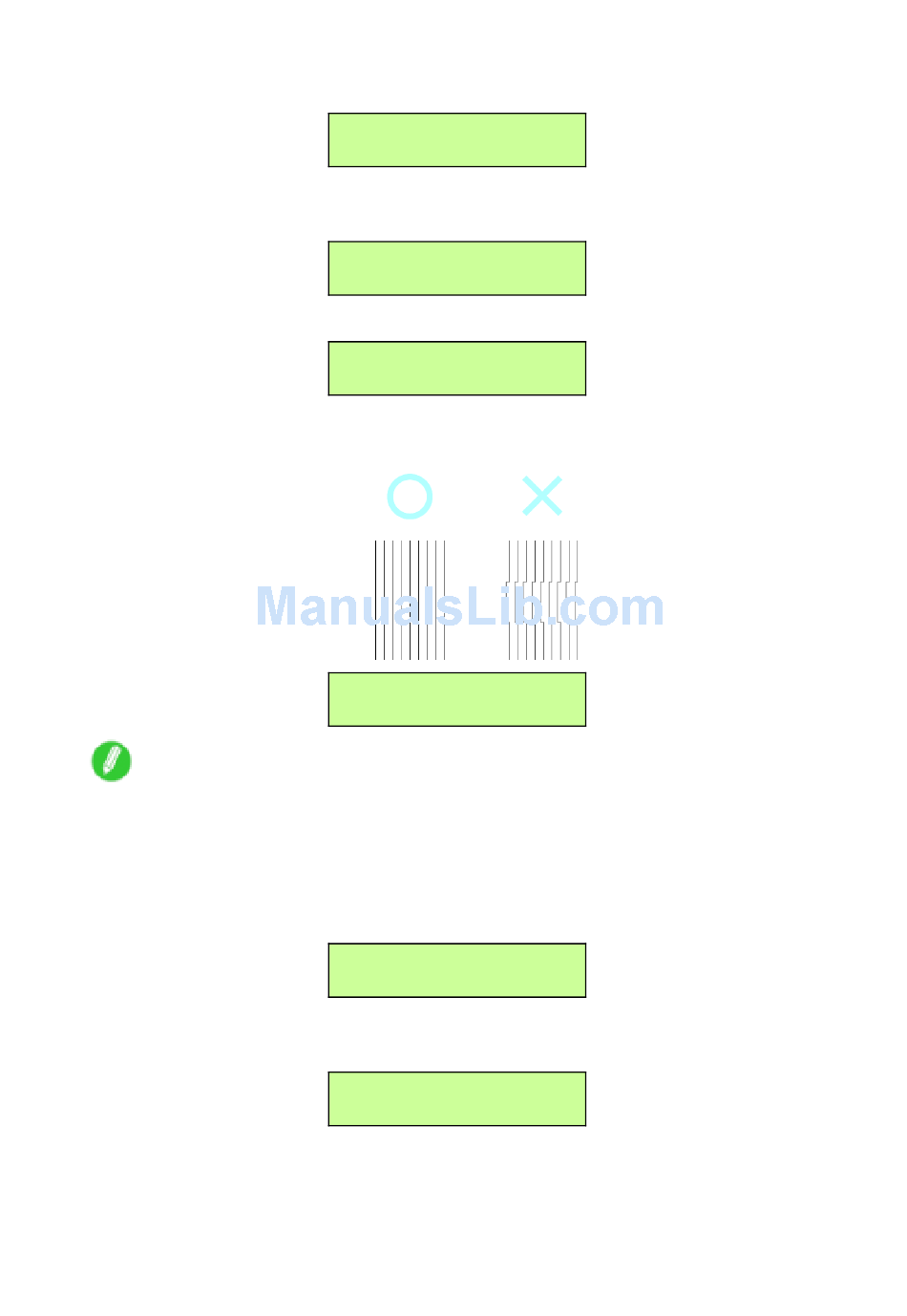

Examine test pattern D-1 for printhead adjustment. After you determine the pattern with straight
lines, press ◄ or ► to choose the pattern number, and then press the OK button.
Note
•
If you cannot determine the pattern with straight lines, choose an intermediate value. For example,
choose 11 if you cannot decide whether pattern 10 or 12 is better.
9.
Repeat steps 7 and 8 to specify the adjustment value for D-2 to D-5 and D-7 to D-11.
10.
Press ▲.
11.
Press ◄ or ► to select Save Settings, and then press ▼.
12.
Press ◄ or ► to select Yes, and then press the OK button.
The setting is updated, and an equals sign "=" is displayed at left.
The printer now goes online.
Manual Head Adj
= Yes
Adj.Setting
D ↓
D
D-1
D-1
=10 ↓
Adj.Setting
Save Settings ↓
Save Settings
= Yes
Adjusting the Printhead
Maintenance 613
