Handling sheets
Important
•

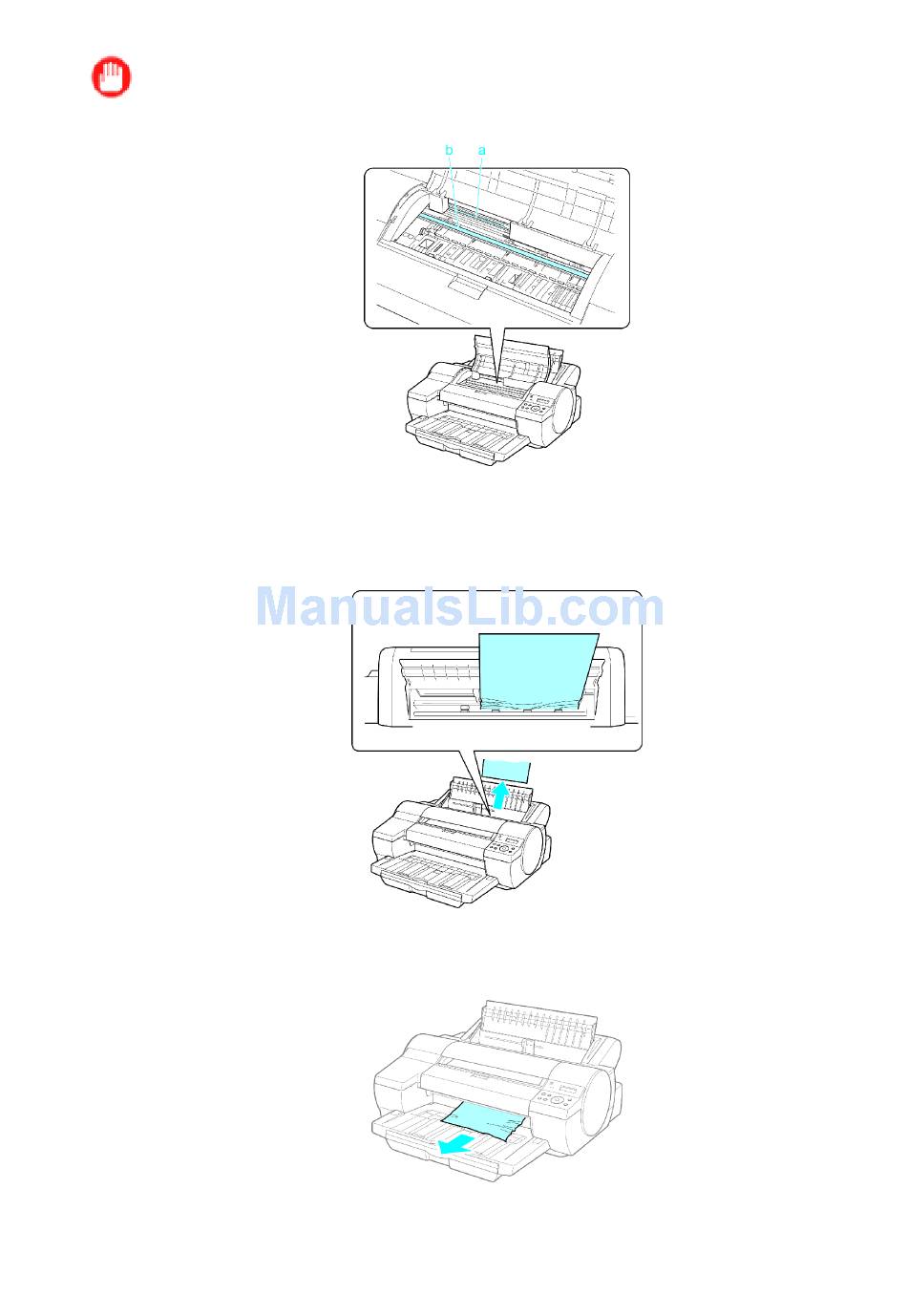

Do not touch the Linear Scale (a) or Carriage Shaft (b).
•
If paper is jammed by the Paper Feed Slot of the Tray
Remove the jammed paper from the Paper Feed Slot.
After removing the paper, make sure there are no other scraps of paper in the printer. If paper is
jammed deep in the Paper Feed Slot (→P.181), remove the Roll Feed Unit and clear the paper jam.
•
If the paper is jammed by the Output Tray Output Tray
Remove the jammed paper from the Output Tray.
After removing the paper, make sure there are no other scraps of paper in the printer.
180 Handling Paper
