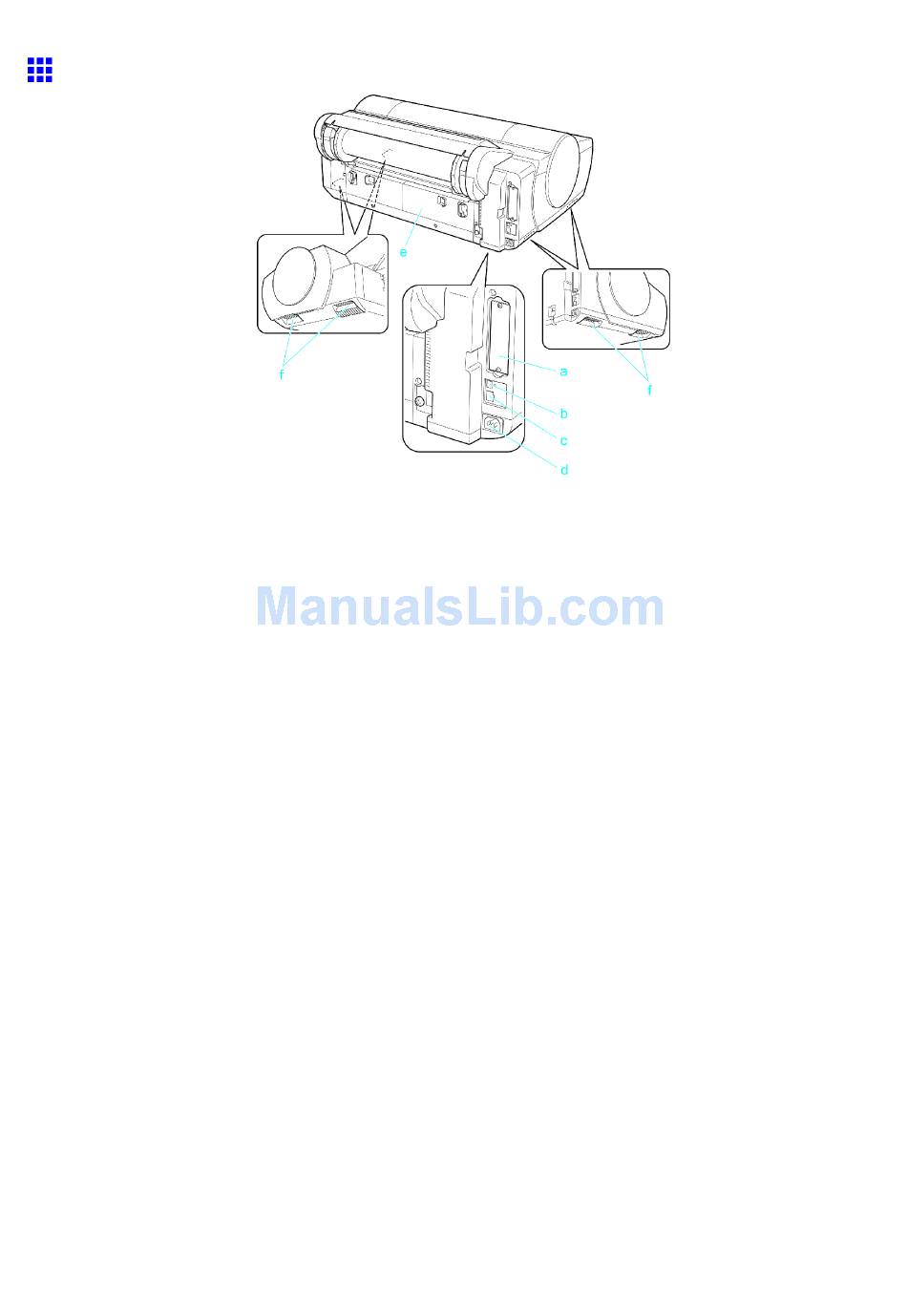

Printer parts

Back

a. Expansion Board Slots
For installing an IEEE 1394 (FireWire) expansion board, as desired.
b. USB Port
Connect a USB cable to this port. This port is compatible with USB 2.0 High Speed mode.
c. Ethernet Port
Connect an Ethernet cable to this port.
d. Power Supply Connector
Connect the power cord to this connector.
e. Back Cover
Open this cover to remove any jammed paper when printing from the Cassette, as needed.
f. Carrying handles (Four Positions)
When carrying the printer, hold it by these handles under both sides.
