Installing The Roll Feed Unit - Canon imagePROGRAF iPF5100 User Manual

Handling rolls

Installing the Roll Feed Unit

1.

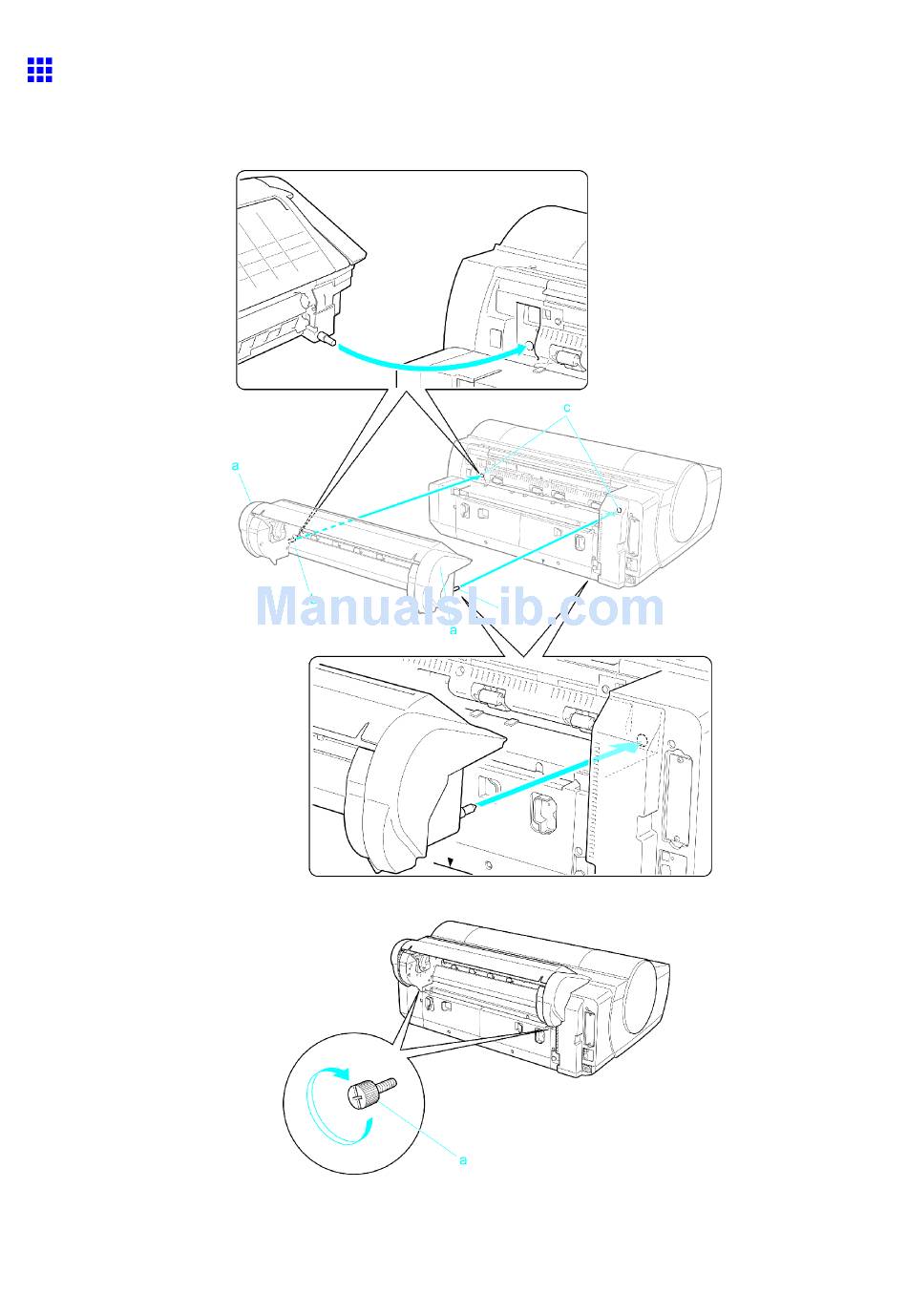

Holding the Roll Feed Unit by the Carrying handles (a), insert the two pins of the Roll Feed Unit
(b) into the each hole on the back of the printer (c).
2.
Use a coin to tighten the two screws on the back of the Roll Feed Unit (a) to secure it to the printer.
148 Handling Paper
