Table of Contents

Advertisement

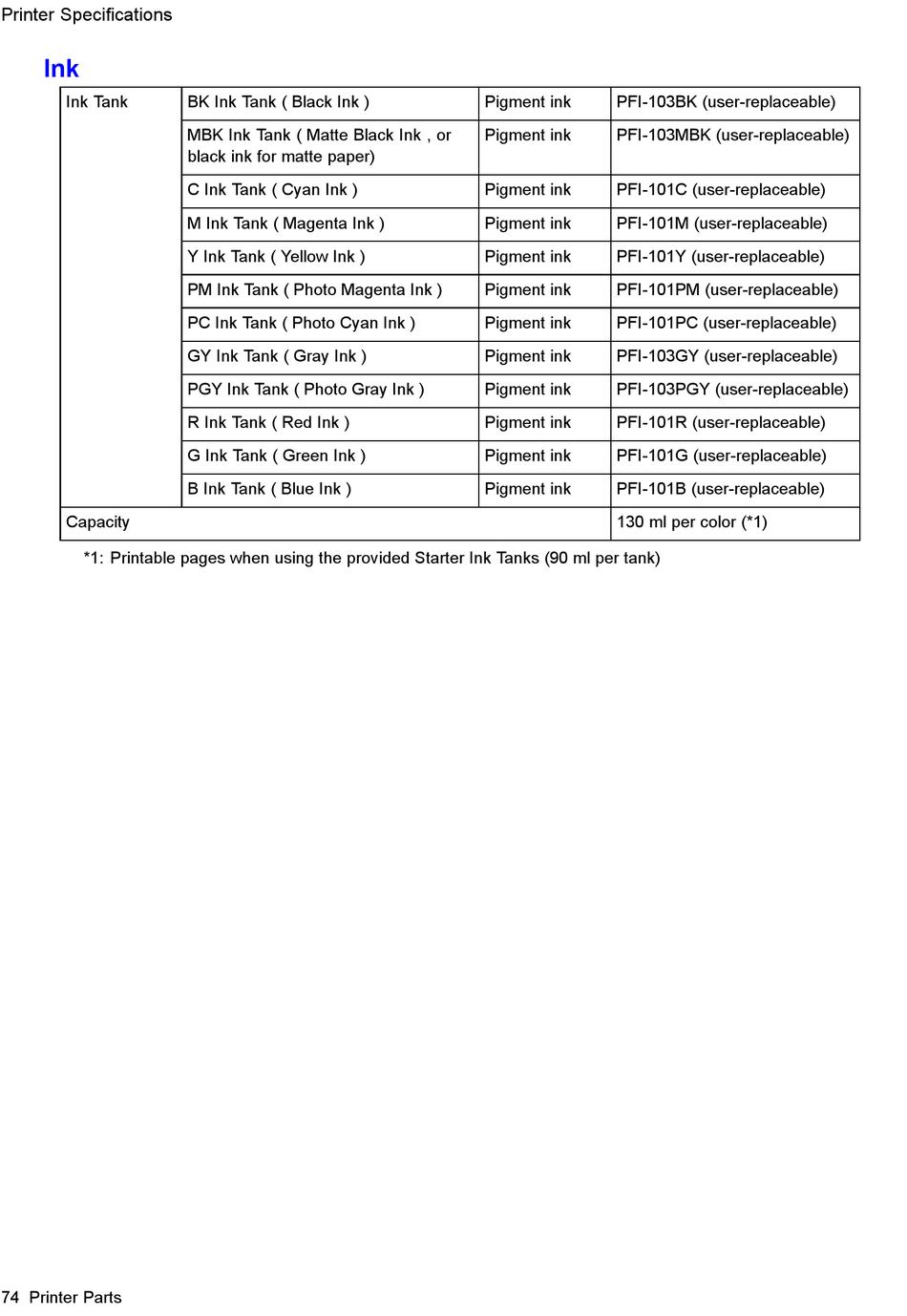

Printer Specications
Ink
Ink Tank
Capacity
*1: Printable pages when using the provided Starter Ink Tanks (90 ml per tank)
74 Printer Parts
BK Ink Tank ( Black Ink )
MBK Ink Tank ( Matte Black Ink , or
black ink for matte paper)
C Ink Tank ( Cyan Ink )
M Ink Tank ( Magenta Ink )
Y Ink Tank ( Yellow Ink )
PM Ink Tank ( Photo Magenta Ink )
PC Ink Tank ( Photo Cyan Ink )
GY Ink Tank ( Gray Ink )
PGY Ink Tank ( Photo Gray Ink )
R Ink Tank ( Red Ink )
G Ink Tank ( Green Ink )
B Ink Tank ( Blue Ink )
Pigment ink
PFI-103BK (user-replaceable)
Pigment ink
PFI-103MBK (user-replaceable)
Pigment ink
PFI-101C (user-replaceable)
Pigment ink
PFI-101M (user-replaceable)
Pigment ink
PFI-101Y (user-replaceable)
Pigment ink
PFI-101PM (user-replaceable)
Pigment ink
PFI-101PC (user-replaceable)
Pigment ink
PFI-103GY (user-replaceable)
Pigment ink
PFI-103PGY (user-replaceable)
Pigment ink
PFI-101R (user-replaceable)
Pigment ink
PFI-101G (user-replaceable)
Pigment ink
PFI-101B (user-replaceable)
130 ml per color (*1)
