Handling rolls

Handling rolls

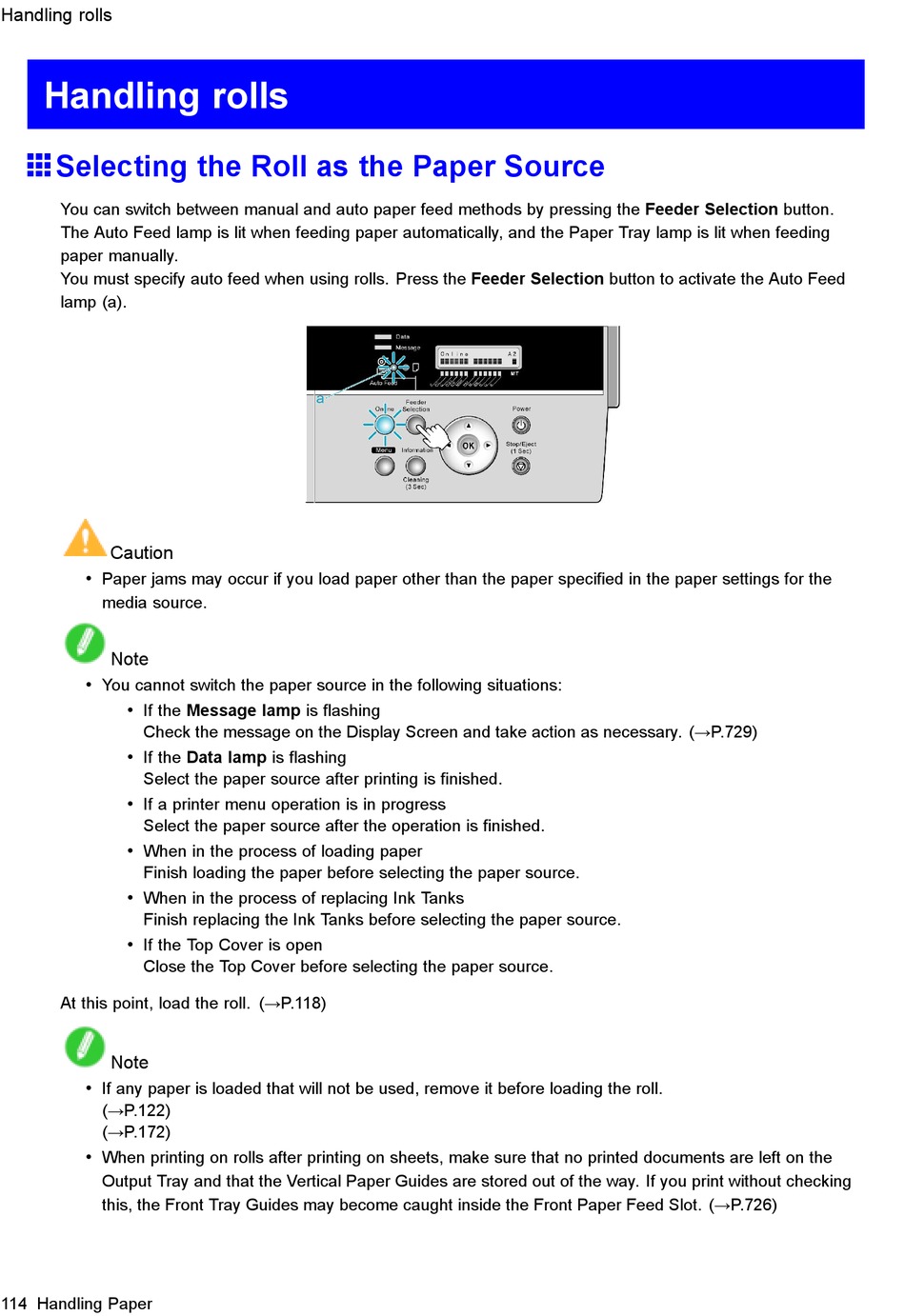

Selecting the Roll as the Paper Source

You can switch between manual and auto paper feed methods by pressing the Feeder Selection button.
The Auto Feed lamp is lit when feeding paper automatically, and the Paper Tray lamp is lit when feeding
paper manually.
You must specify auto feed when using rolls. Press the Feeder Selection button to activate the Auto Feed
lamp (a).
Caution
•
Paper jams may occur if you load paper other than the paper specied in the paper settings for the
media source.
Note
•
You cannot switch the paper source in the following situations:
•
If the Message lamp is ashing
Check the message on the Display Screen and take action as necessary. (→P.729)
•
If the Data lamp is ashing
Select the paper source after printing is nished.
•
If a printer menu operation is in progress
Select the paper source after the operation is nished.
•
When in the process of loading paper
Finish loading the paper before selecting the paper source.
•
When in the process of replacing Ink Tanks
Finish replacing the Ink Tanks before selecting the paper source.
•
If the Top Cover is open
Close the Top Cover before selecting the paper source.
At this point, load the roll. (→P.118)
Note
•
If any paper is loaded that will not be used, remove it before loading the roll.
(→P.122)
(→P.172)
•
When printing on rolls after printing on sheets, make sure that no printed documents are left on the
Output Tray and that the Vertical Paper Guides are stored out of the way. If you print without checking
this, the Front Tray Guides may become caught inside the Front Paper Feed Slot. (→P.726)
114 Handling Paper
