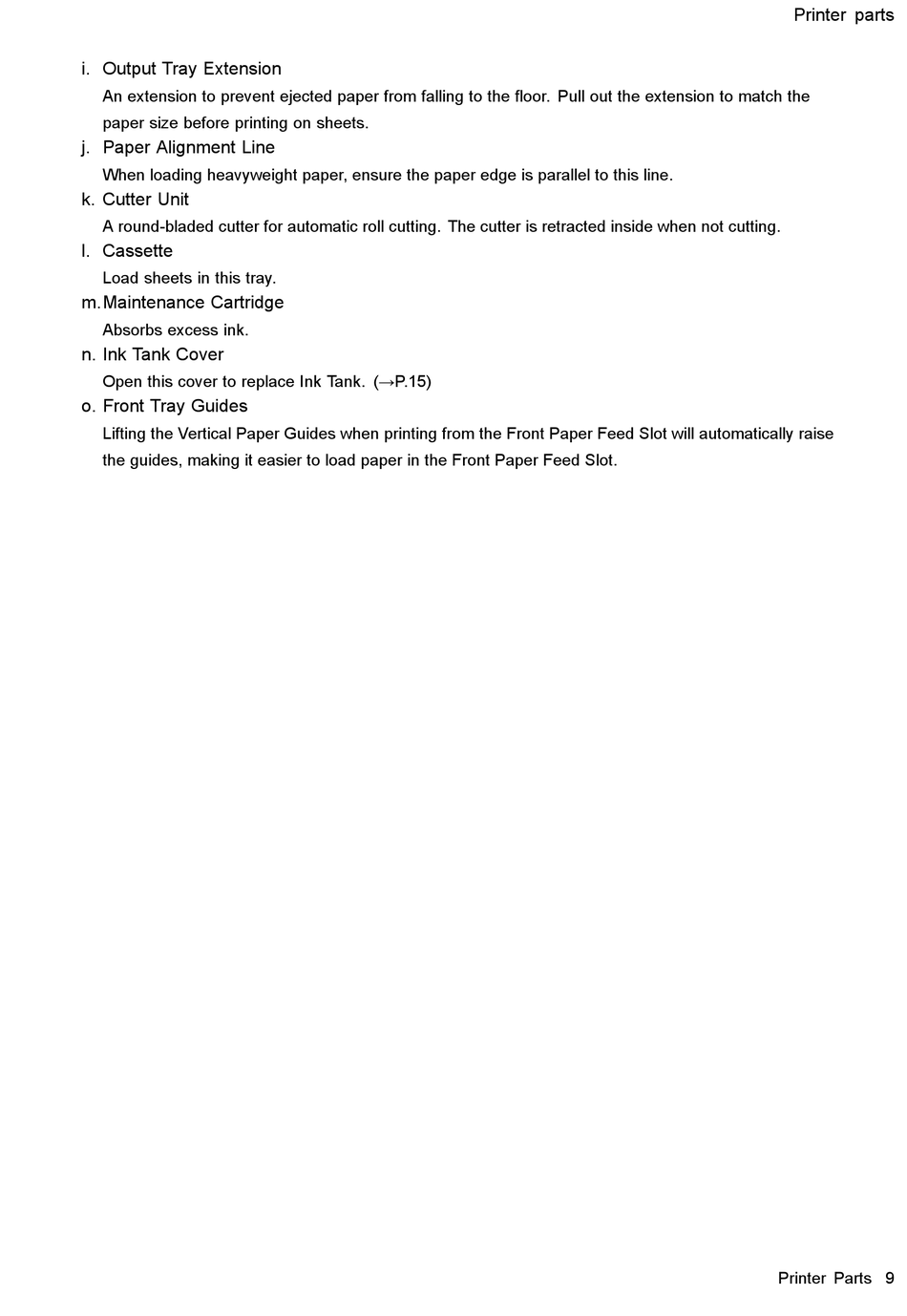

i. Output Tray Extension
An extension to prevent ejected paper from falling to the oor. Pull out the extension to match the
paper size before printing on sheets.
j. Paper Alignment Line
When loading heavyweight paper, ensure the paper edge is parallel to this line.
k. Cutter Unit
A round-bladed cutter for automatic roll cutting. The cutter is retracted inside when not cutting.
l. Cassette
Load sheets in this tray.
m.Maintenance Cartridge
Absorbs excess ink.
n. Ink Tank Cover
Open this cover to replace Ink Tank. (→P.15)
o. Front Tray Guides
Lifting the Vertical Paper Guides when printing from the Front Paper Feed Slot will automatically raise
the guides, making it easier to load paper in the Front Paper Feed Slot.
