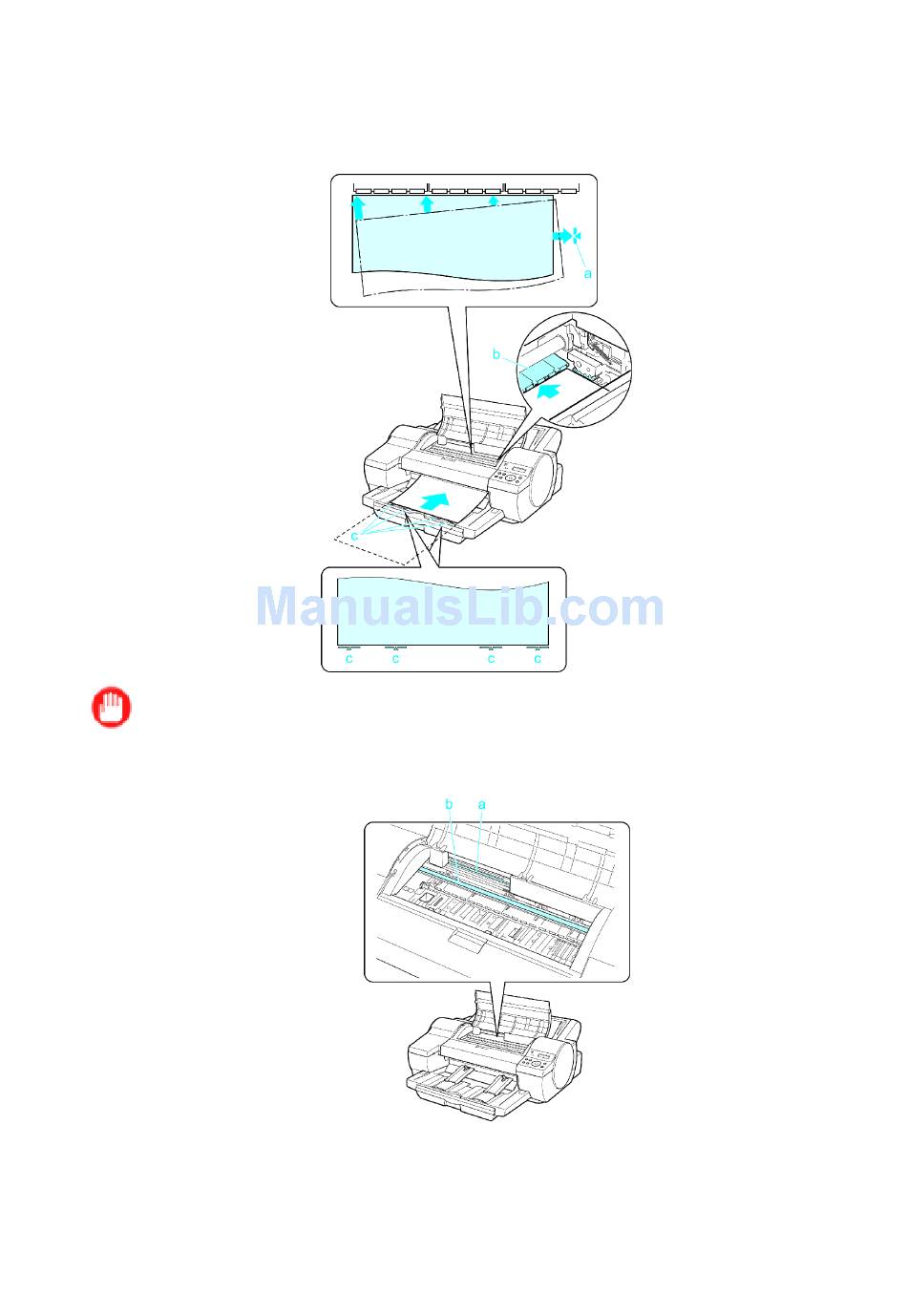

As you look in the Top Cover, align the right edge of the paper with the left edge of the Paper
Alignment Line (a) on the Platen. Insert the leading edge of the paper between the Platen and
Paper Retainer (b), keeping it parallel to the Paper Retainer (b), and align the paper with the
Paper Alignment Line (c) of the Output Tray.
Important
•
Never touch the Linear Scale (a) or Carriage Shaft (b). This may stain your hands and damage
the printer.
