Removing the Front Access Cover

To install or remove devices in the peripherals bay and to install or remove the hot-swap drive bay or
power supply bay, you need to remove the front access cover. To remove the front access cover:
1. Remove the three cover screws, as shown in Figure 4.
2. While lightly pressing down on the cover, slide it toward the front of the chassis.
3. Lift the cover up and off of the chassis.

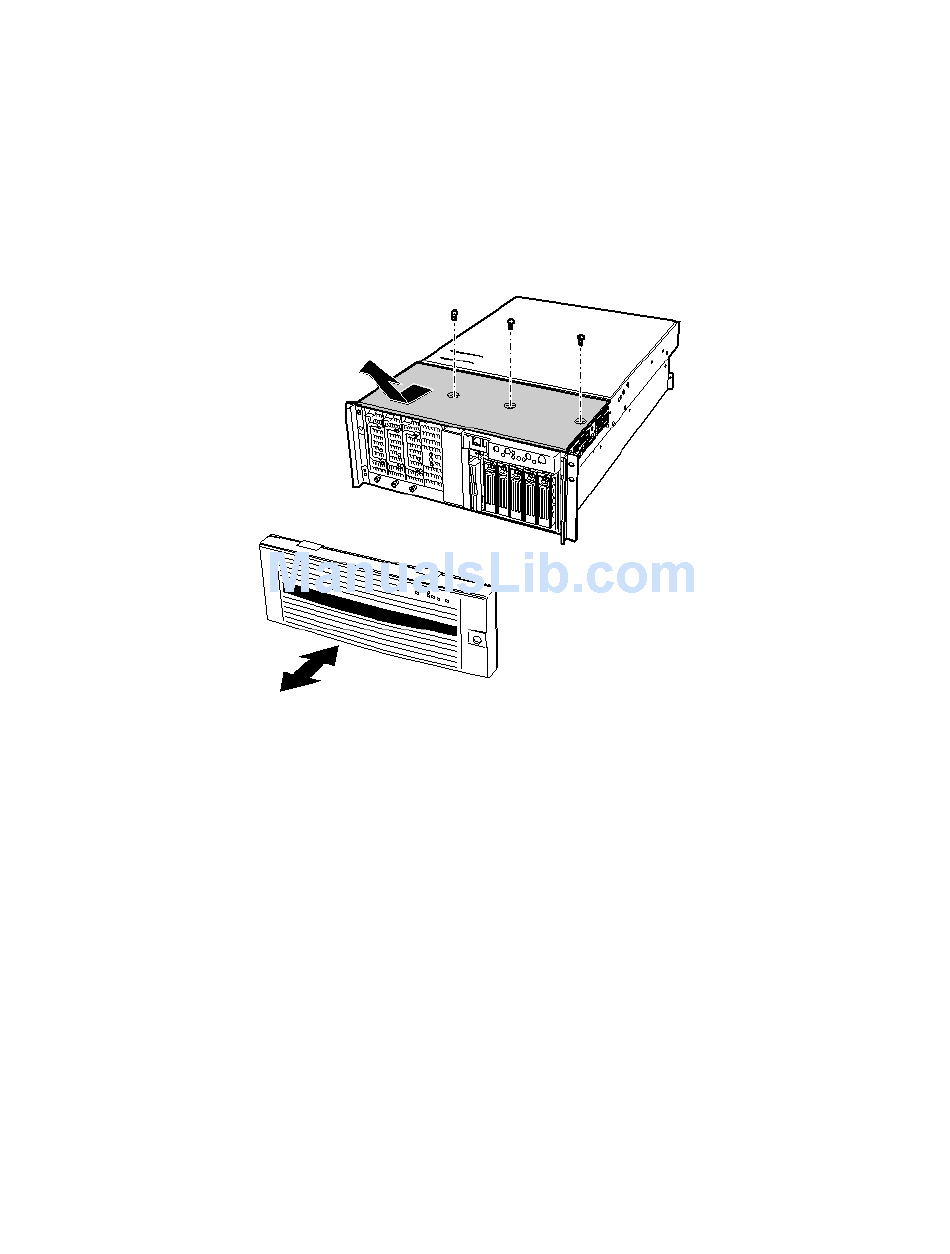

Figure 4. Removing the Front Access Cover

30
