Removing the Access Cover to the System Boards
To remove the access cover to the system boards:
1. Remove the rear access cover (page 29).
2. Loosen the two captive screws located at the front of the access cover to the system boards
(Figure 5).
3. Lift the end of the cover where the screws are located and remove the cover.
Installing the Access Cover to the System Boards
To install the access cover:
1. Orient the access cover with the captive screws toward the front of the server.
2. Insert the tabs on the rear of the cover into the slots at the rear of the chassis.
3. Press down gently and tighten the captive screws at the front of the cover.

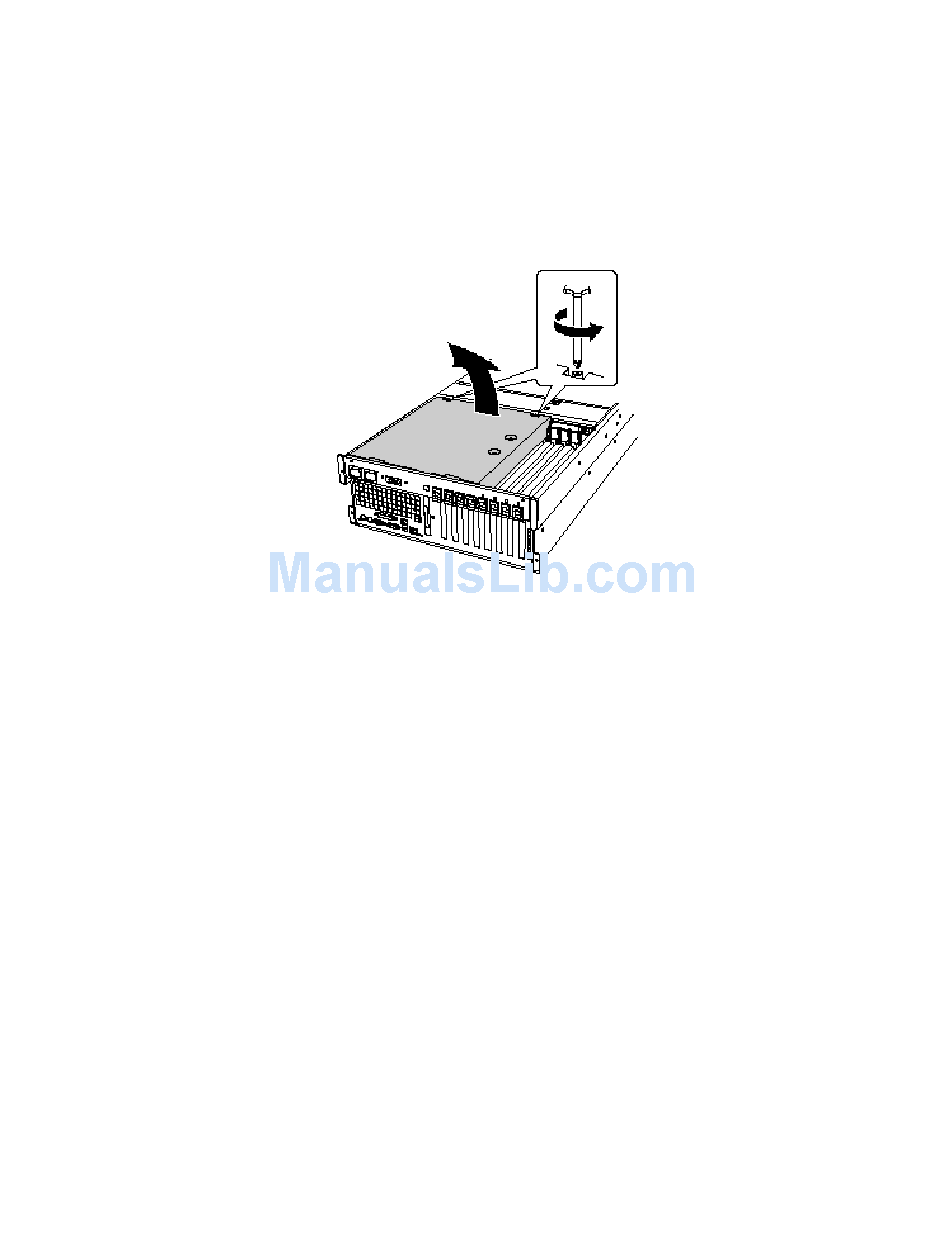

Figure 5. Removing the Access Cover to the System Boards
32
