Cooling System Fans

The server accommodates six hot-swap fans.
CAUTION
Don't remove a fan while the server is powered on unless you have a
replacement unit available. Once you remove an individual fan from the
system, replace it within five minutes. Vacant spaces alter airflow patterns in
the server system and can cause overheating and damage to system
components.

Checking a Fan Status Indicator

A fan status indicator is adjacent to each fan module (Figure 33). The indicators are triangular in
shape and point to their respective modules. When a fan is not functioning normally, the indicator is
illuminated; otherwise, the indicator is not illuminated. A fan failure is also indicated by the general
system fault LED located on the front panel.
Installing and Removing Components
A
Fan status indicator

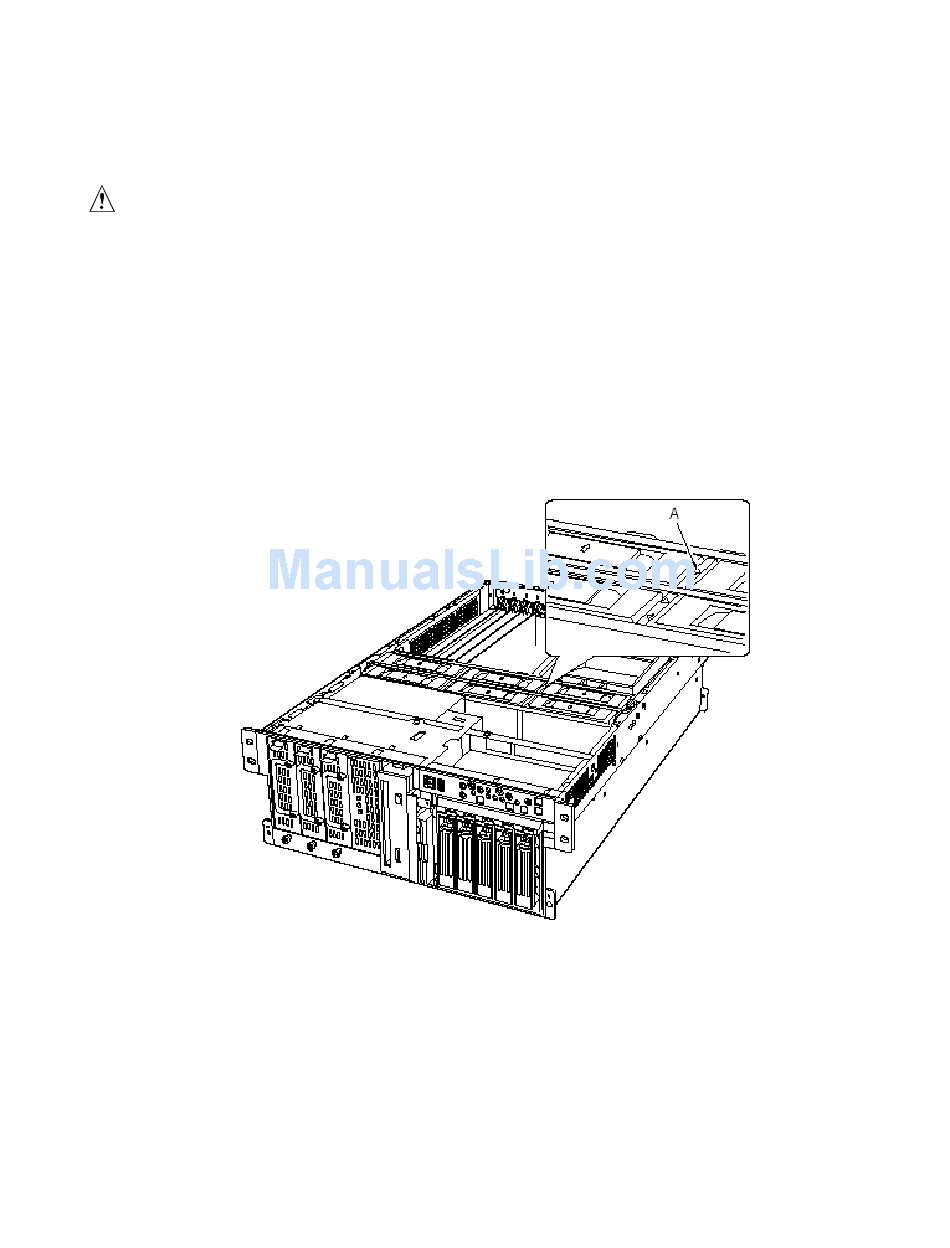

Figure 33. Fan Status Indicator

63
