Table 5 lists the LED states and the drive status indicated by each state.
Table 5. LED States for Hot-Swap SCSI Drive Status
LED State
Solid green
Flashing green
Solid yellow
Flashing yellow
Off

Installing a Hot-Swap Drive in a Carrier

Before you can install a drive in the hot-swap drive bay, you must install the drive into a drive
carrier. To install a hot-swap drive in a carrier:
1. If the plastic air baffle is installed in the carrier, remove the four screws that attach the air baffle
to the carrier. Save the air baffle in case you later remove a drive.
2. Remove the hard drive from its wrapper and place it on an antistatic surface.
3. Record the new drive model and serial number in your equipment log.
Status
The hard drive is present and powered on.
The hard drive is active.
There is an asserted fault status on the hard drive.
A rebuild of the hard drive is in progress.
The hard drive is not powered on.

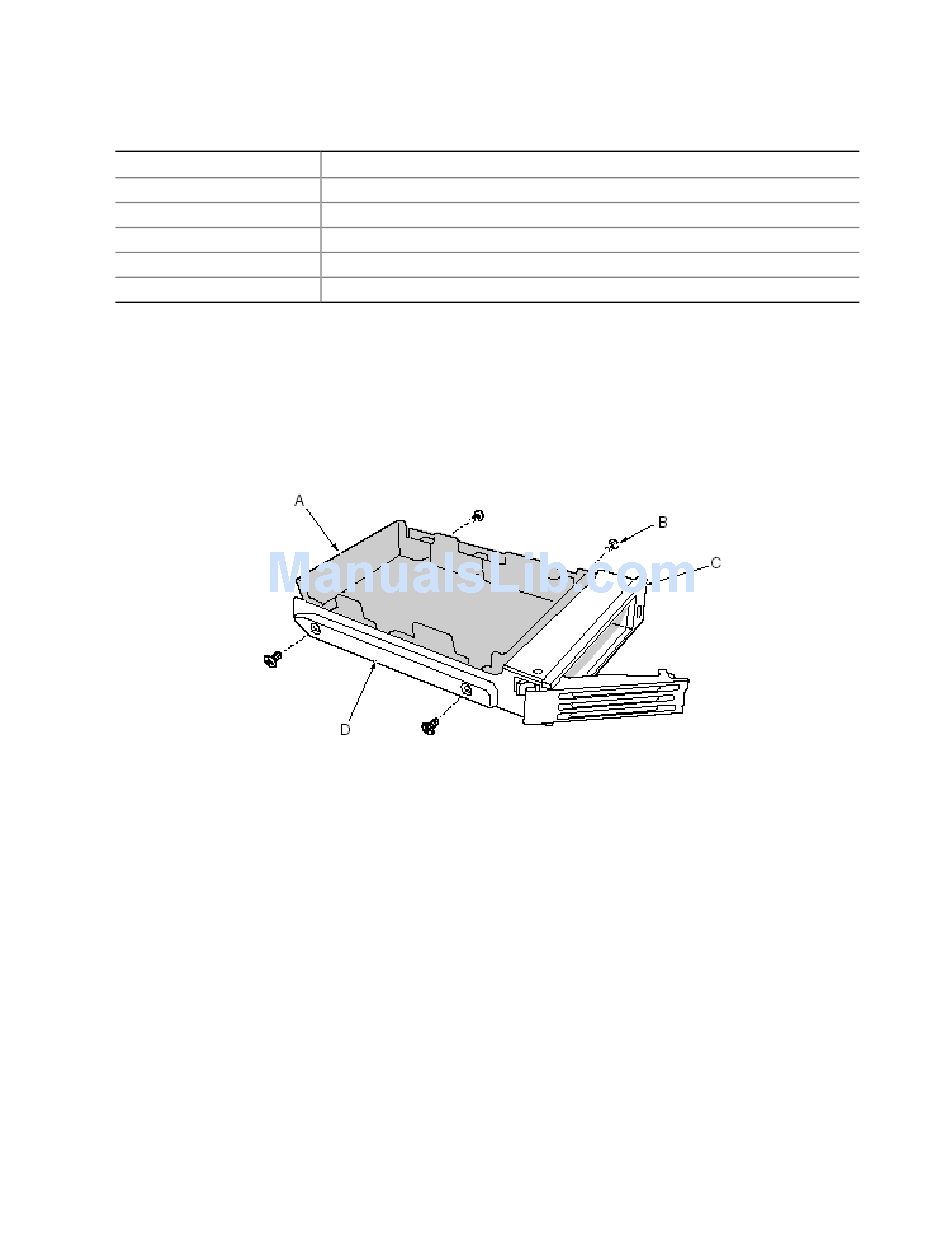

A Air Baffle
B Screw

Figure 22. Removing a Plastic Air Baffle from a Carrier

C Carrier
D Plastic rail
