4. Place the drive in the carrier with the component side down.
5. Using the four screws removed earlier, attach the drive to the carrier.

Removing a Hot-swap Drive from a Carrier

To remove a hot-swap drive from a carrier:
1. Remove the carrier and drive from the drive bay.
2. Remove the four screws that secure the drive to the carrier.
3. Place the drive on an antistatic surface.
4. If you are going to reinstall the carrier without a drive, you must first replace the air baffle in the
carrier (Figure 22).
Installing and Removing Components
A SCA Connector
B Drive
C Carrier

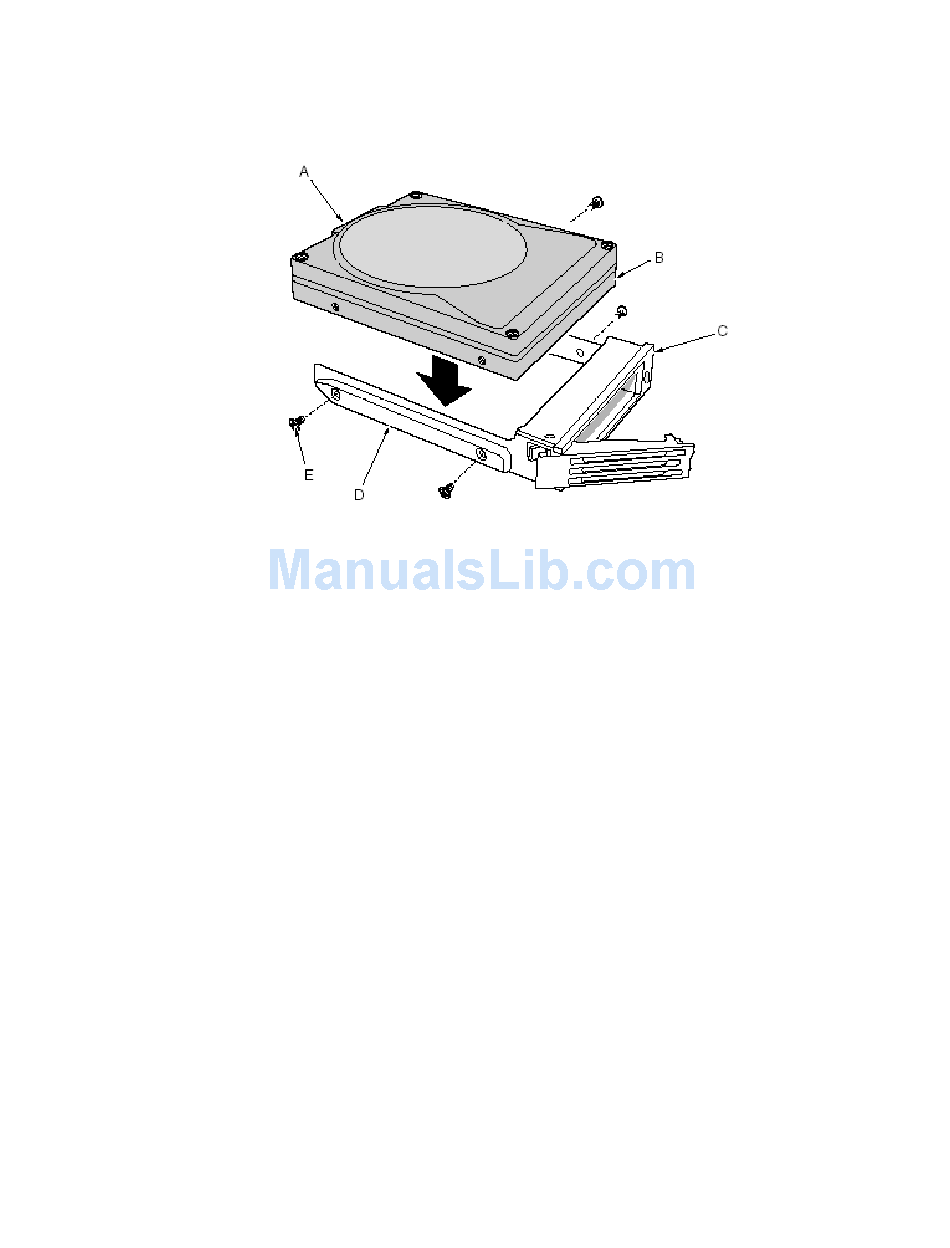

Figure 23. Installing a SCSI Hard Disk Drive in a Carrier

D Plastic Rail
E Screw
51
