Removing the Processor Board Air Baffle

To remove the processor board air baffle:
1. Remove the screw holding the dual power receptacle (located at the top left rear of the chassis)
and pull it clear of the chassis as far as the attached cords will allow (Figure 8, A and B).
2. At the end of the air baffle closest to the rear of the chassis, press the two tabs toward each other
(Figure 8, D) and raise the end, rotating the baffle about 30°.
3. Disengage the air baffle at the front of the electronics bay and remove the baffle from the
chassis.
Installing and Removing Components
A Power receptacle screw
B Dual power receptacle

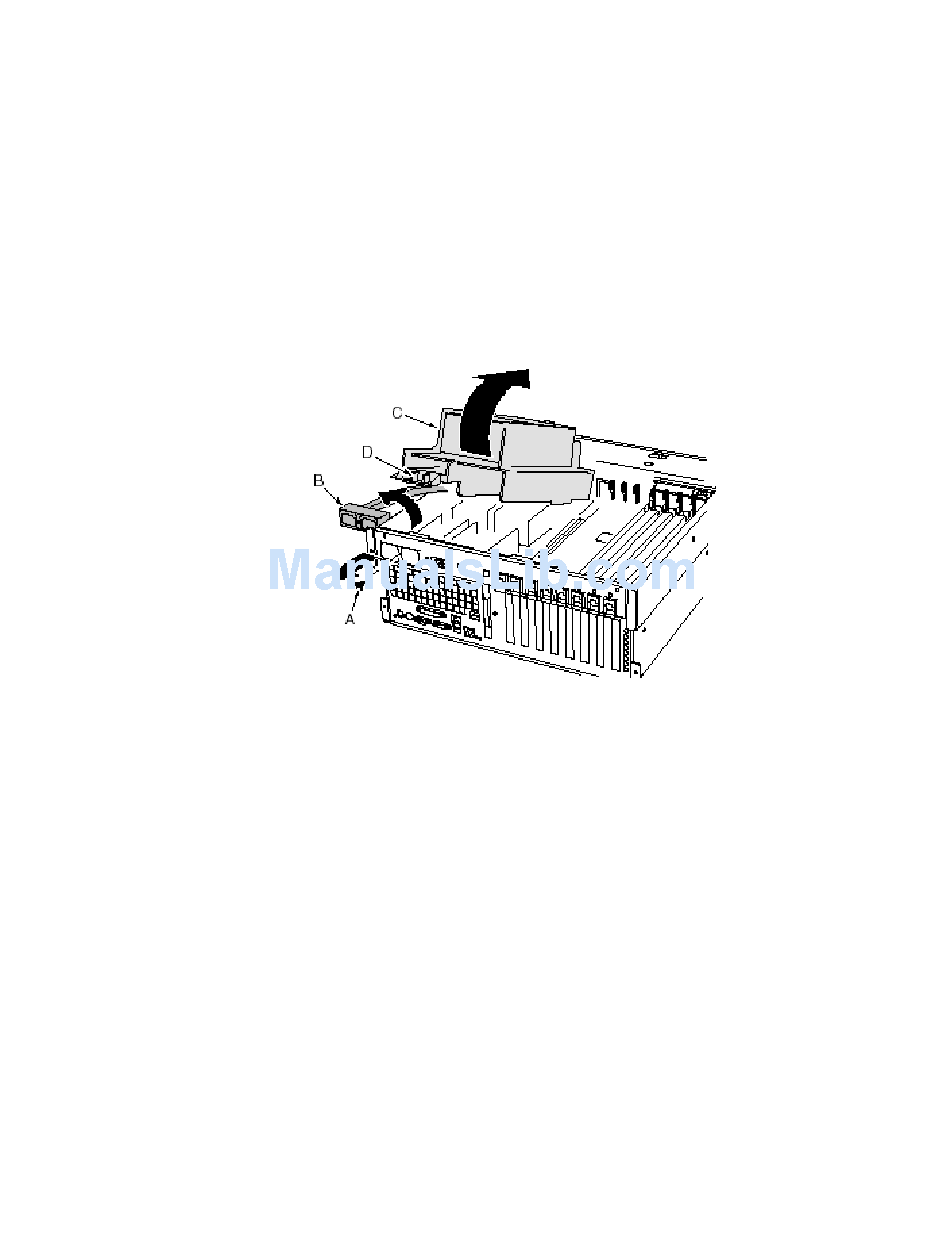

Figure 8. Removing the Processor Board Air Baffle

C Air baffle
D Release tabs on air baffle
