PCI Add-In Boards
The EXPRESS5800/140Rc-4 server supports four hot-plug PCI add-in boards and four non-hot-plug
PCI add-in boards.
A
Four hot-plug 64-Bit, 100-MHz
PCI-X add-in board slots
B
Two non-hot-plug 64-Bit, 100-MHz
PCI-X add-in board slots
CAUTION
Be sure any empty expansion slots have a slot cover installed. An open
expansion slot reduces the cooling and EMI integrity of the server and can
affect performance and cause damage due to overheating.
Operating System Support for Hot-Plug Add-In Boards
Only Windows 2000 supports hot-plugging PCI add-in boards（Windows NT4.0 does not support）
. Operating system support is provided by a driver that you must install when setting up your server.
Hot-plug drivers are available on the NEC EXPRESSBUILDER CD in the Drivers directory. The
driver files on the CD include information on installing and using the hot-plug software.
Installing and Removing Components
C
Two non-hot-plug 32-Bit, 33-MHz
PCI add-in board slots

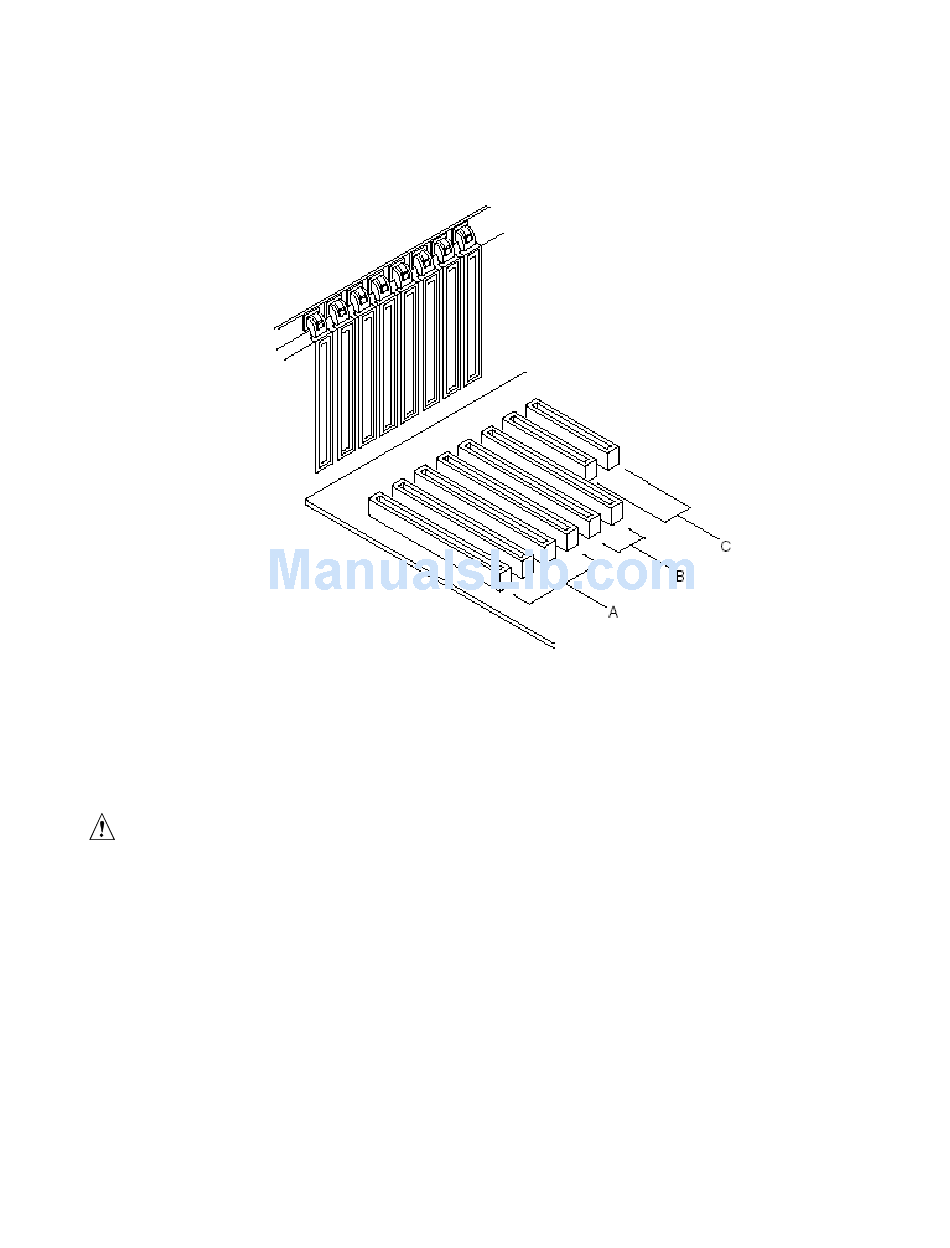

Figure 28. PCI Add-In Board Locations
57
