Installing a Device in the Media Bay

To install a device in the media bay:
1. Turn off power to the server and unplug the AC power cords from the power source.
2. Remove the bezel and the front access cover (pages 28 and 30).
3. Remove the fan assembly (page 74).
4. Slide the drive into the bay. Install the screw that attaches the drive to the bay (Figure 38, C,
above).
5. Connect the power and signal cables to the drive (Figure 38, A and B, above).
6. Install the fan assembly, front access cover, and bezel.
7. Run BIOS Setup to specify that the device is installed in the system.
Installing and Removing Components
A Power cables
B Data cables

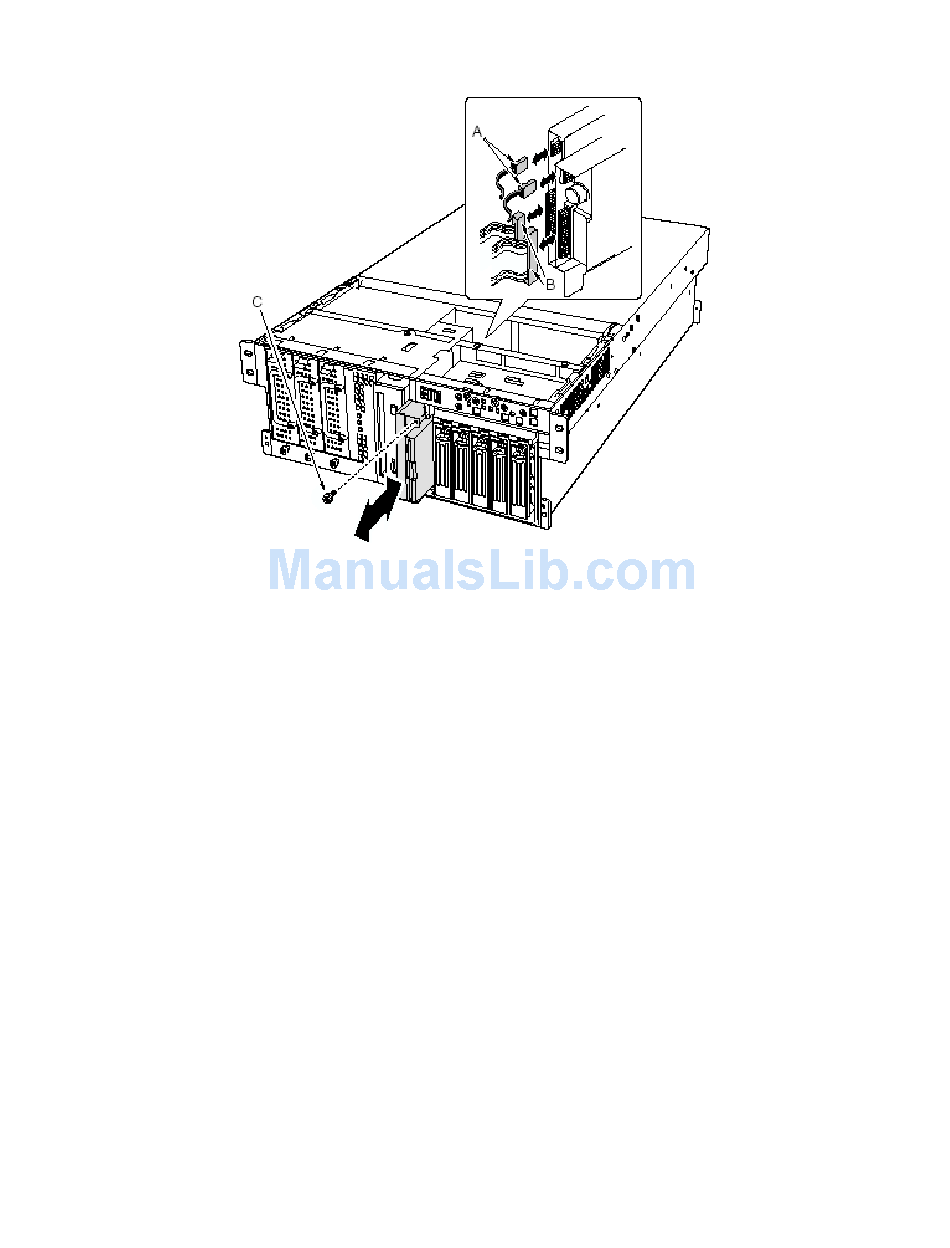

Figure 38. Removing a Device from the Media Bay

C Screw
