Enabling TX-SIB Fiber-Optic Array Adapter Receivers

134
To test and connect the fiber-optic cables to the TX Matrix router and to T640 routers,
you need the following tools and parts:
One fiber-optic array loopback connector for testing TX-SIBs and T640-SIBs
One fiber-optic array loopback adapter for testing fiber-optic array cables
Small slotted screwdriver, at least 4 in. long (for the fiber-optic array connectors)
2.5-mm ball hex driver for the fiber-optic array loopback connector and adapter
Dust-free resealable plastic bags for temporary storage of fiber-optic array adapter
dust covers
Dry cloth cleaning tool for cleaning optical components
Use a dry cloth cleaning tool, such as USConec's In-Bulkhead-Connector (I.B.C.)
Cleaning Tool (see Figure 72 on page 134).

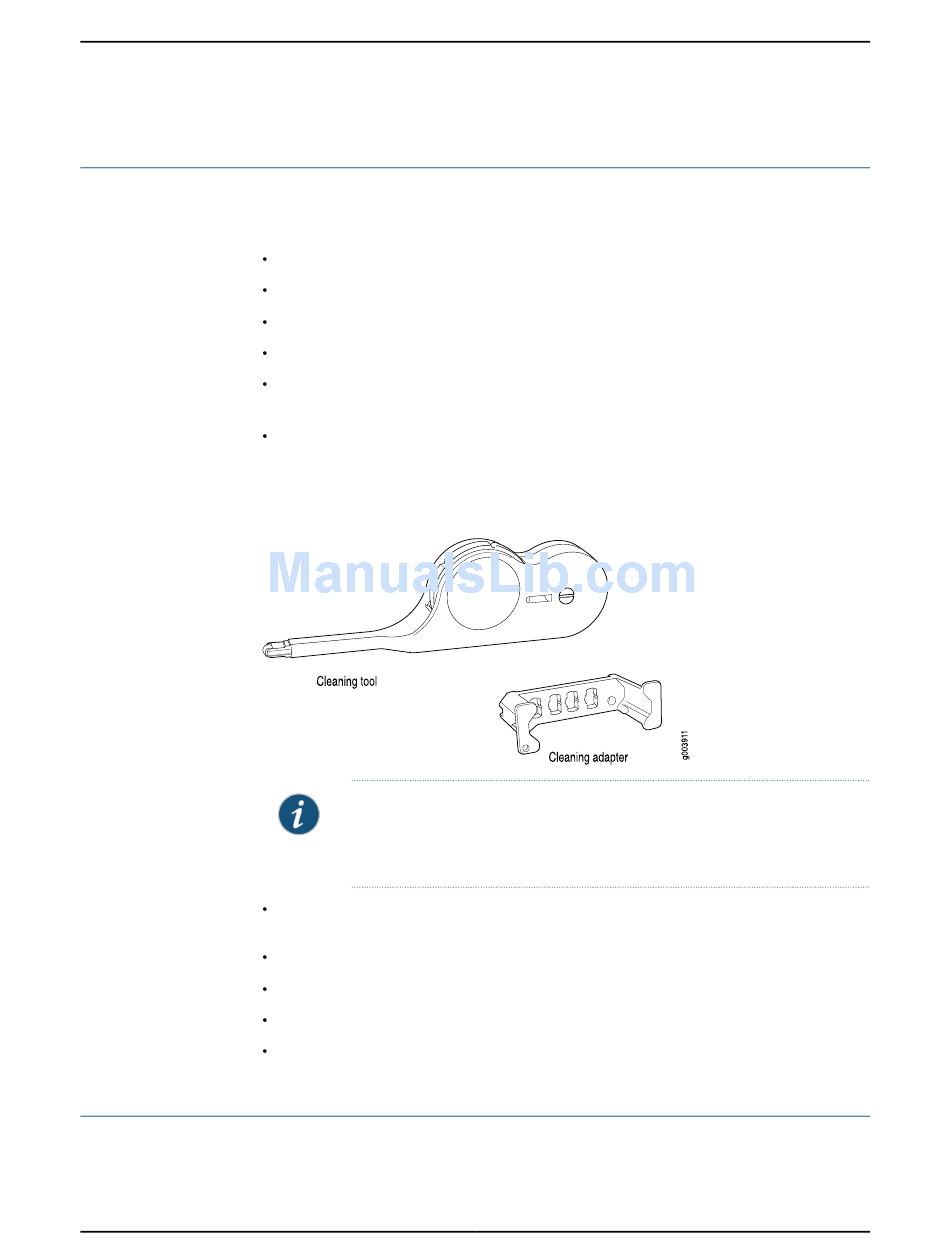

Figure 72: Cleaning Tool and Adapter

NOTE: You can order the dry cloth cleaning tool (part number 8037) and
cleaning adapter (part number 8485) from REALM Communications Group.
Call 408-203-5956.
Electrostatic discharge (ESD) grounding wrist strap
Connecting the Fiber-Optic Array Cables to the TX Matrix Router on page 137
Cleaning the TX Matrix and T640 Fiber-Optic Components Overview on page 200
Testing the TX-SIB Fiber-Optic Array Adapters on page 135
Testing the TX Matrix Fiber-Optic Array Cables on page 138
To enable the TX-SIB adapter receivers, issue the following CLI command:
