The midplane performs the following major functions:
Power distribution—The TX Matrix power supplies are connected to the midplane,
which distributes power to all the TX Matrix components.
Signal connectivity—The midplane provides signal connectivity between all TX Matrix
components for monitoring and controlling the system.
Redundancy connectivity—The midplane provides redundant paths for all critical
connections.

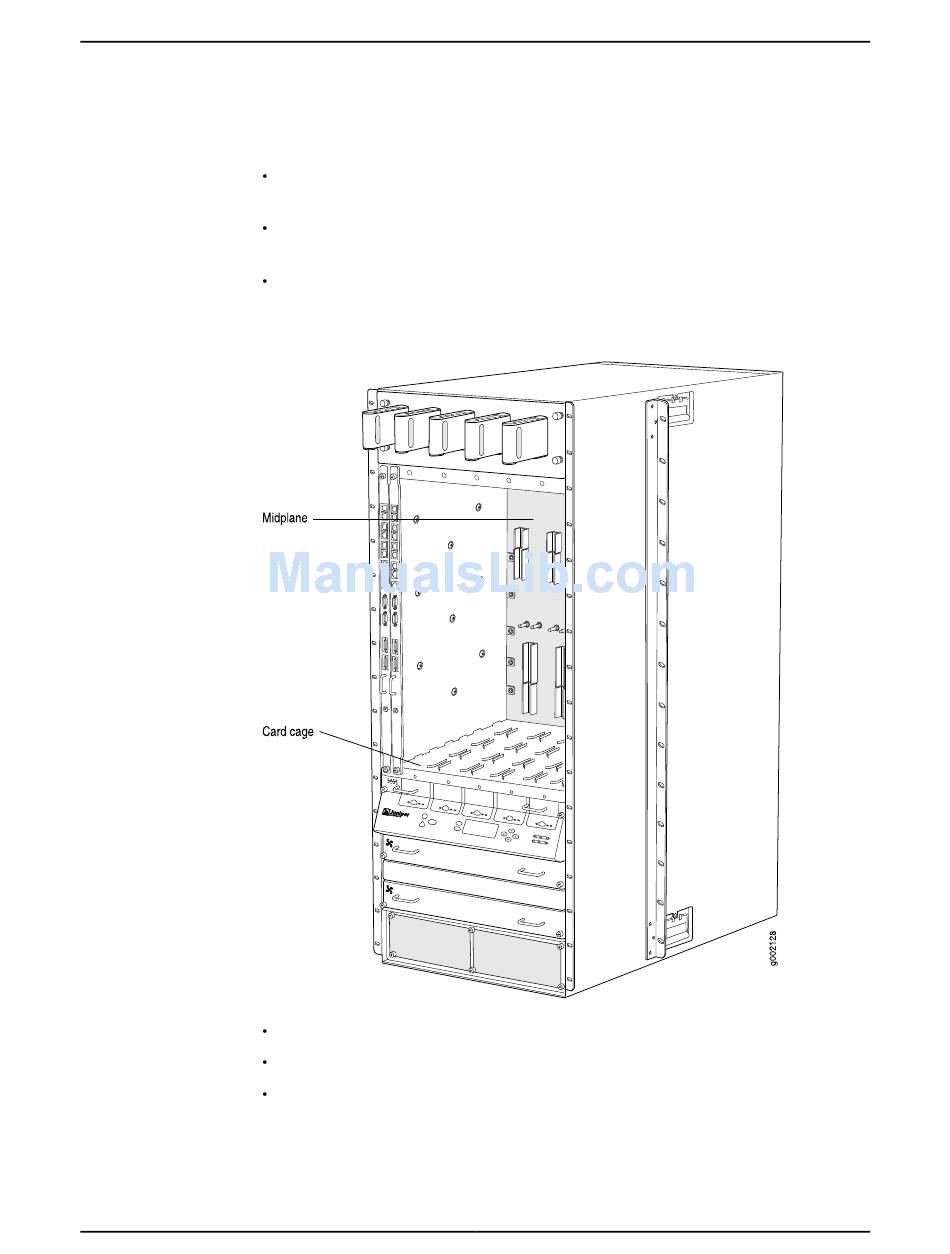

Figure 10: TX Matrix Router Midplane

TX Matrix Router Description on page 3
TX Matrix Component Redundancy on page 18
TX Matrix Switch-Card Chassis (SCC) Description on page 19
