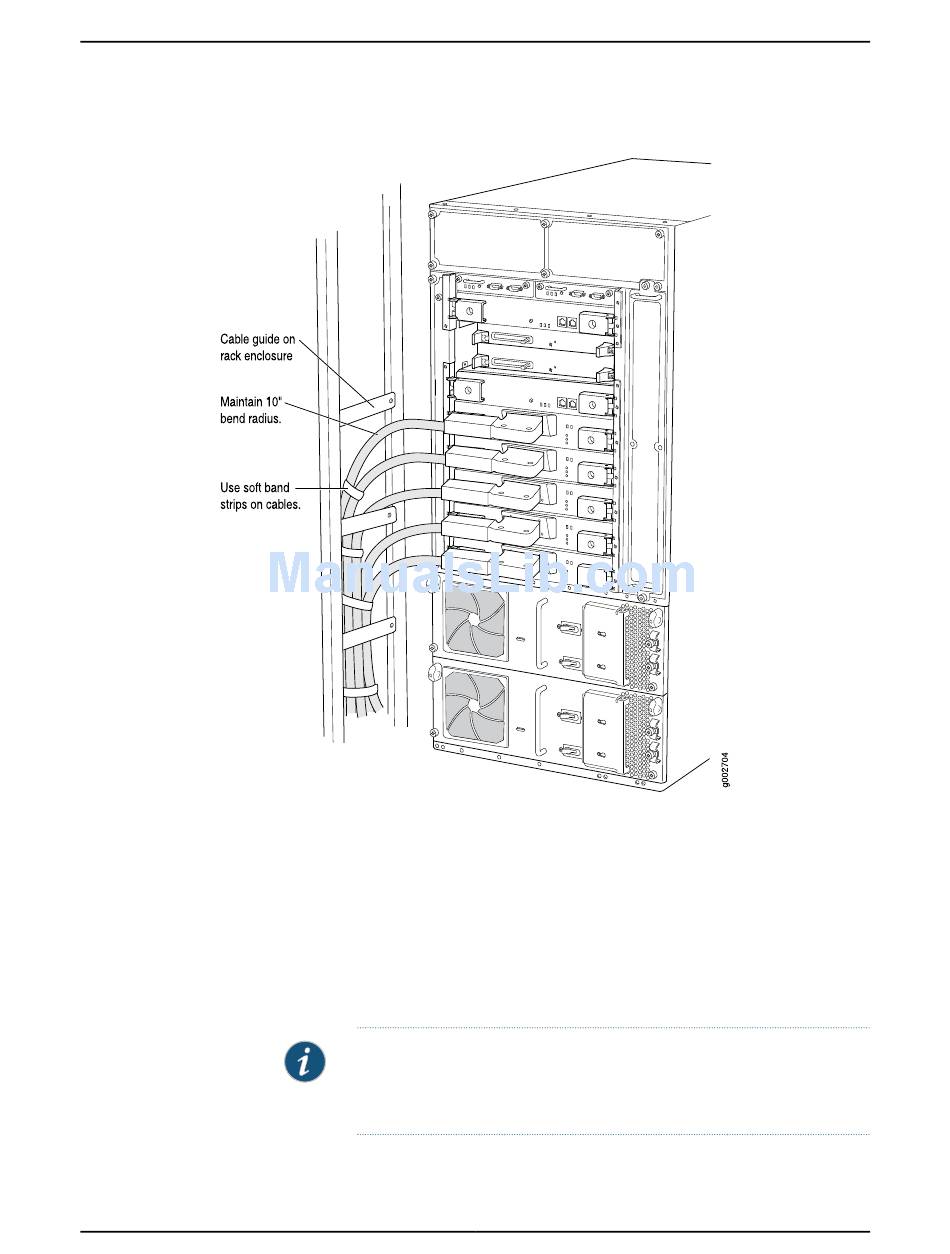

Figure 118: Maintaining a Minimum Bend Radius of 10 in. (25.4 cm)

For an illustration of airflow through the TX Matrix router and the T640 router, see
Figure 25 on page 48 and the T640 Core Router Hardware Guide.
Remove the dust covers from the fiber-optic array cable connectors. Loosen the
9.
thumbscrew and captive screw on each connector. (Use the supplied small slotted
screwdriver to loosen the captive screw.) Store the dust covers in a dust-free resealable
plastic bag.
Align the fiber-optic array cable connector with the corresponding TX-SIB adapter
10.
and carefully press it into the adapter until it stops. The cable connector and adapter
are keyed to ensure proper mating.
NOTE: The optics in a fiber-optic array adapter are spring loaded, so you
must continue to apply force to a fiber-optic array cable connector or
loopback connector while securing it to a TX-SIB or T640-SIB adapter.
