Figure 95: Removing A Front Fan Tray; Installing A Tx Matrix Front Fan Tray - Juniper TX MATRIX Hardware Manual

TX Matrix Hardware Guide

Installing a TX Matrix Front Fan Tray

236
WARNING: To avoid injury, keep tools and your fingers away from the fans
as you slide the fan tray out of the chassis. The fans might still be spinning.
When the fans stop spinning, place one hand under the fan tray to support it, and pull
4.
the fan tray completely out of the chassis.

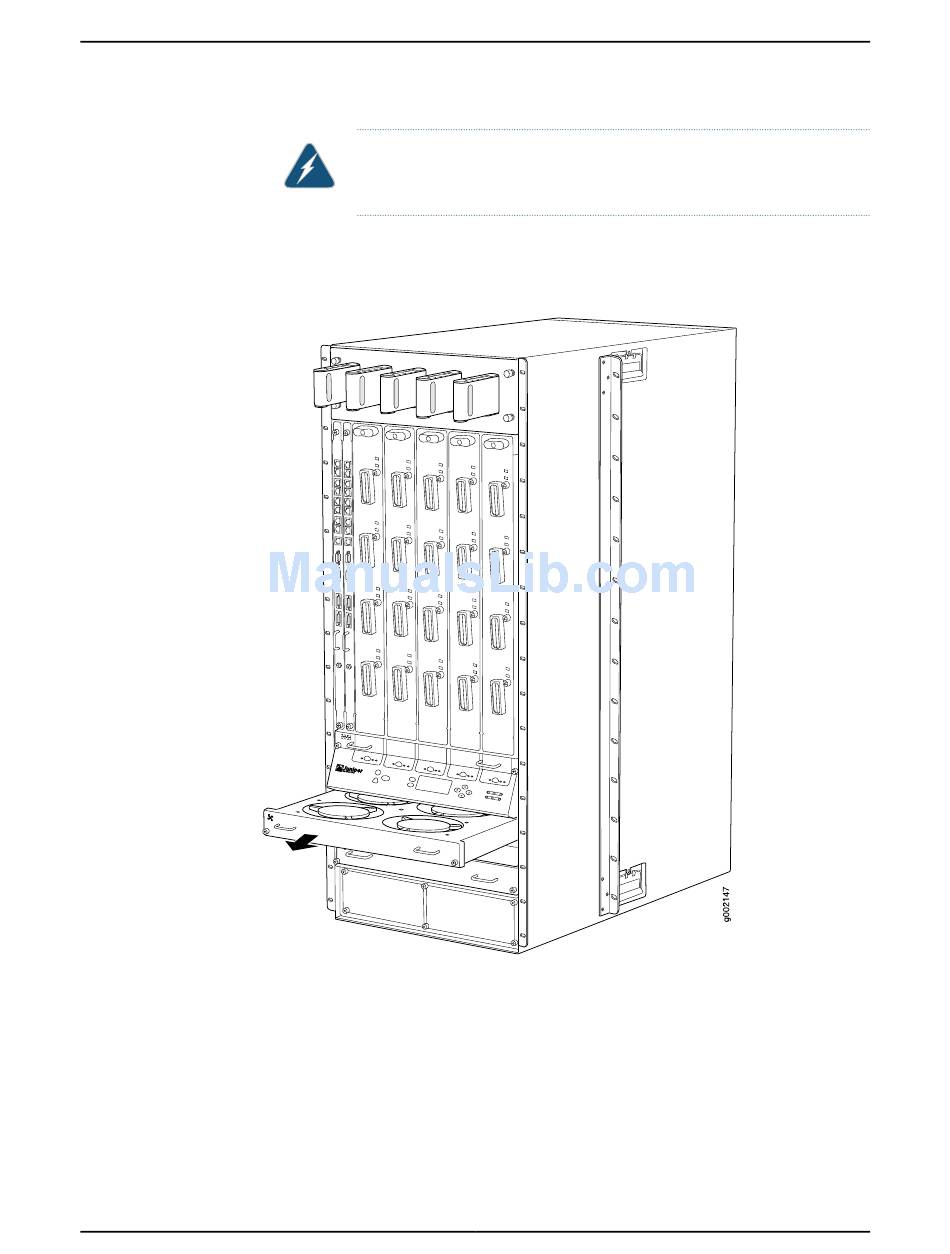

Figure 95: Removing a Front Fan Tray

To install a front fan tray (see Figure 96 on page 237):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to one of the ESD points on the chassis.
Grasp the fan tray by its handles, and insert it straight into the chassis.
2.
Tighten the captive screws on each side of the fan tray faceplate to secure it in the
3.
chassis, using a Phillips (+) screwdriver, number 2.
