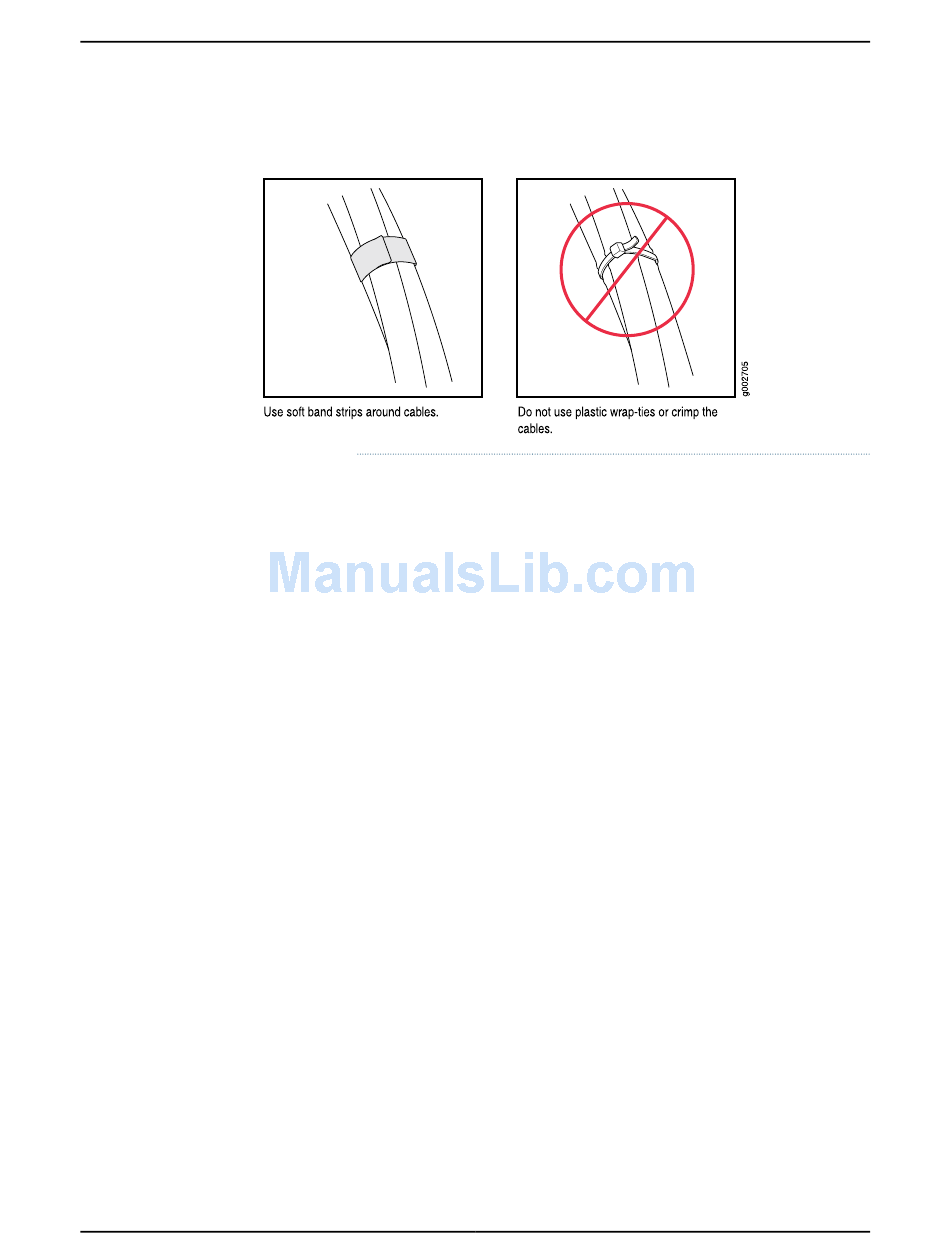

Figure 61: Using Soft Band Straps to Secure Fiber-Optic Array Cables

Grasp the metal cover on the comb within the comb panel assembly that extends
3.
over the TX-SIB you will be connecting. Firmly pull the cover away from the chassis
until it is removed from the comb (see Figure 63 on page 115).
While aligning the fiber-optic array cable connector with its corresponding TX-SIB
4.
adapter, route the cable upward along the comb tooth and press it into the tooth. Use
the tooth closest to the chassis to support a cable destined to any TX-SIB adapter
labeled , use the next tooth away from the chassis to support a cable destined
LCC0
to any TX-SIB adapter labeled
Reinstall the metal cover on the comb by firmly pressing it toward the chassis until it
5.
stops.
Route the end of the fiber-optic array cable that plugs into the T640-SIB to the lower
6.
rear of the T640 router.
Dress the fiber-optic array cable so it does not interfere with system airflow and
7.
maintenance access (see Figure 62 on page 114).
Chapter 13: Routing the Fiber-Optic Array Cables
LCC1 , and so on (see Figure 64 on page 116).
