TX Matrix Hardware Guide

TX Matrix Control Board (TX-CB) LEDs

Related
Documentation

TX Matrix Craft Interface Overview

TX Matrix Craft Interface Overview
34
Table 8 on page 34 describes the functions of the LEDs on the faceplate of the TX-CB.

Table 8: TX-CB LEDs

Label Color
MASTER Blue
FAIL Yellow
OK Green
TX Matrix Host Subsystem Description on page 25
TX Matrix Host Subsystem LEDs on the Craft Interface on page 37
TX Matrix Control Board (TX-CB) Description on page 32
TX Matrix Craft Interface Overview on page 34
Craft Interface Front Panel on page 34
TX-SIB Online/Offline Buttons on page 35
LCD display and Navigation Buttons on page 35

Craft Interface Front Panel

The craft interface allows you to view status and troubleshooting information at a glance
and to perform many system control functions. It contains LEDs, buttons, and an LCD
display showing status messages for the TX Matrix router. The craft interface is located
on the lower front of the TX Matrix router below the air filter. It is hot-insertable and
hot-removable.

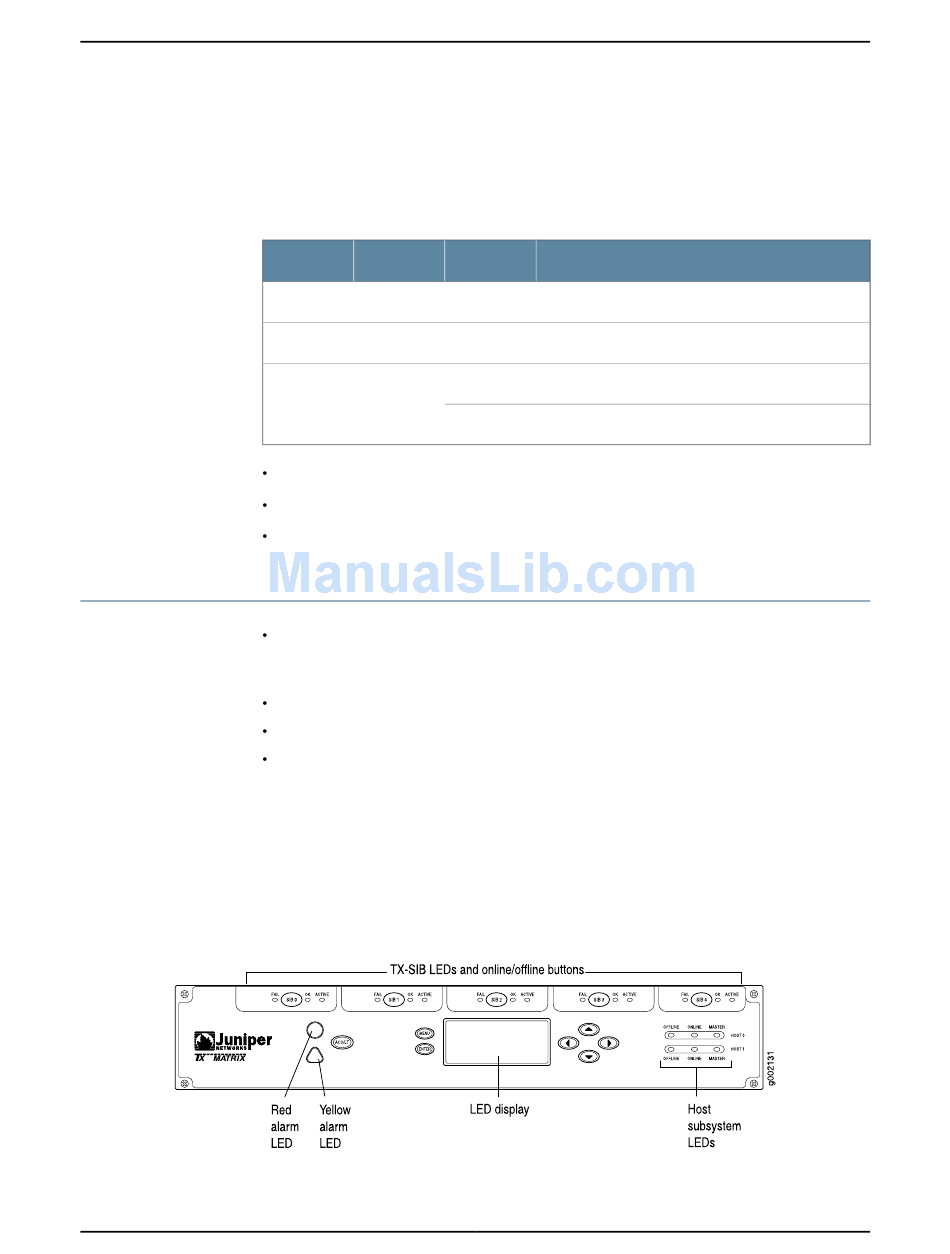

Figure 16: Front Panel of the Craft Interface

State Description
On steadily Control board is functioning as the master.
On steadily Control board has failed.
On steadily Control board is online and is functioning normally.
Blinking Control board is powering up, but not online.
Copyright © 2010, Juniper Networks, Inc.
