TX Matrix Component Serial Number Locations

TX Matrix Chassis Serial Number Label

Copyright © 2010, Juniper Networks, Inc.
Appendix F: Contacting Customer Support and Returning TX Matrix Hardware
FPM GBUS REV 02
FPM Display REV 02
CIP REV 05
PEM 0 Rev 03
SCG 1 REV 04
Routing Engine 0 REV 10
Routing Engine 1 REV 01
CB 0 REV 06
CB 1 REV 06
FPC 2 REV 05
CPU REV 14
PIC 0 REV 01
PIC 1 REV 01
PIC 2 REV 01
PIC 3 REV 01
MMB 0 REV 02
MMB 1 REV 02
PPB 0 REV 04
PPB 1 REV 04
SPMB 0 REV 02
SPMB 1 REV 02
SIB 0 REV 01
SIB 1 REV 01
SIB 2 REV 01
SIB 3 REV 01
SIB 4 REV 01

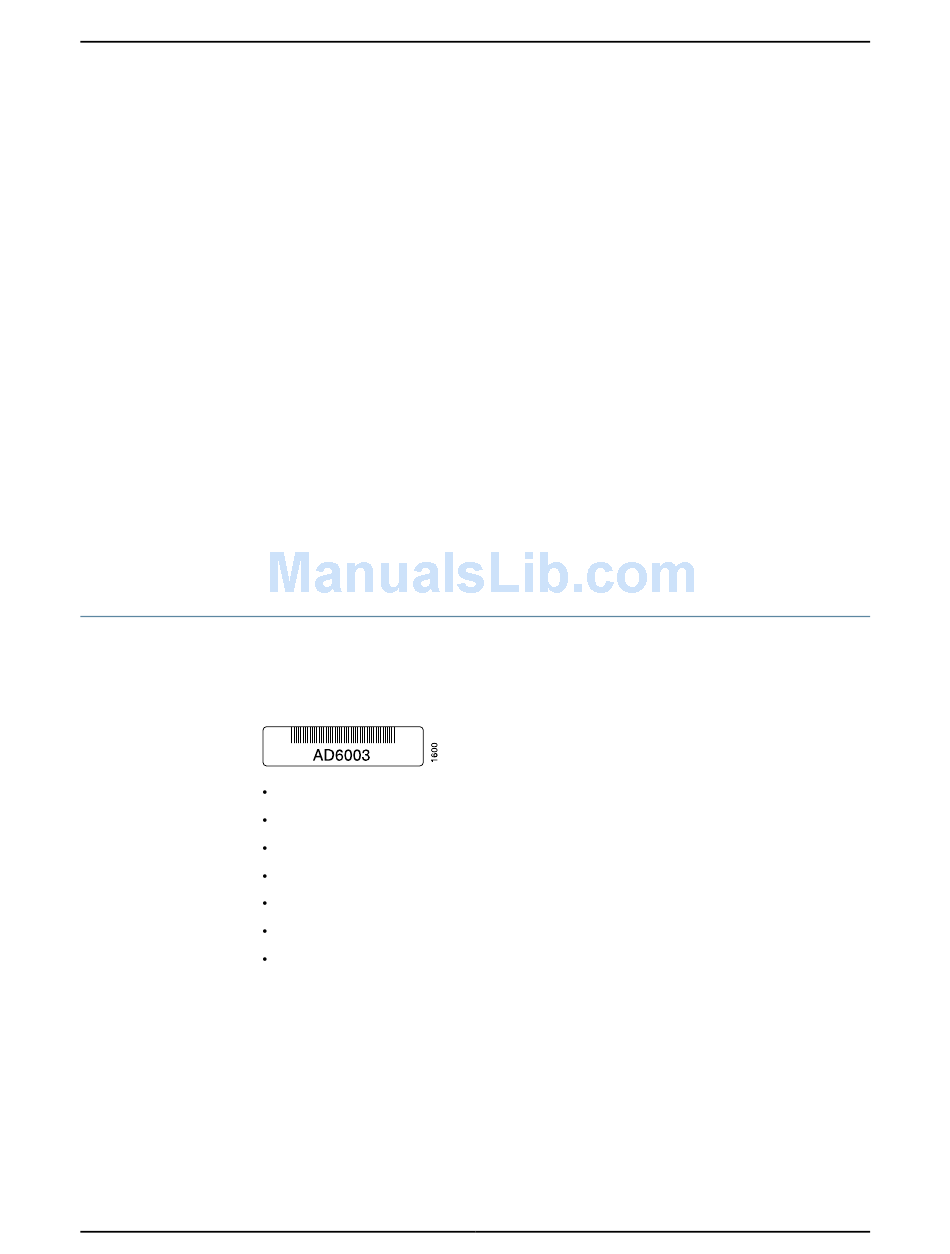

Most components have a small rectangular serial number ID label (see Figure 148 on
page 351) attached to the component body.

Figure 148: Serial Number ID Label

TX Matrix Chassis Serial Number Label on page 351
TX-CB Serial Number Label on page 352
TX-CIP Serial Number Label on page 352
Craft Interface Serial Number Label on page 353
Power Supply Serial Number Label on page 353
Routing Engine Serial Number Label on page 354
TX-SIB Serial Number Label on page 354
The chassis serial number is located on the side of the chassis (see Figure 149 on page 352).
710-002901 HE3247
710-002897 HA4866
710-002895 HC0472
740-002595 MJ10270
710-003423 HF6033
740-005022 P10865702813
740-005022 210928800105
710-002728 HE3624
710-002728 HE3616
710-007529 HL7801
710-001726 HJ7092
750-004535 HC0745
750-004535 HD5424
750-004535 HD5552
750-004535 HD5416
710-005555 HL7303
710-005555 HL7167
710-002845 HM4429
710-002845 HM4433
710-003229 HF6877
710-003229 HD5513
710-005157 HJ9026
710-005157 HJ4791
710-005157 HJ4774
710-005157 HJ4792
710-005157 HJ4793
Power Entry Module
RE-3.0
RE-3.0
FPC Type 3
1x OC-192 SM SR1
1x OC-192 SM SR1
1x OC-192 SM SR2
1x OC-192 SM SR1
MMB-288mbit
MMB-288mbit
PPB Type 3
PPB Type 3
SIB-I8-F16
SIB-I8-F16
SIB-I8-F16
SIB-I8-F16
SIB-I8-F16
