Figure 53. Installing Ide Dom; Figure 54. Lowering Left Side Of Drive Tray Assembly - Intel SS4200-E - Entry Storage System NAS Server User Manual

7. Ensure the raised notch on the new IDE DOM is aligned with the notch opening on
the primary IDE connector on the server board (see letter "A" in the following figure).
Install the new IDE DOM (see letter "B"). Connect the power cable to the IDE DOM
(see letter "C").
8. Return the left side of the drive tray assembly to its operational position (see letter
"A" in the following figure).
9. Re-install the enclosure cover. For instructions, see
on page
10. Reconnect all peripheral devices and the AC power cord. Power up the storage
system.
Intel® Entry Storage System SS4200-E User Guide

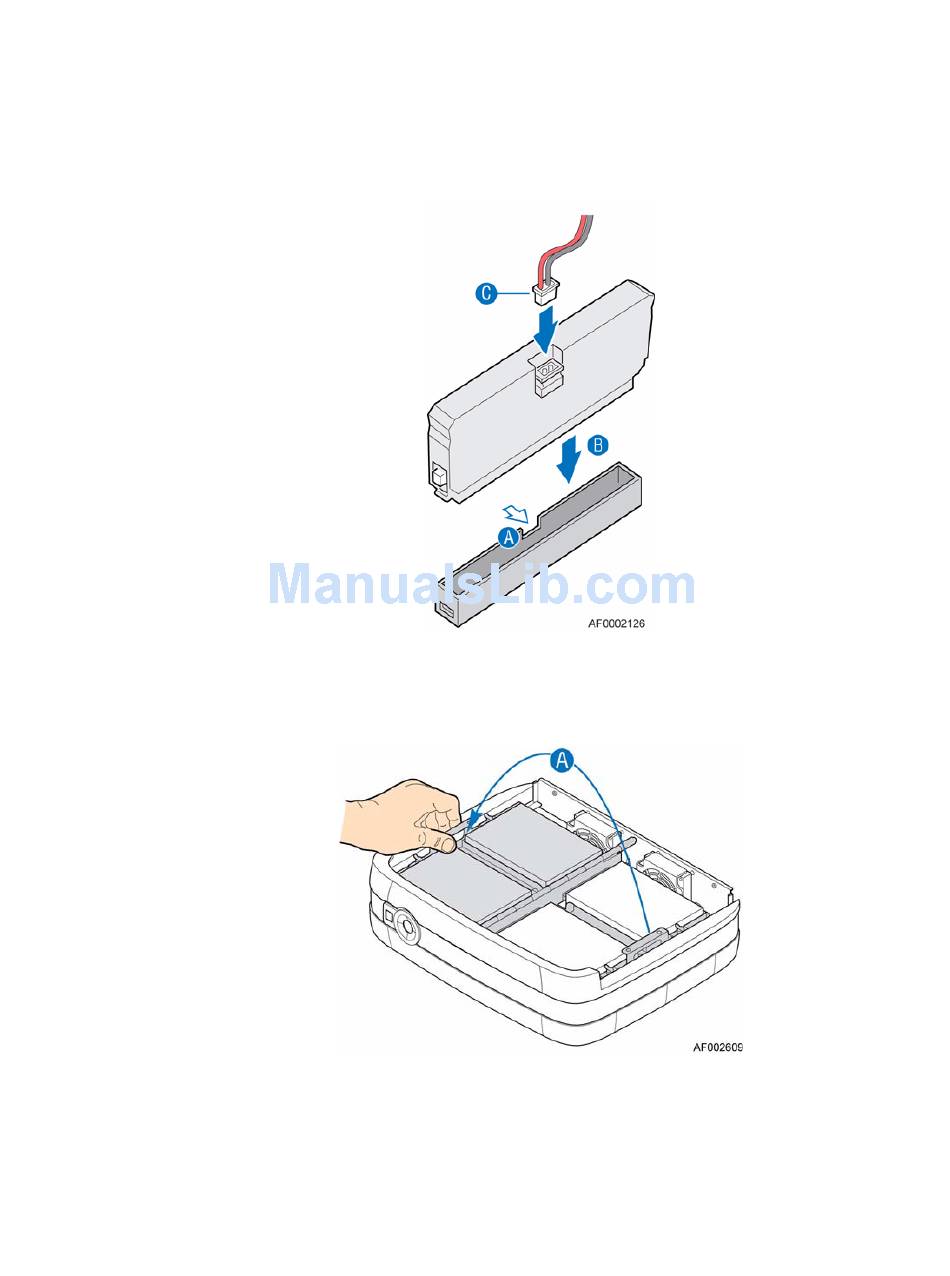

Figure 53. Installing IDE DOM

Figure 54. Lowering Left Side of Drive Tray Assembly

21.
Hardware Installations and Upgrades
"Installing the Enclosure Cover"
49
